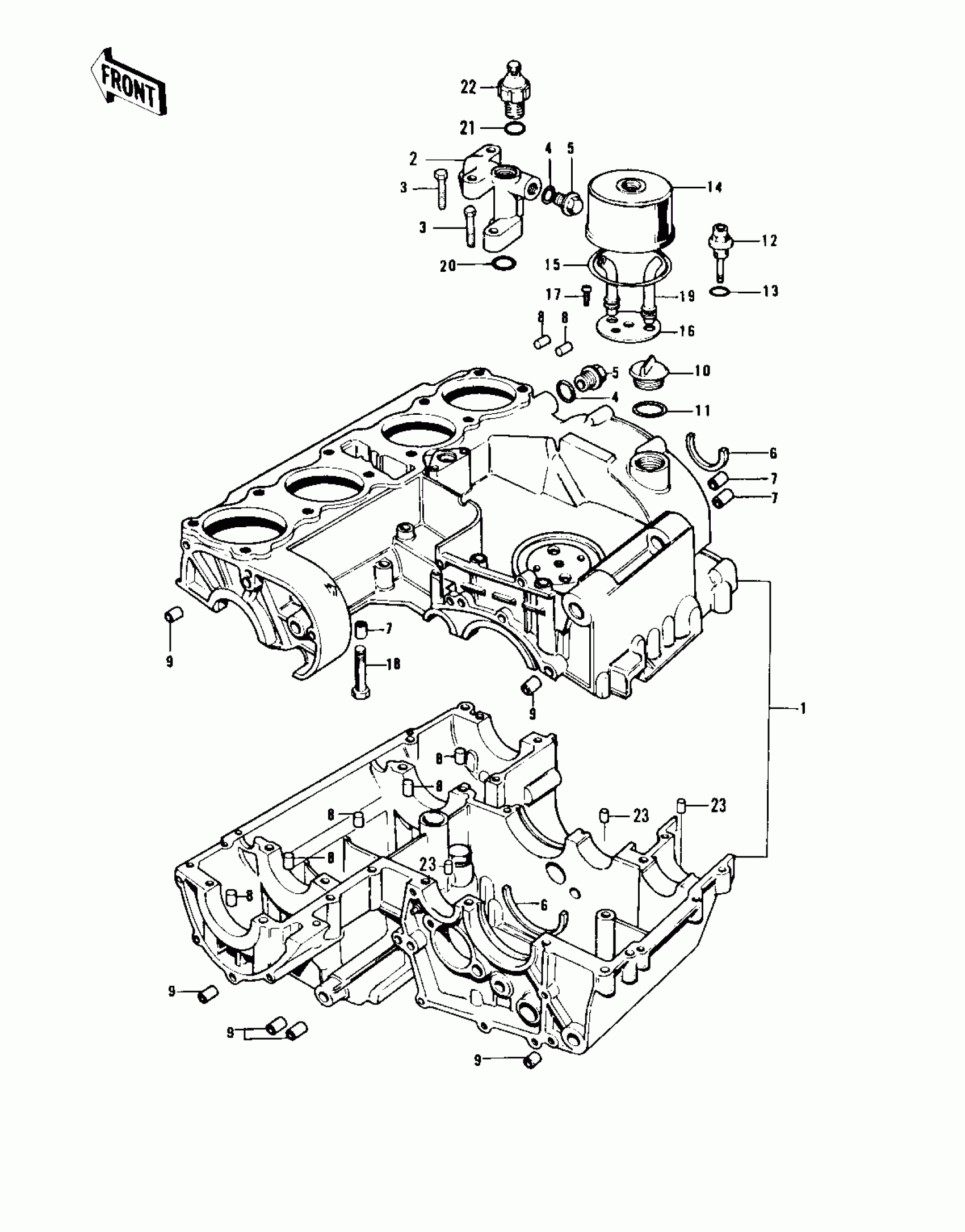

Kawasaki LTD CRANKCASE/BREATHER COVER Diagram

#

Description
Price

1

CRANKCASE SET

14001-5025

Unavailable

1

CRANKCASE SET

14001-5025

Unavailable

1

CRANKCASE SET

14001-5025

Unavailable

2

PIPE

16109-003

Unavailable

3

BOLT,HEX HEAD,6X35

92001-164

$4.96

4

O RING,15MM

670B2015

$1.08

5

PLUG,14X12

92066-021

$20.69

6

RING-POSITION,T=1.98

14013-1004

$3.78

7

PIN,DOWEL,10X14

92043-1037

$0.66

8

PIN,DOWEL,6X14

610A0614

$2.78

9

PIN,DOWEL,6.3X8X14

92042-007

$4.31

10

CAP-OIL FILLER

16115-013

$18.64

11

RING-O,31.5X2.6

92055-049

$3.29

12

BOLT,BREATHER FITTING

92003-098

$50.75

13

O RING,16MM

670B2016

$1.04

14

BODY,BREATHER

14070-003

Unavailable

15

RING-O,91.6X3.4

92055-052

$7.52

16

PLATE,BREATHER

14068-007

$9.25

17

SCREW PAN HEAD 6X18

220B0618

$2.79

18

BOLT,HEX HEAD,8X72

92003-107

Unavailable

19

PIPE,BREATHER PLATE

92059-118

Unavailable

20

O RING,18MM

670B2018

$1.08

21

RING-O,19.5X1.5

92055-055

$3.29

22

SWITCH,OIL PRESSURE

27010-1013

$35.59

22

SWITCH,OIL PRESSURE

27010-1013

$35.59

23

PIN,DOWEL,6X16

92042-016

$3.81
