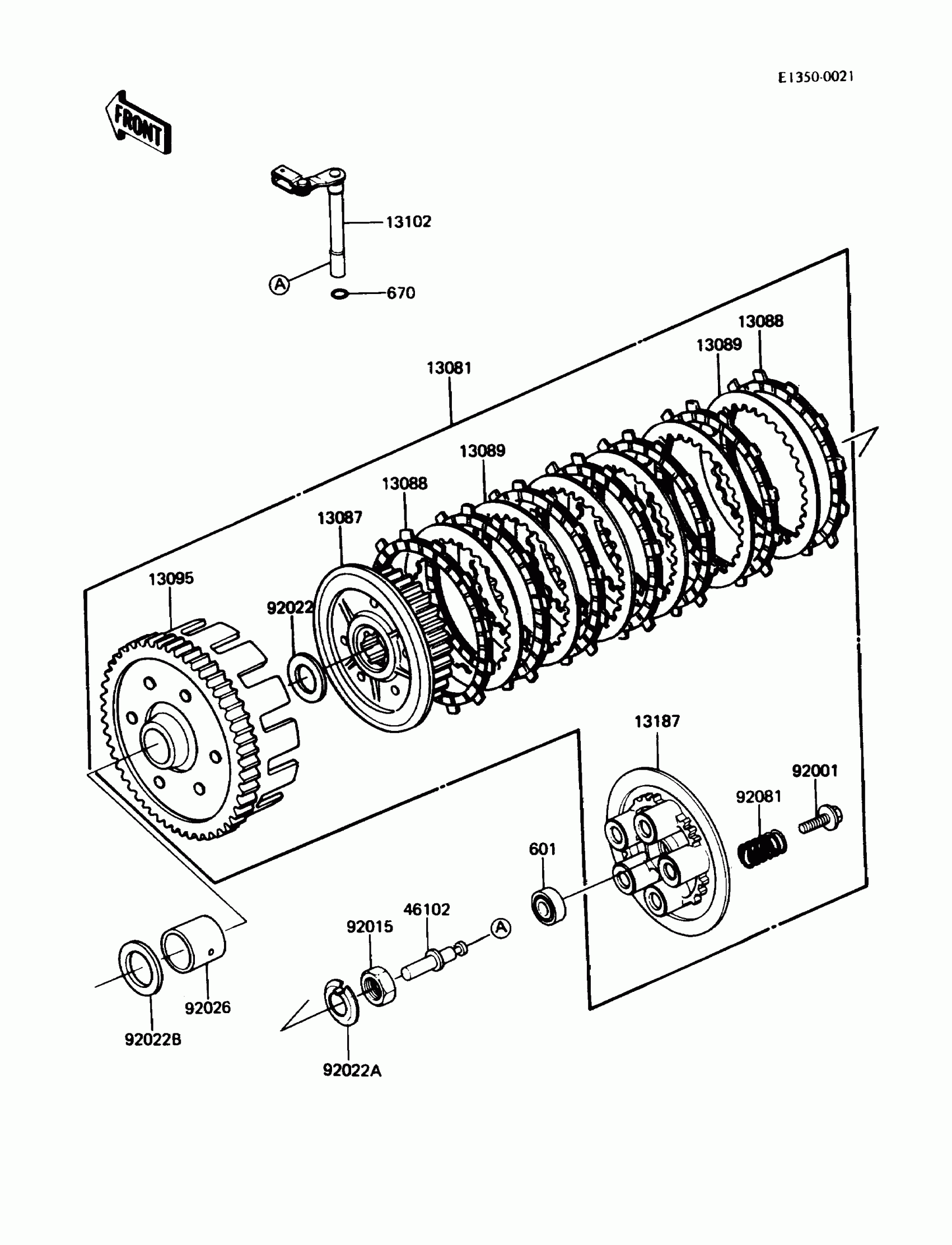

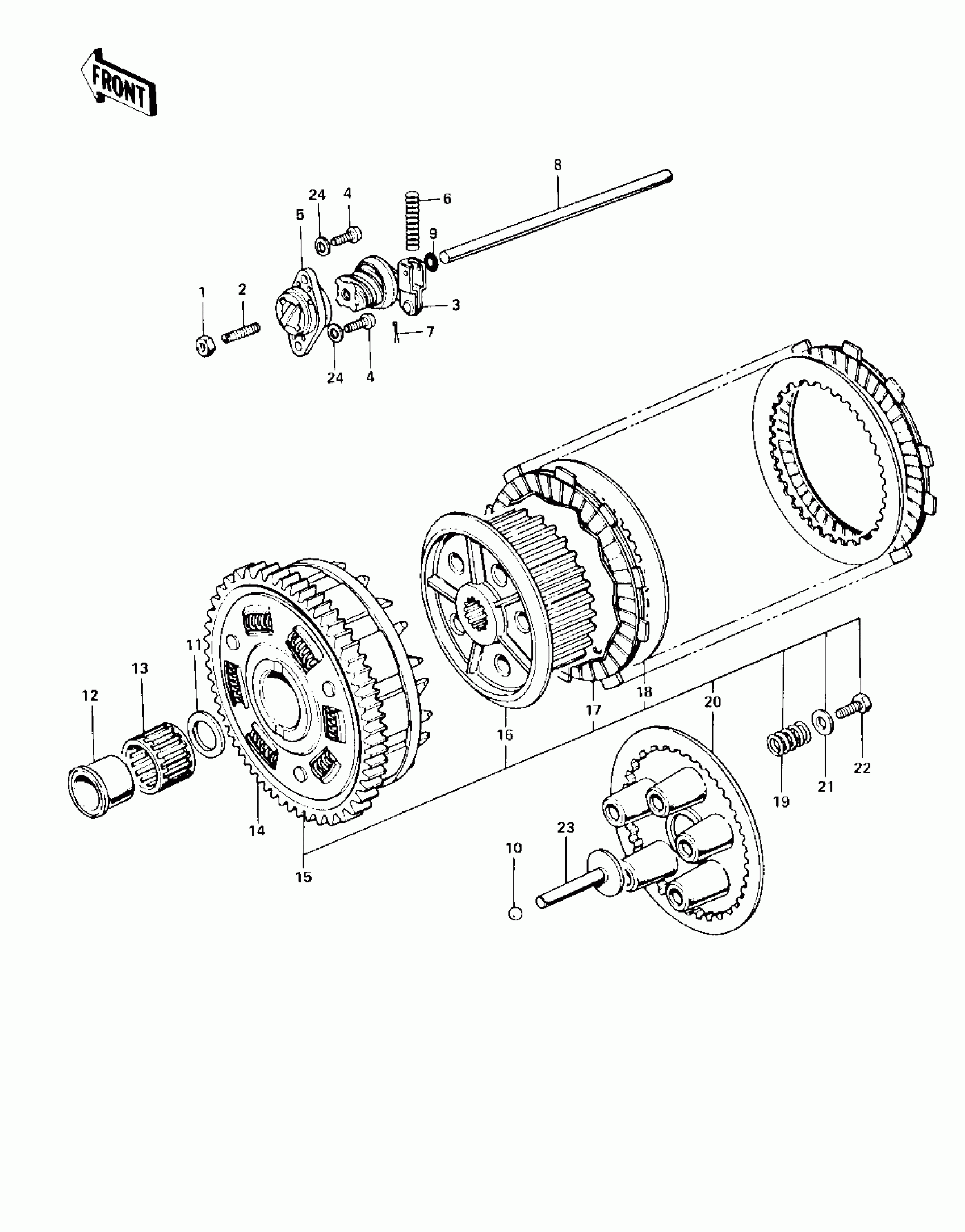

Kawasaki LTD CLUTCH Diagram

#

Description
Price

1

NUT 8MM

315B0800

$0.69

2

SCREW,SLOTTED,8X25

92014-014

Unavailable

3

INNER,CLUTCH RELEASE

13102-013

Unavailable

4

SCREW-PAN-CROS,6X16

220B0616

Unavailable

5

OUTER,CLUTCH RELEASE

13118-007

Unavailable

6

SPRING,CLUTCH RELEASE

92081-069

$5.74

7

PIN-COTTER,1.6X15

550D1615

$1.80

8

PUSH ROD,CLUTCH

13116-021

Unavailable

9

O RING,7MM

670B1507

$0.98

10

BALL-STEEL,3/8"

600A1200

$1.14

11

SPACER,25.5X47X2.5

92026-022

$9.58

12

BUSHING,CLUTCH

92028-135

Unavailable

13

BEARING-NEEDLE,KTV323723

92046-028

$19.92

14

CLUTCH-ASSY

13081-1367

Unavailable

15

CLUTCH-ASSY

13081-1014

Unavailable

16

CLUTCH-ASSY

13081-1367

Unavailable

17

PLATE,CLUTCH FRICTION

13088-030

$21.73

18

PLATE,CLUTCH STEEL

13089-022

Unavailable

19

SPRING,CLUTCH

92081-1033

$5.64

19

SPRING,CLUTCH

92081-1033

$5.64

20

PLATE,CLUTCH SPRING

13187-006

Unavailable

21

HOLDER,CLUTCH SPRING

13091-011

$5.27

22

BOLT-UPSET

112G0618

Unavailable

23

PUSHER,CLUTCH SPRG P

13116-022

Unavailable

24

WASHER PLAIN 6MM

411B0600

Unavailable
