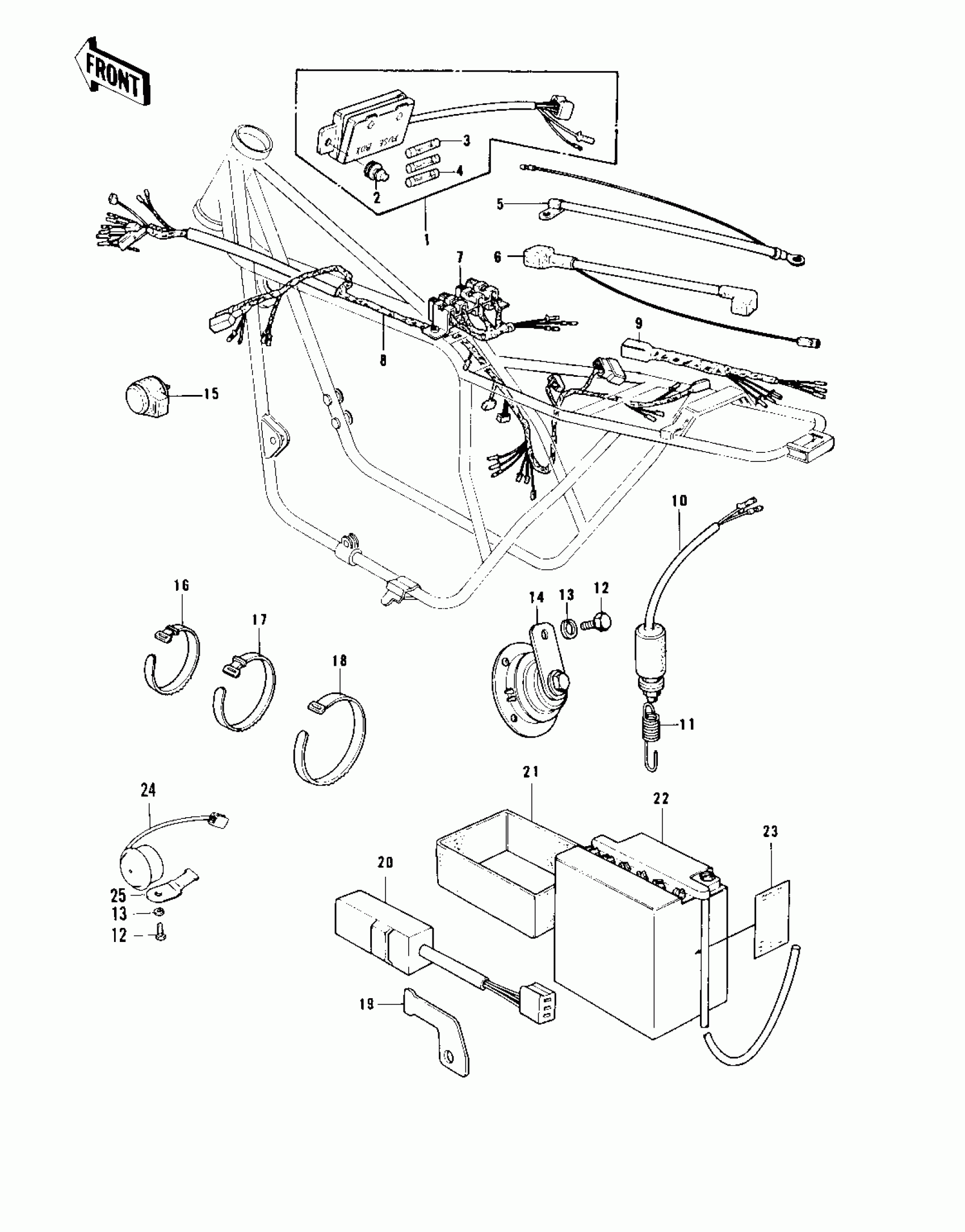

Kawasaki LTD CHASSIS ELECTRICAL EQUIPMENT Diagram

#

Description
Price

1

FUSE-ASSY

26004-035

Unavailable

2

DAMPER,FUSE

92075-279

Unavailable

3

FUSE,20A,L=25

26006-005

$3.86

4

FUSE,10A,L=25

26006-003

$3.59

5

WIRE,BATTERY GROUND

26010-054

Unavailable

6

WIRE,STARTER LEAD

26010-042

Unavailable

7

WIRING HARNESS,CENTE

26002-057

$133.37

8

WIRING HARNESS,MAIN

26001-135

$561.82

9

WIRING HARNESS,REAR

26002-031

Unavailable

10

SWITCH-BRAKE LAMP

27010-017

Unavailable

11

SPRING BRAKE LAMP SW

27011-009

Unavailable

12

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

13

WASHER SPRING 8MM

461F0800

Unavailable

14

HORN

27003-1006

Unavailable

15

RELAY-ASSY,TURN SIGNAL

27002-011

$103.40

16

BAND,L=123

92072-030

$3.81

17

BAND,L=218

92072-032

$3.81

18

BAND,AIR CLEANER

92072-073

Unavailable

19

BRACKET,OUTAGE SWITCH

32060-014

$12.03

20

SWITCH,OUTAGE,INDICTR

28019-001

Unavailable

21

CASE,BATTERY

32099-015

Unavailable

22

YUA BAT YB10L-A2

26012-041

$55.23

23

LABEL-WARNING,BATTERY

56040-1036

Unavailable

24

ALARM,TURN SIGNAL

27040-002

Unavailable

25

BRACKET,ALARM

27023-005

Unavailable
