Partiron

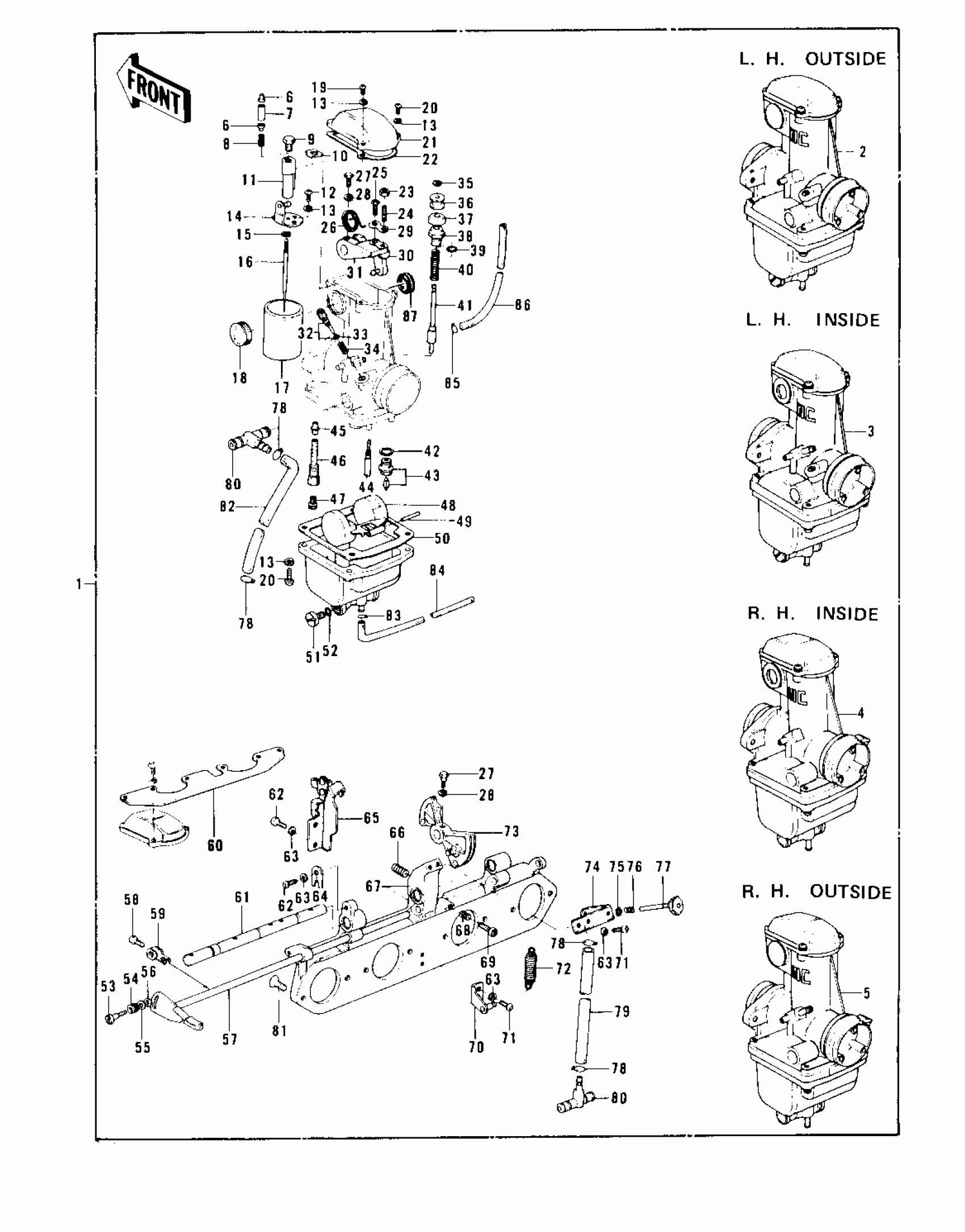

Kawasaki LTD CARBURETORS Diagram

#

Description
Price

1

CARBURETOR ASSY

16001-255

Unavailable

2

CARBURETOR,L.H OUTSID

16001-268

$205.03

3

CARBURETOR,L.H INSIDE

16001-269

$421.70

4

CARBURETOR,R.H INSIDE

16001-270

$347.40

5

CARBURETOR,R.H OUTSID

16001-271

$159.96

6

SEAT-SPRING

16057-002

Unavailable

7

HOLDER,THROTTLE SHAFT

16065-017

$8.63

8

SPRING

16040-004

$4.25

9

BOLT

16067-008

$6.05

10

WASHER,LOCK

16054-003

Unavailable

11

SHAFT,THROTTLE VALVE

16052-003

$14.22

12

SCREW,FLOAT CHAM FIT

16033-027

$4.08

13

WASHER SPRING 4MM

461F0400

Unavailable

14

PLATE,THROTTLE VALVE

16007-018

$19.63

15

CLAMP,E-TYPE

16008-010

$7.02

16

JET NEEDLE,5DL3

16009-071

Unavailable

17

VALVE,THROTTLE CAL,5

16025-075

$112.64

18

CAP,RUBBER

16039-042

Unavailable

19

SCREW-PAN-WS-CROS

223B0414

$1.16

20

SCREW FLOAT CHAMBER

16033-009

$0.63

21

TOP,MIXING CHAMBER

16005-027

$21.92

22

GASKET,CHAMBER TOP

16019-031

$44.37

23

NUT,5MM

16003-013

$9.12

24

SCREW,LEVER

16033-025

Unavailable

25

BOLT,4X16

16067-009

$3.53

26

SPRING,LEVER

16040-021

$4.97

27

BOLT,HEX HEAD,5X14

16067-006

Unavailable

28

WASHER SPRING 5MM

461F0500

Unavailable

29

WASHER,PLATE

16054-008

$5.64

30

LEVER,THROTTLE

16068-013

Unavailable

31

UNAVAILABLE IN PRICE BOOK

16088-012

Unavailable

32

SCREW,PILOT ADJUSTIN

16014-1004

Unavailable

33

GASKET,"O"RING

16038-022

$5.61

34

SPRING,PILOT AIR SCREW

16022-007

$7.97

35

CIRCLIP

16076-003

Unavailable

36

COLLAR

16073-014

Unavailable

37

CAP,STARTER PLUNGER

16039-015

$5.15

38

CAP,STARTER PLUNGER

16012-015

Unavailable

39

O RING,9MM

670B1509

$2.72

40

SPRING,STARTER PLUG

16013-008

Unavailable

41

PLUNGER,STARTER

16016-017

$9.54

42

WASHER FLOAT VLV SEAT

16029-004

$2.97

43

FLOAT VALVE ASSY

16030-027

Unavailable

44

PILOT JET,#17.5

92064-042

Unavailable

45

NEEDLE JET,0-6

16017-093

Unavailable

46

HOLDER,NEEDLE JET

16047-004

Unavailable

47

JET-MAIN NO 115R

92063-076

$11.70

47

MAIN JET,#110R

92063-1038

Unavailable

47

JET-MAIN NO 112.5R

92063-075

Unavailable

47

JET-MAIN NO 117.5R

92063-077

Unavailable

47

MAIN JET NO 120R

92063-078

Unavailable

48

FLOAT

16031-031

$176.39

49

PIN,FLOAT

16032-003

$5.95

50

GASKET,FLOAT CHAMBER

11009-1563

Unavailable

51

SCREW GUIDE

16049-005

Unavailable

52

"0" RING,MAIN JET COV

16038-016

$2.23

53

SCREW

16046-005

Unavailable

54

SPRING,F

16040-009

Unavailable

55

WASHER,PLAIN

16039-020

Unavailable

56

WASHER,PLAIN,NYLON

16039-019

Unavailable

57

SHAFT,STARTER PLUNGER

16041-016

Unavailable

58

SCREW,PAN HEAD,5X7

16046-007

Unavailable

59

LEVER,STARTER PLUNGE

13168-1026

Unavailable

60

PLATE,CARB CONNECTIO

16065-040

Unavailable

61

SHAFT,CARB CONNECTIO

16041-017

Unavailable

62

SCREW,PAN HEAD,5X14

16033-016

$4.27

63

WASHER SPRING 5MM

461F0500

Unavailable

64

PLATE,SHAFT STOPPER

16055-012

Unavailable

65

BRACKET,CABLE PULLY

16077-014

$53.47

66

SPRING,CABLE PULLY

16040-022

Unavailable

67

HOLDER,CARB MOUNTING

16065-039

$115.13

68

SPRING,THROTTLE ADJST

16022-010

Unavailable

69

ADJUSTER,THROTTLE LEV

16021-020

Unavailable

70

BRACKET,CABLE PULLY

16077-012

$9.47

71

SCREW,PAN HEAD,5X14

16033-016

$4.27

72

SPRING,CABLE PULLY

16040-020

Unavailable

73

PULLY,THROTTLE CABLE

16068-011

$38.10

74

HOLDER,THROTTLE SCRE

16077-013

$20.10

75

WASHER LOCK 5MM

464H0500

$1.51

76

SPRING,THR STOP SCREW

16022-009

$5.61

77

SCREW,THROTTLE STOP

16021-028

Unavailable

78

CLAMP,TUBE

92037-072

$5.51

79

HOSE,FUEL

92059-144

$99.78

80

JOINT,FUEL PIPE

16046-002

$50.78

81

SCREW,6X14

16033-029

Unavailable

82

PIPE,OVER FLOW

92059-085

Unavailable

83

CLAMP,OVERFLOW HOSE

92037-173

Unavailable

84

HOSE,FUEL OVERFLOW

92059-134

Unavailable

85

CLAMP,BREATHER TUBE

92037-174

$1.42

86

HOSE,BREATHER, I.D.=5MM

92059-135

Unavailable

87

GROMMET,CARB

92071-102

Unavailable
