1988 Kawasaki LTD Camshaft /Tensioner Diagram

← All diagrams

Find the part on the Camshaft /Tensioner diagram for your 1988 Kawasaki LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

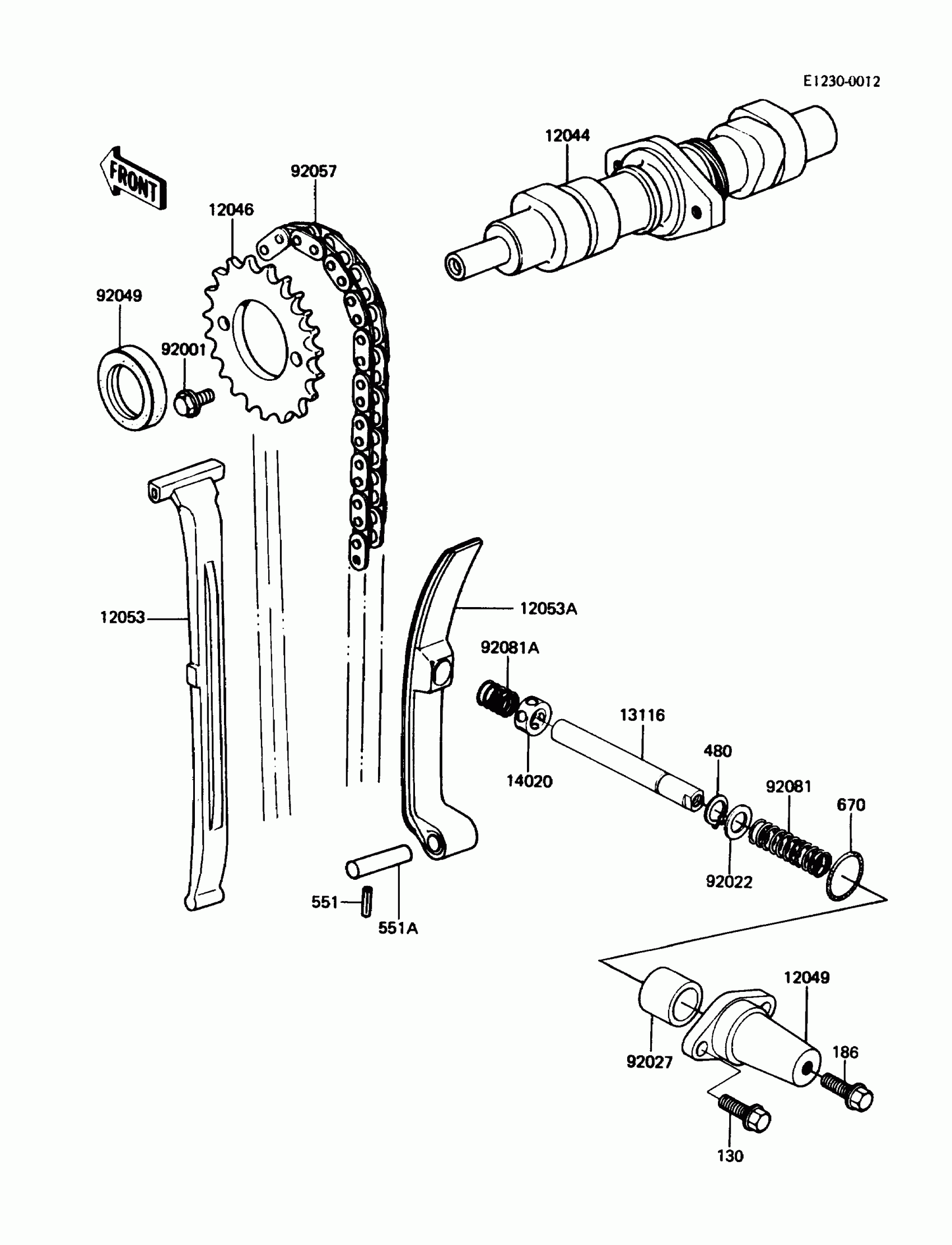

1988 Kawasaki LTD Camshaft /Tensioner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12044

CAMSHAFT-VALVE

12044-1002

1
Out of stock

12046

SPROCKET,CAMSHAFT

12046-1008

1
Out of stock

12049

TENSIONER,CAM CHAIN

12049-1010

1
Out of stock

12053

GUIDE-CHAIN,CAM

12053-1020

1
Out of stock

12053A

GUIDE-CHAIN,CAM,RR

12053-1050

1
Out of stock

13116

ROD-PUSH,TENSIONER

13116-1022

1
Out of stock

14020

RETAINER,TENSIONER

14020-1002

1

$16.44

In stock

92001

BOLT,FLANGED,6X11

92003-208

1
Out of stock

92022

WASHER,10.2X14.5X1.0

92022-1181

1
Out of stock

92027

COLLAR,TENSIONER

92027-1240

1
Out of stock

92049

SEAL-OIL,S25407

92050-065

1
Out of stock

92057

CHAIN,CAMSHAFT,BF05MX82L

92057-1015

1
Out of stock

92081

SPRING,TENSIONER

92081-1206

1
Out of stock

92081A

SPRING,TENSIONER

92081-1207

1
Out of stock

130

BOLT-FLANGED

130Y0620

1
Out of stock

186

BOLT-UPSET-WP

186X0614

1
Out of stock

480

CIRCLIP-TYPE-C,10MM

480J1000

1
Out of stock

551

PIN-DOWEL,3X16

551A0316

1
Out of stock

551A

PIN-DOWEL,8X40

551A0840

1
Out of stock

670

O RING,21MM

670B2021

1
Out of stock
