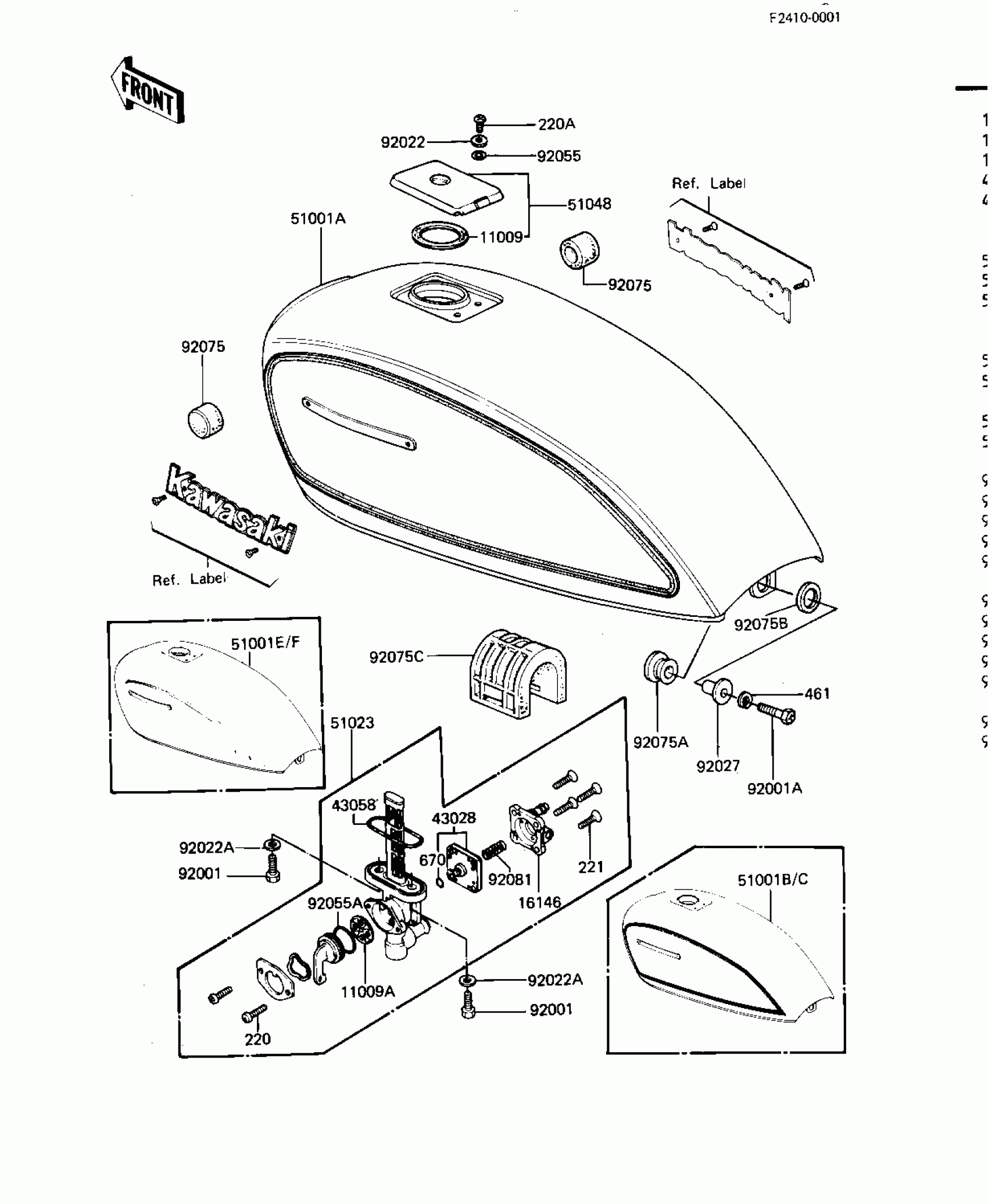

Kawasaki LTD Belt FUEL TANK ('81-'83 D2/D3/D4/D5) Diagram

Description

Price

11009

GASKET,FUEL TANK CAP

11009-1051

$8.69

11009A

GASKET,TAP VALVE

11009-1188

$4.54

16146

COVER ASSY,FUEL TAP

16146-1009

Unavailable

43028

DIAPHRAGM,TAP

43028-1021

$27.68

43058

RING,TAP FLANGED

51039-003

$4.97

51001E

TANK-COMP-FUEL,L.M.RE

51001-5196-E2

$792.45

51001F

TANK-COMP-FUEL,EBONY

51001-5196-H8

Unavailable

51023

TAP ASSY,FUEL

51023-1030

Unavailable

51048

CAP ASSY TANK

51048-1018

Unavailable

92001

BOLT,6X20

92001-1091

$3.12

92001A

BOLT,6X25

92001-1284

Unavailable

92022

WASHER,5.3X10X0.8

92022-1038

$2.92

92022A

WASHER-PLAIN

92022-183

$3.12

92027

COLLAR,L=13.1

92027-251

Unavailable

92055

RING-O

92055-1023

$3.12

92055A

RING-O,TAP LEVER

92055-1085

$4.01

92075

DAMPER,FUEL TANK

92075-101

$4.93

92075A

RUBBER,FENDER COVER

92075-174

$3.80

92075B

DAMPER,FEMALE

92075-175

$3.49

92075C

DAMPER,FUEL TANK

92075-284

$18.56

92081

SPRING,TAP DIAPHRAGM

92081-1240

$3.10

220

SCREW-PAN-CROS,3X8

220B0308

$0.63

220A

SCREW PAN HEAD 5X10

220B0510

Unavailable

221

SCREW-CSK-CROS,4X14

221B0414

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable

670

O RING,4MM

670B1504

$3.27
