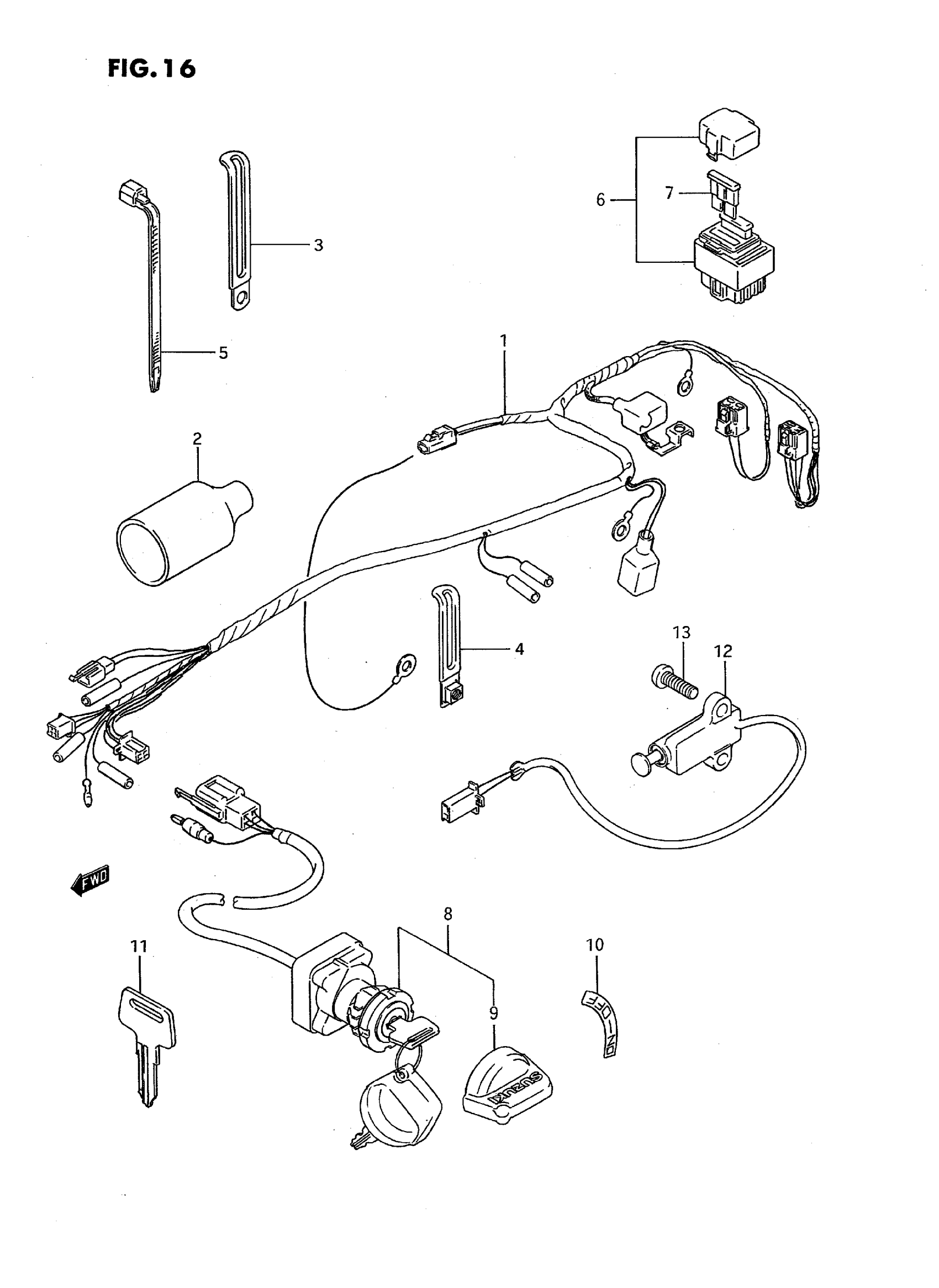

Suzuki LT80S (1995) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | Includes Item(s) 2 This part replaces 36610-40B00.

36610-40B10

Unavailable

2

BOOT, WIRING HARNESS

36618-30000

$10.17

3

CLAMP(L:80) This part replaces 09404-06426.

09404-06036

$1.76

3

CLAMP (L:125)

09404-08420

$2.90

4

CLAMP

09404-06425

Unavailable

5

CLAMP (L:125)

09407-14403

$2.24

5

CLAMP This part replaces 09407-18403.

09407-18402

$2.21

6

BOX ASSY, FUSE | Includes Item(s) 7

36740-40B00

$24.62

7

FUSE (5A)

09481-05101

$0.68

8

SWITCH ASSY,IGNITION | Includes Item(s) 9 This part replaces 37110-40B00.

37110-40B01

$103.65

9

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.56

10

PLATE, CONTROL INDENTIFICATION | MODEL H/J/K This part replaces 37139-40B00.

37139-40B03

$3.92

10

PLATE, CONTROL INDENTIFICATION | MODEL L/M/N/P/R/S This part replaces 37139-40B02.

37139-40B03

$3.92

11

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$7.38

11

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$7.38

12

SWITCH ASSY,SD | MODEL H/J/K This part replaces 37840-40B00.

37840-40B02

$112.35

12

SWITCH ASSY,SD | MODEL L/M/N/P/R/S This part replaces 37840-40B01.

37840-40B02

$112.35

13

SCREW | MODEL H/J/K/L/M/N/P/R

02112-06207

$1.77

13

SCREW | MODEL S This part replaces 02112-06203.

02112-0620A

$1.45
