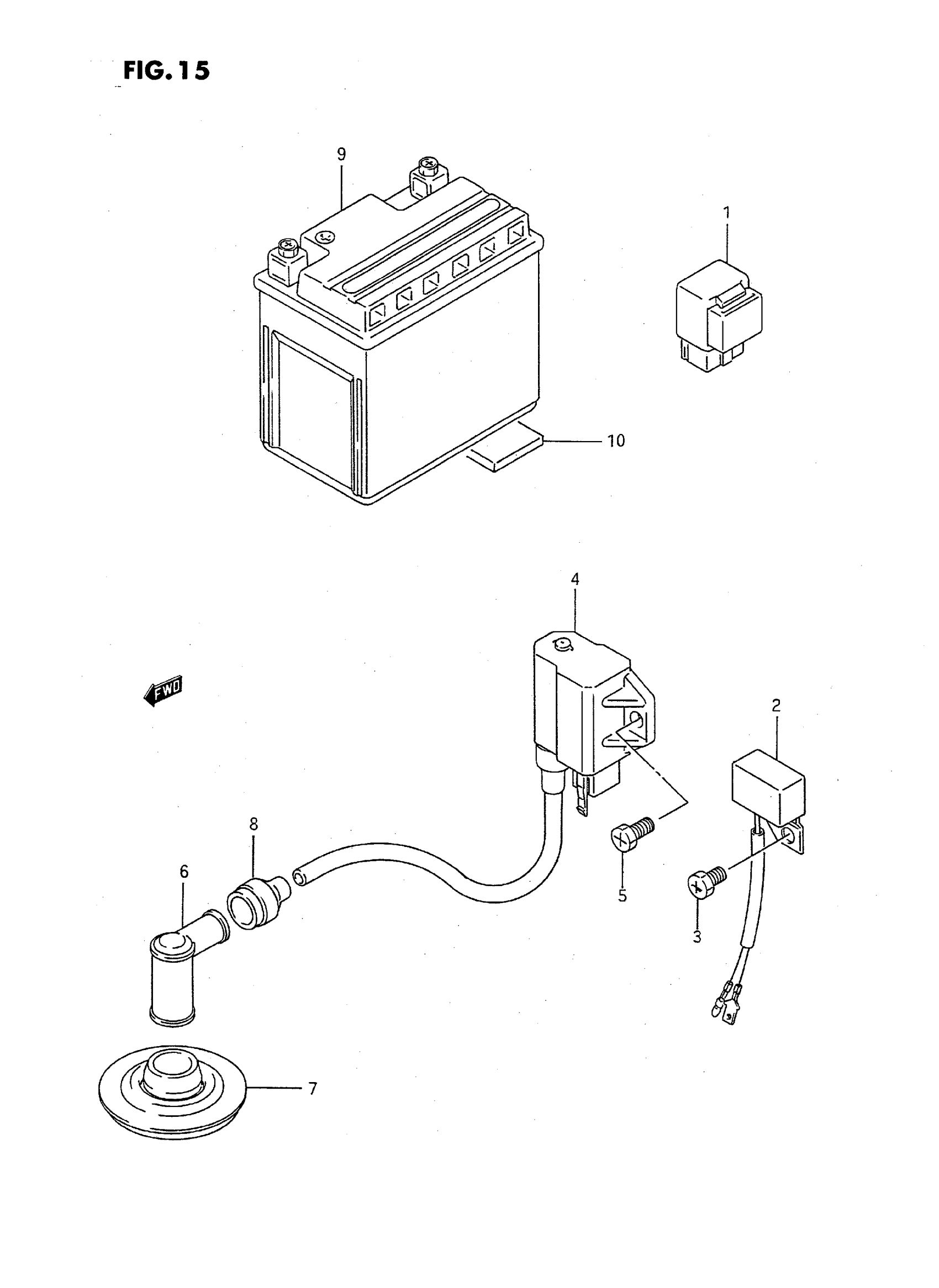

Suzuki LT80S (1995) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-40B01.

31800-40B02

$26.79

2

RECTIFIER ASSY

32800-40B00

Unavailable

3

SCREW (6X10) | MODEL H/J/K/L/M/N

09128-06059

Unavailable

3

SCREW (6X10) | MODEL P/R/S

09128-06044

$1.38

4

UNIT & COIL ASSY, IGNITION

33410-40B00

Unavailable

5

SCREW | MODEL H/J/K

09128-06038

Unavailable

5

SCREW | MODEL L/M/N/P/R This part replaces 09136-06031.

02112-7616A

$2.13

5

SCREW | MODEL S This part replaces 02112-76163.

02112-7616A

$2.13

6

CAP, SPARK PLUG | MODEL H/J/K/L/M/N/P This part replaces 33510-22010.

33510-97313

$13.49

6

CAP, SPARK PLUG | MODEL R/S

33510-97313

$13.49

7

BOOT, SPARK PLUG CAP

33543-40B00

$7.60

8

SEAL,HIGH TENSION CORD (SIDE) | MODEL H/J/K/L/M/N/P

33542-38B00

$3.97

8

SEAL,HIGH TENSION CORD (SIDE) | MODEL R This part replaces 33542-02310.

33542-38B00

$3.97

8

SEAL,HIGH TENSION CORD (SIDE) | MODEL S This part replaces 33542-98000.

33542-38B00

$3.97

9

BATTERY ASSY (YTX5L-BS,12V4AH This part replaces 33610-40B01.

33610-40B20

$74.48

10

CUSHION, BATTERY | CUT AS REQUIRED PROFILE(30X40)

33651-37000

$4.09
