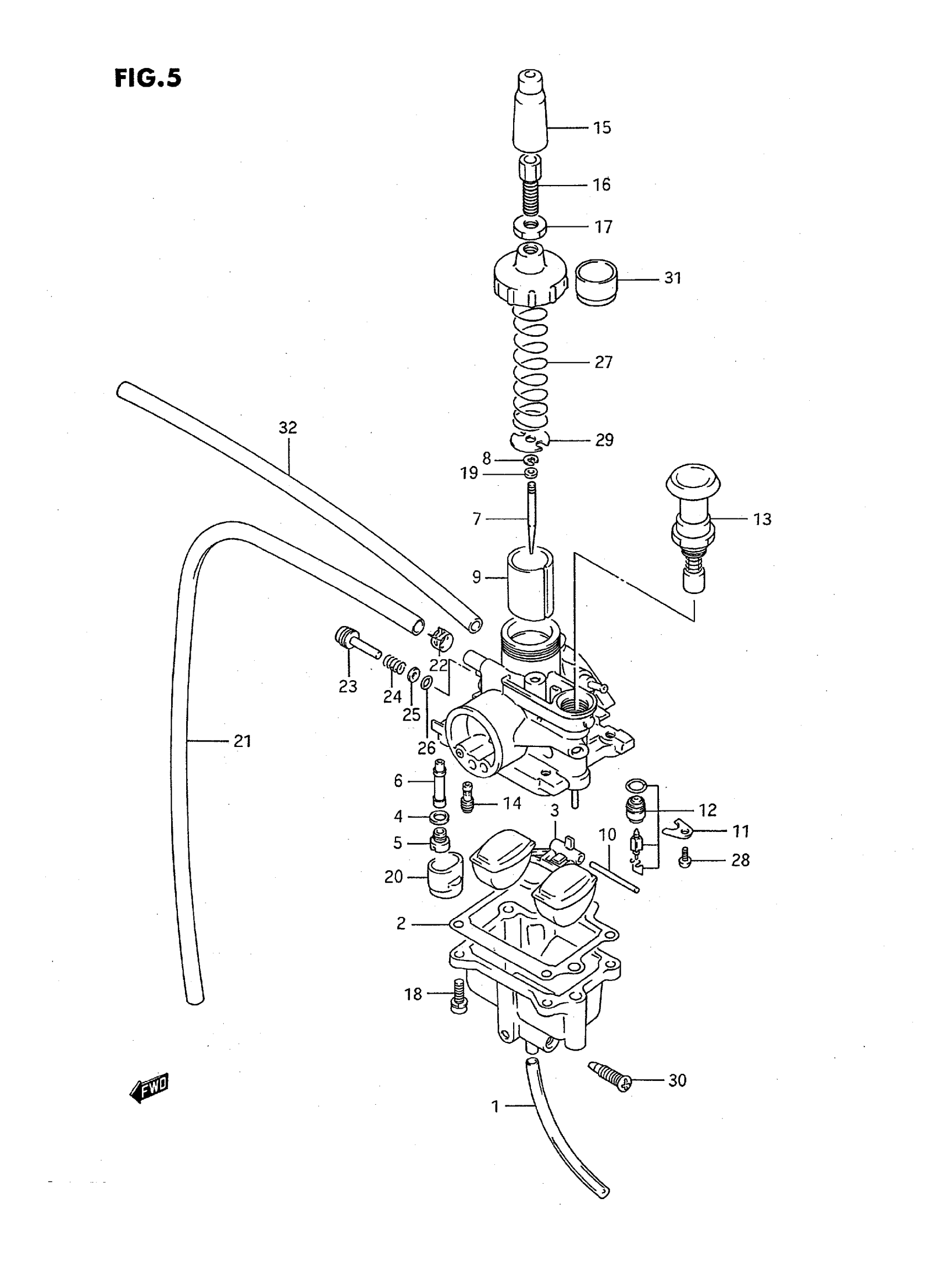

Suzuki LT80S (1995) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | MODEL H/J

13200-40B00

Unavailable

CARBURETOR ASSY | MODEL K/L/M/N/P/R/S; Includes Item(s) 1 - 31

13200-40B10

$217.63

1

HOSE | L:600->70 This part replaces 09351-30503-600.

09351-30001-600

$3.22

2

GASKET

13258-02100

$4.51

3

FLOAT This part replaces 13250-16A00.

13250-30D50

$27.67

4

GASKET

13386-04700

$2.80

5

JET, MAIN (92.5)

09491-92004

$12.38

6

JET, NEEDLE (E-0)

09494-00553

$35.12

7

NEEDLE, JET (3J17-2)

13383-46B00

$20.82

8

E RING | MODEL H/J/K/L/M/N/P This part replaces 13394-12110.

13394-40D00

$5.97

8

E RING | MODEL R/S

13394-40D00

$5.97

9

VALVE, PISTON (CA:2.5)

13551-40B00

Unavailable

10

PIN, FLOAT

13254-20010

$4.83

11

PLATE

13373-46710

$6.77

12

VALVE ASSY, NEEDLE

13370-03A20

$46.10

13

PLUNGER ASSY

13411-40B00

$32.26

14

JET, PILOT (20)

09492-20008

$11.92

15

CAP

13681-33010

$8.54

16

ADJUSTER, CABLE

13577-22600

$6.58

17

NUT

13661-16600

$4.37

18

SCREW

13601-04148

$2.80

19

GASKET

13382-47010

$3.35

20

CAP

13697-40B00

$7.03

21

HOSE (3.5X6.5X600) | L:600->500

09351-35653-600

$4.19

22

CLIP

13698-40B00

$17.40

23

ADJUSTER

13483-16A01

$18.33

24

SPRING

13268-35010

$4.09

25

WASHER

13291-35010

$4.72

26

O RING

13295-33010

$4.09

27

SPRING

13573-98500

$5.50

28

SCREW This part replaces 02112-03063.

02112-0306B

$1.61

29

PLATE

13447-30A00

$2.67

30

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.56

31

RING | MODEL K/L/M/N/P/R/S

13331-40B00

$37.17

32

HOSE(4.5X8.5X60 | L:600->240 This part replaces 09354-45853-600.

09355-45001-600

$8.55
