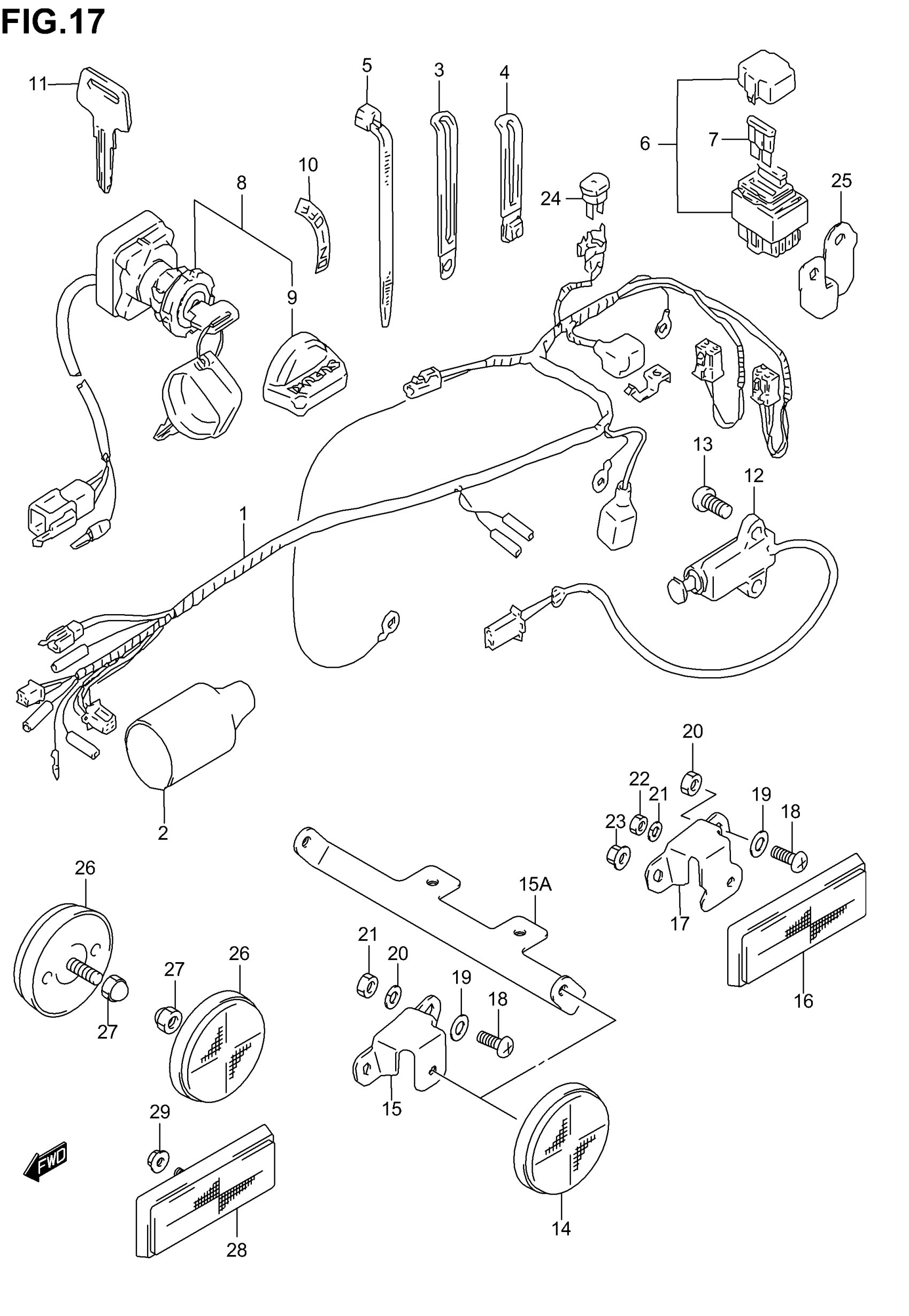

Suzuki LT80 (2006) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | Includes Item(s) 2

36610-40B20

$188.43

2

BOOT, WIRING HARNESS

36618-30000

$10.17

3

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.81

3

CLAMP (L:125)

09404-08420

$3.00

4

CLAMP (L:80)

09404-06425

Unavailable

5

CLAMP (L:125)

09407-14403

$2.31

5

CLAMP (L:165)

09407-18402

$2.29

6

BOX ASSY, FUSE | Includes Item(s) 7

36740-40B00

$24.62

7

FUSE (5A)

09481-05101

$0.68

8

SWITCH ASSY,IGNITION | Includes Item(s) 9 This part replaces 37110-40B00.

37110-40B01

$107.80

9

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.77

10

PLATE, CONTROL INDENTIFICATION

37139-40B03

$3.92

11

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$7.71

11

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$7.71

11

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$7.71

11

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$7.71

12

SWITCH ASSY,SD This part replaces 37840-40B01.

37840-40B02

$112.35

13

SCREW This part replaces 02112-06203.

02112-0620A

$1.49

14

REFLECTOR, FRONT SIDE | P28

35950-14A00

$16.66

15

BRACKET, FRONT RH | MODEL K2 P28

35956-40B00

Unavailable

15

BRACKET, FRONT LH | MODEL K2 P28

35957-40B00

Unavailable

15A

BRACKET, FRONT SIDE | MODEL K3/K4/K5/K6 P28

35956-40B10

Unavailable

16

REFLECTOR, REAR | MODEL K2 P28

35970-00A10

Unavailable

17

BRACKET, REAR SIDE RH | MODEL K2 P28

35975-40B00

Unavailable

17

BRACKET, REAR SIDE LH | MODEL K2 P28

35976-40B00

Unavailable

18

SCREW | MODEL K2 P28 This part replaces 02142-06163.

02142-0616A

$1.41

19

.WASHER | MODEL K2 P28 This part replaces 08322-01063.

08322-0106B

$2.31

20

NUT | MODEL K2 P28

08319-31067

$2.09

21

LOCK WASHER | MODEL K2 P28 This part replaces 08321-01053.

08321-0105A

$1.89

22

NUT | MODEL K2 P28 This part replaces 08310-00053.

08310-0005A

$1.90

23

NUT | MODEL K2 P28 This part replaces 08316-10053.

08316-1005A

$2.25

24

BREAKER ASSY, CIRCUIT

36750-05A00

$42.57

25

BRACKET, CIRCUIT BREAKER

36751-40B00

$15.83

26

REFLECTOR ASSY, REAR SIDE | MODEL K3/K4/K5/K6 P28

35970-14A10

$21.23

27

NUT | MODEL K3/K4/K5/K6 P28 This part replaces 08313-20053.

08313-2005A

$2.62

28

REFLECTOR ASSY, RR SIDE | MODEL K3/K4/K5/K6 P28 This part replaces 35970-07F00.

35970-07F01

$19.97

29

NUT | MODEL K3/K4/K5/K6 P28 This part replaces 08316-10053.

08316-1005A

$2.25
