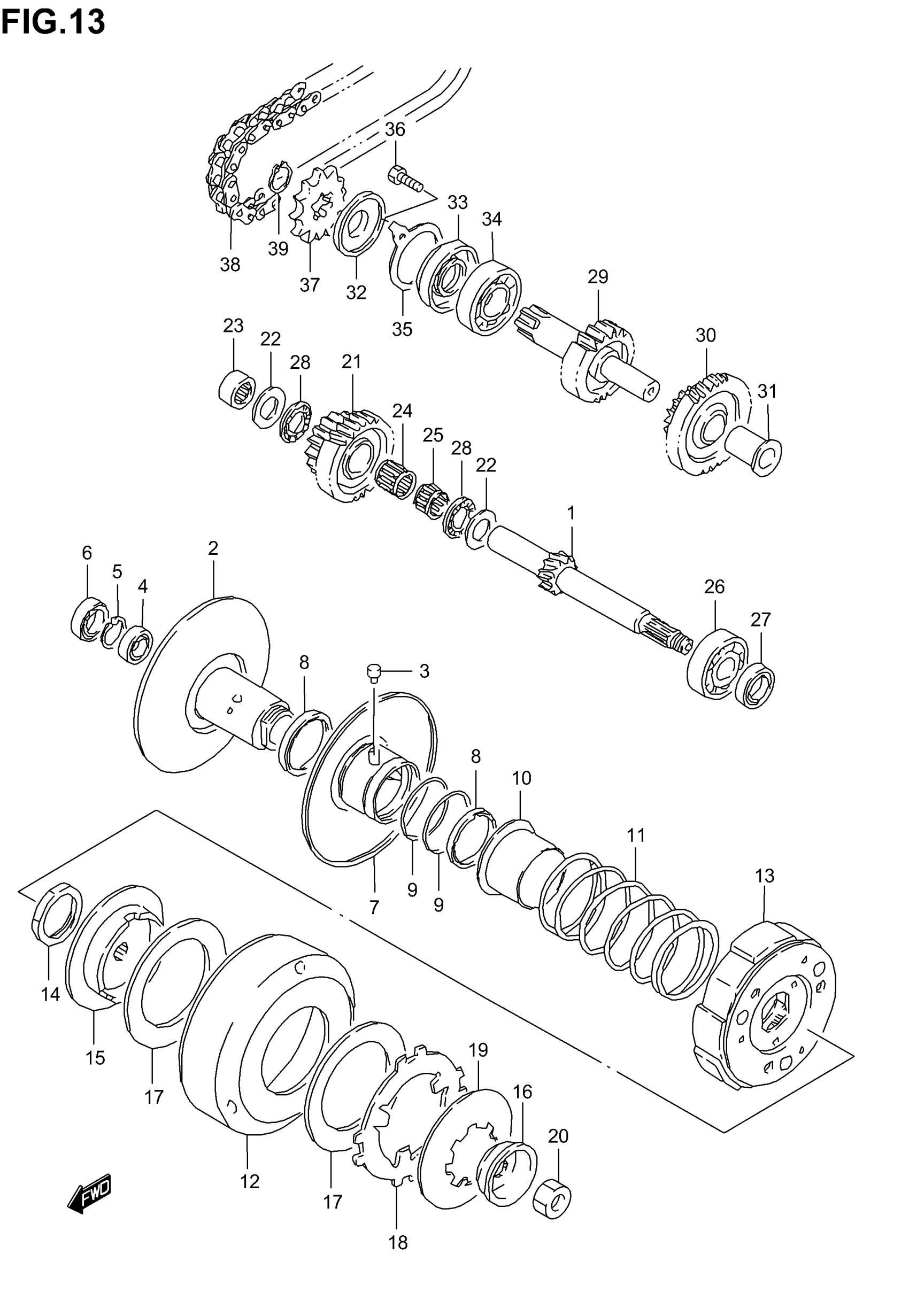

Suzuki LT80 (2006) TRANSMISSION (2) Diagram

#

Description
Price

1

COUNTER SHAFT (NT:12)

24131-29A03

$134.47

2

FACE, FIXED DRIVEN

21210-03A21

$125.65

3

PIN

09201-06005

Unavailable

4

BEARING (12X24X6)

09262-12014

$32.60

5

CIRCLIP This part replaces 08331-41246.

08331-41249

$2.31

6

BEARING(15X28X7 This part replaces 09262-15018.

09262-15061

$23.69

7

FACE, MOVABLE DRIVEN

21240-40B00

$102.17

8

OIL SEAL (34X41X4)

09283-34007

$6.50

9

O RING (D:1.5,ID:39.7)

09280-41005

$2.51

10

SHEET, MOVABLE DRIVEN | MODEL K2 This part replaces 21471-03A10.

21471-03A11

$7.48

10

SLEEVE, MOVABLE DRIVEN FACE | MODEL K3/K4/K5/K6

21471-03A11

$7.48

11

SPRING

09440-46005

$13.02

12

HOUSING,CLUTCH

21220-29A01

$106.07

13

CLUTCH ASSY

21501-03A21

$147.27

14

NUT

09152-28001

$8.50

15

HUB, LIMITER CLUTCH

21411-29A01

$58.62

16

STOPPER, LIMITER CLUTCH

21412-29A00

$12.25

17

PLATE, FRICTION

21441-29A01

Unavailable

18

PLATE, PRESSURE

21461-29A01

$8.27

19

SPRING

09164-30003

$14.90

20

NUT

09140-10035

$4.12

21

GEAR, FINAL DRIVE (NT:27/14)

24271-40B01

$200.50

22

THRUST WASHER (15X28X1)

09181-15223

$2.64

23

BEARING (15X22X15)

09263-15009

$12.48

24

BEARING, RH (15X20X18)

09263-15035

$19.10

25

BEARING, LH (15X20X13)

09263-15038

$20.25

26

BEARING (15X42X13)

09262-15027

$22.16

27

OIL SEAL (15X25X5)

09283-15003

$4.89

28

BEARING (15X28X2)

09263-15003

$7.70

29

SHAFT, DRIVE (NT:19)

24141-40B00

$227.23

30

GEAR, IDLER DRIVE NO.2 | NT:33/14

24290-29A01

$200.50

31

BUSH

09301-15002

$26.30

32

OIL SEAL

24142-40B00

$11.62

33

OIL SEAL (20X47X12)

09283-20047

$12.42

34

BEARING (20X47X14)

09262-20121

$31.99

35

RETAINER

24751-40B00

Unavailable

36

BOLT This part replaces 01500-06163.

01500-0616A

$1.82

37

SPROCKET, ENGINE (NT:10)

27511-40B10

$18.72

38

CHAIN ASSY (DID 520VSX36LE)

27600-34A40-036

$51.21

39

CIRCLIP

09380-20009

$2.06
