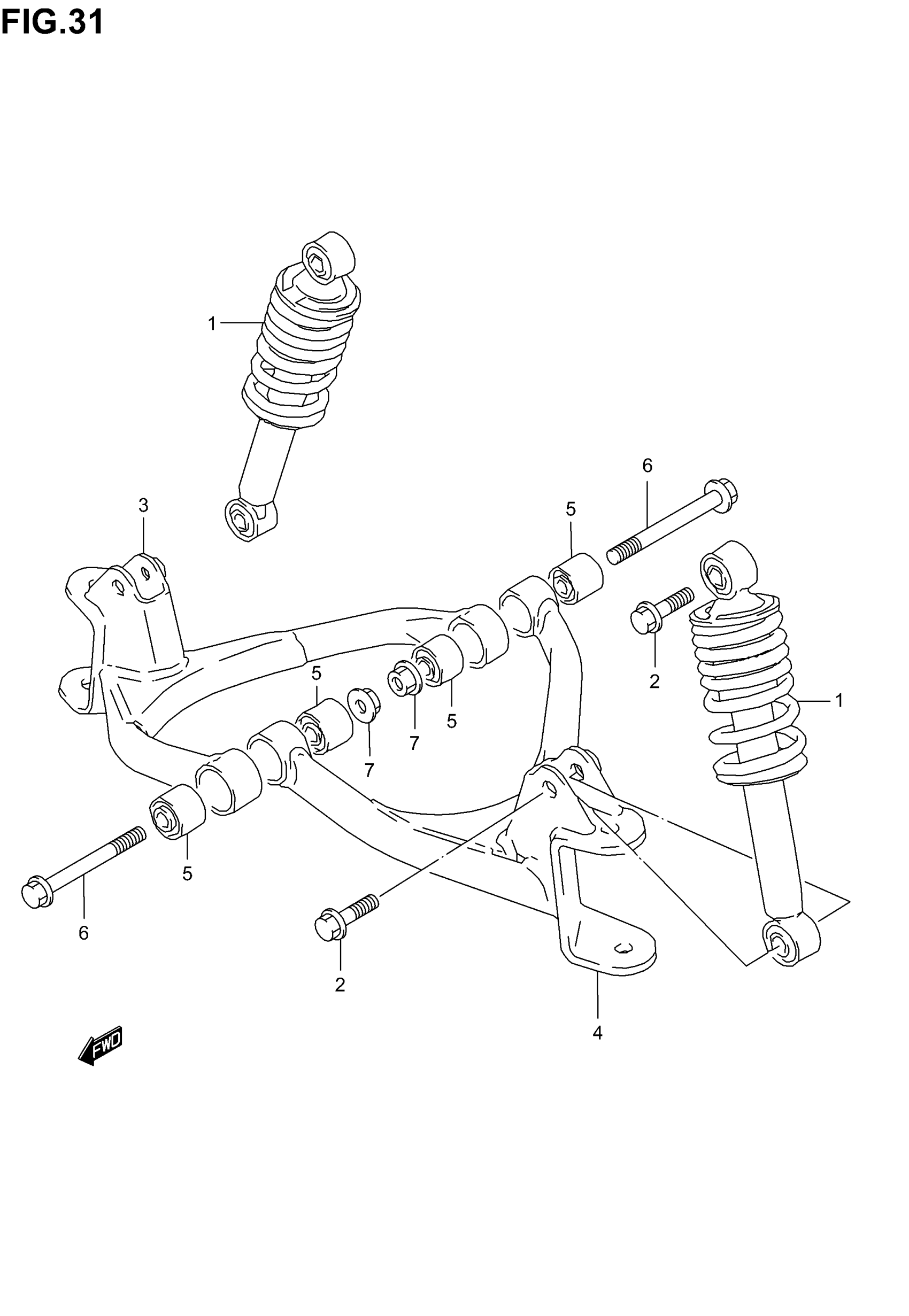

Suzuki LT80 (2006) SUSPENSION ARM Diagram

#

Description

Price

1

ABSORBER ASSY, FRONT (RED) | MODEL K2/K3/K4/K5

52100-40B10-37W

Unavailable

1

ABSORBER ASSY, FRONT (RED) | MODEL K6

52100-40BK0-YKS

Unavailable

2

BOLT, ABSORBER (10X37)

09103-10019

$2.71

3

ARM, SUSPENSION RH (BLACK)

52410-40B00-019

$196.77

4

ARM, SUSPENSION LH (BLACK)

52420-40B00-019

$196.77

5

BUSH, ARM (10X28.1X28)

09319-10049

$16.25

6

BOLT, SUSPENSION ARM (10X80)

09103-10173

$7.67

7

NUT This part replaces 08316-20103.

08316-2010B

$4.38
