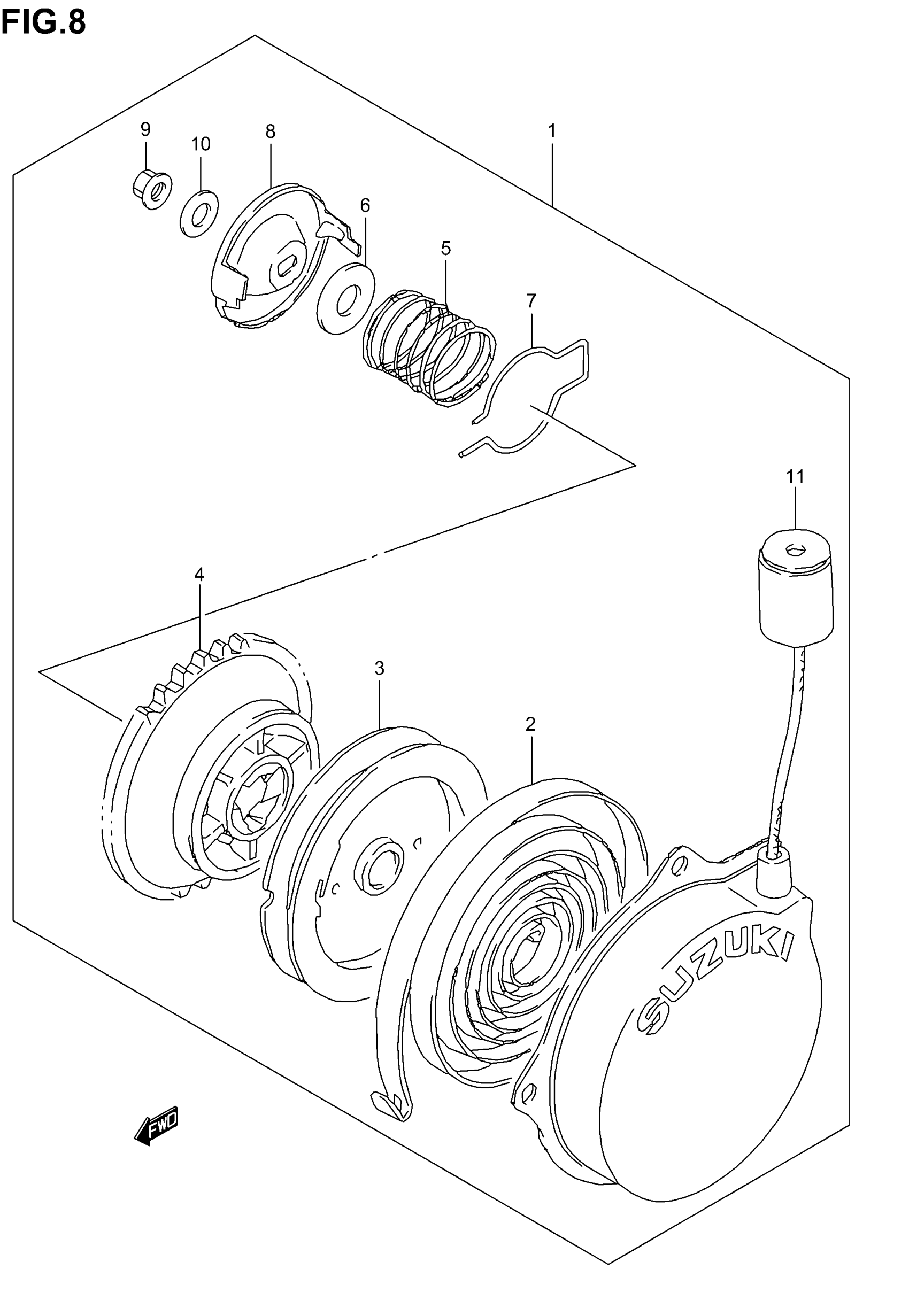

Suzuki LT80 (2006) RECOIL STARTER (OPT) Diagram

#

Description
Price

1

STARTER ASSY, RECOIL | Includes Item(s) 2 - 11

18100-40B03

$111.11

2

SPRING, SPIRAL

18142-40B00

$27.55

3

REEL

18121-40B01

$55.55

4

GEAR

18131-40B00

$49.52

5

SPRING, RETURN

18161-40B00

$19.60

6

WASHER This part replaces 09160-10129.

09160-10035

$1.86

7

SPRING, FRICTION

18153-40B00

$10.17

8

RETAINER

18151-40B00

Unavailable

9

NUT

18334-40B00

$4.90

10

WASHER

09160-08059

$1.77

11

ROPE ASSY

18200-40B00

Unavailable
