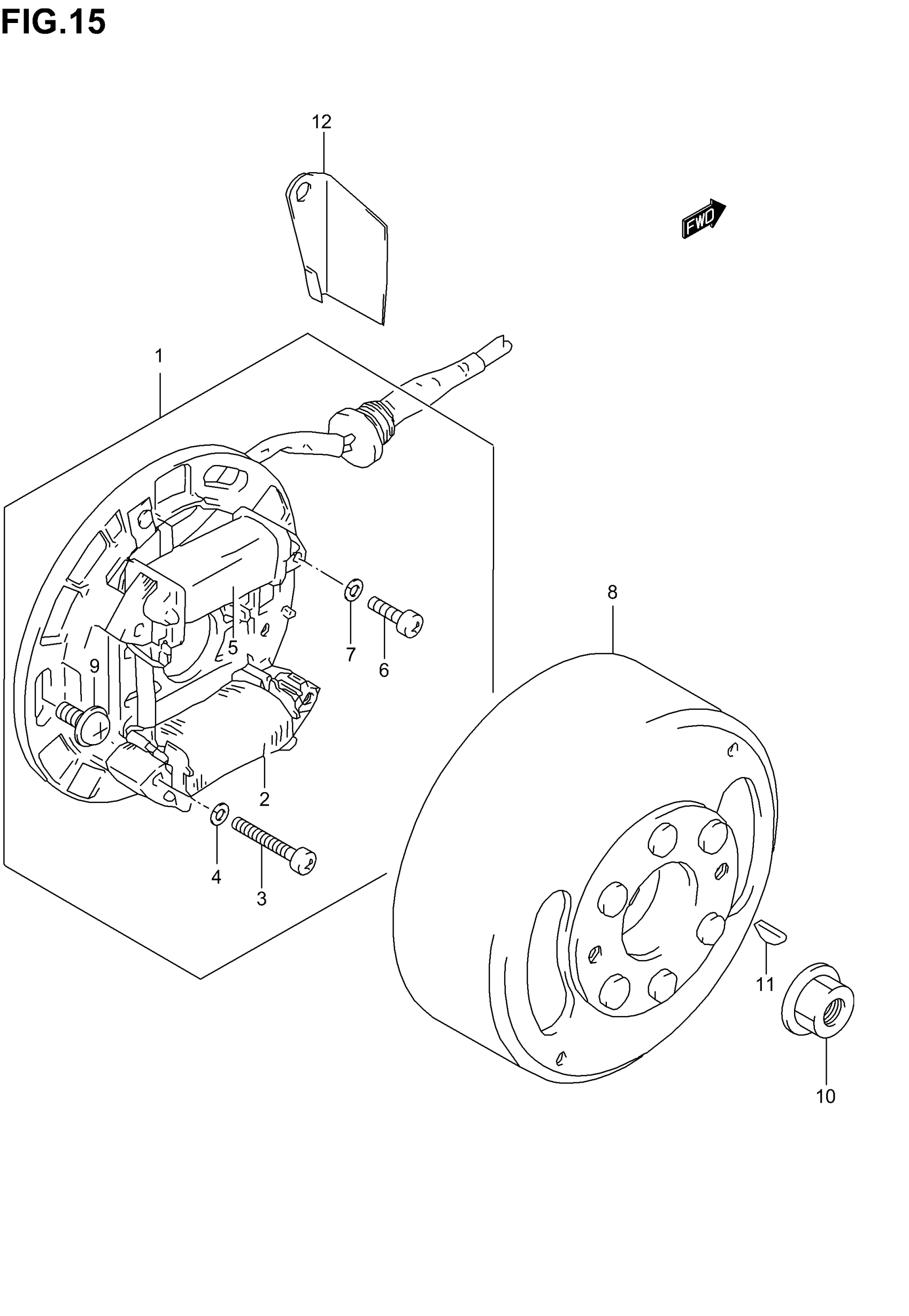

Suzuki LT80 (2006) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY | Includes Item(s) 2 - 7

32101-40B00

Unavailable

2

COIL, LIGHTING

32120-40B00

$93.48

3

SCREW (4X30)

09125-04023

$2.50

4

LOCK WASHER This part replaces 08321-01043.

08321-0104A

$1.92

5

COIL, PRIMARY

32140-40B00

$109.68

6

SCREW This part replaces 02112-04163.

02112-0416A

$1.28

7

LOCK WASHER This part replaces 08321-01043.

08321-0104A

$1.92

8

ROTOR

32102-40B00

Unavailable

9

.SCREW This part replaces 02142-05123.

02142-0512A

$1.41

10

NUT This part replaces 08316-10103.

08316-1010B

$2.74

11

KEY

08341-31039

$1.97

12

CLAMP

32371-40B00

Unavailable
