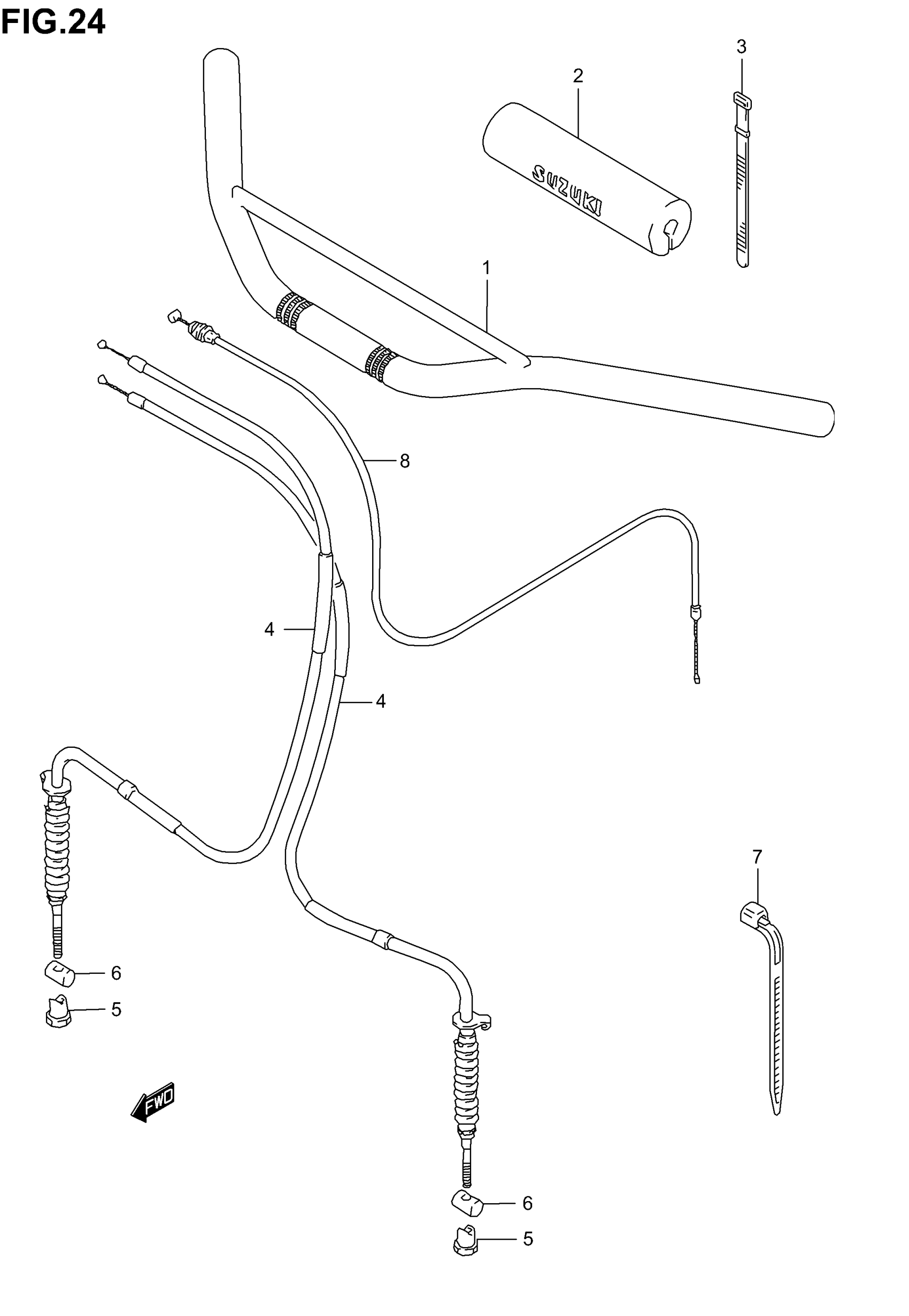

Suzuki LT80 (2006) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR (BLACK)

56110-40B00-291

Unavailable

2

PAD, CROSS

56172-24500

$15.65

3

CLAMP

09407-14407

$2.84

4

CABLE, FRONT BRAKE

58110-40B00

$41.82

5

.NUT This part replaces 09150-06014.

09150-06010

$2.88

6

PIN

09209-11002

$2.17

7

CLAMP

09407-14403

$2.31

7

CLAMP

09407-11401

$2.87

8

CABLE ASSY, THROTTLE | MODEL K2/K3/K4

58300-40B00

$22.25

8

CABLE ASSY, THROTTLE | MODEL K5/K6

58300-40B10

$18.37
