Description

Price

1

PISTON

12110-40B01-0F0

$56.68

2

RING SET, PISTON (STD)

12140-40B30

$33.87

2

RING SET, PISTON (OS:0.5) | OPT

12140-40B30-050

$49.27

2

RING SET, PISTON (OS:1.0) | OPT

12140-40B30-100

$53.12

3

PIN, PISTON

12151-35400

$8.35

4

SNAP RING

09381-12001

$1.46

5

BEARING (12X16X16)

09263-12023

$9.47

6

CRANKSHAFT ASSY | Includes Item(s) 7 - 12

12200-40B02

$399.03

7

ROD, CONNECTING

12161-07901

$90.80

8

PIN, CRANK

12211-07902

$19.60

9

CRANKSHAFT, RH

12221-29A00

Unavailable

10

CRANKSHAFT, LH

12261-40B01-0A0

Unavailable

11

BEARING (17X23X14)

09263-17022

$23.82

12

WASHER

09160-17022

$3.06

13

BEARING (20X47X14) | LH

09262-20121

$31.99

14

BEARING (20X47X14) | RH

09262-20048

$28.00

15

OIL SEAL (20X37X8)

09283-20034

$4.81

16

GEAR, STARTER (NT:67)

12620-29A11

$94.45

17

KEY

08341-31039

$1.97

18

PISTON SET (OS:0.5) | OPT

12100-40B00-050

$115.63

18

PISTON SET (OS:1.0) | OPT

12100-40B00-100

$117.83

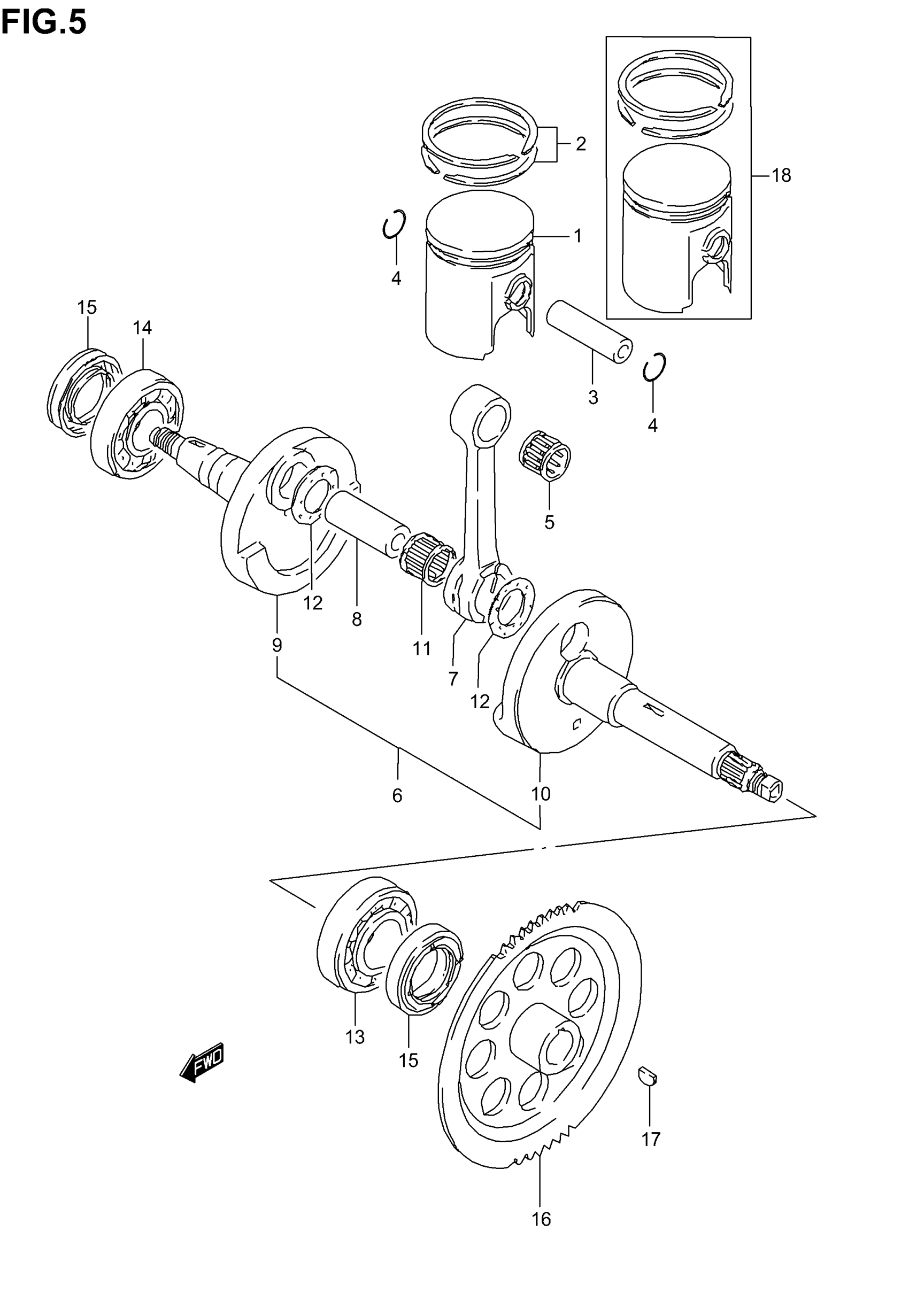

Suzuki LT80 (2006) CRANKSHAFT Diagram
