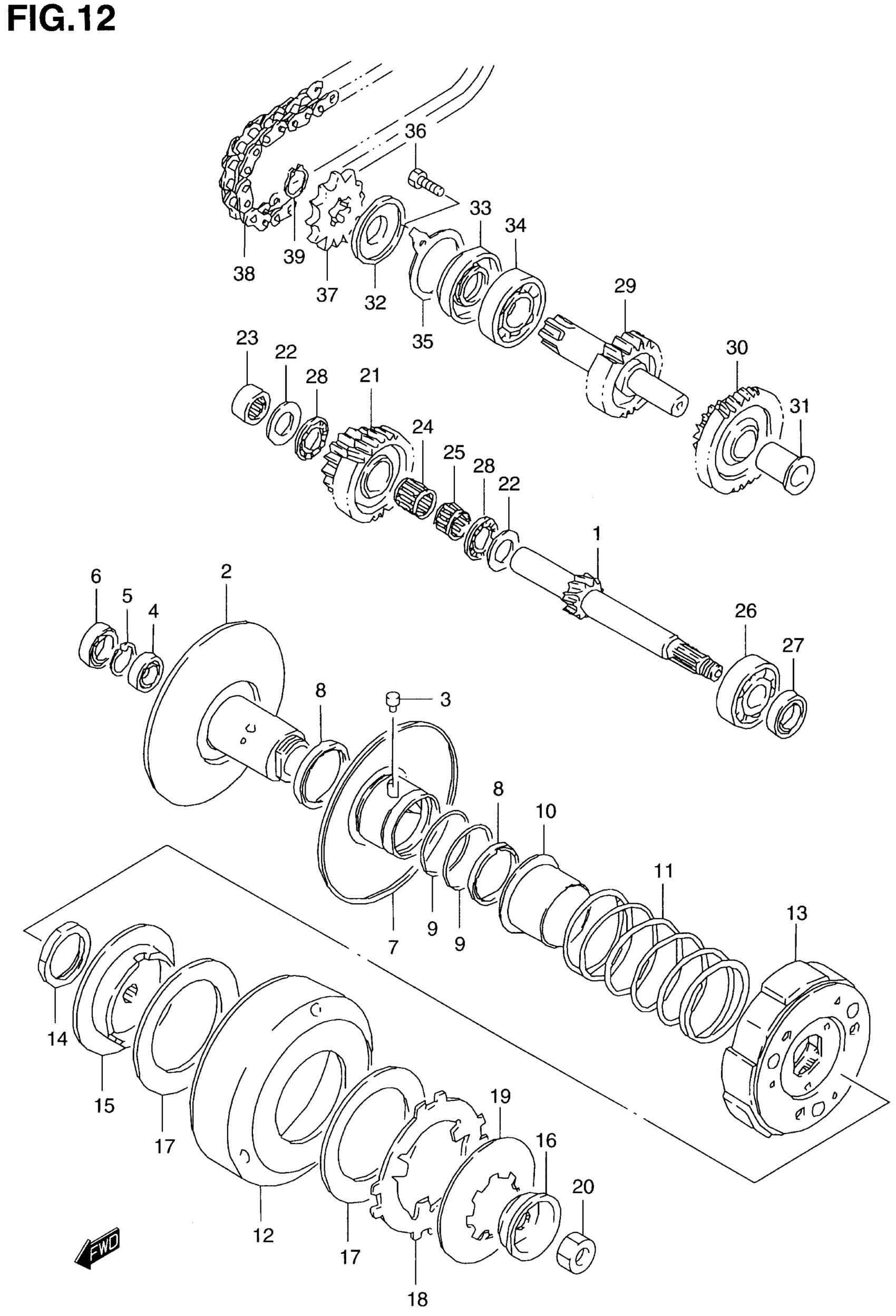

Suzuki LT80 (2001) TRANSMISSION (2) Diagram

COUNTER SHAFT (NT:12)

24131-29A03

$134.47

FACE, FIXED DRIVEN

21210-03A21

$125.65

PIN

09201-06005

Unavailable

BEARING (12X24X6)

09262-12014

$32.60

CIRCLIP This part replaces 08331-41246.

08331-41249

$2.31

BEARING(15X28X7 This part replaces 09262-15018.

09262-15061

$23.69

FACE, MOVABLE DRIVEN

21240-40B00

$102.17

OIL SEAL (34X41X4)

09283-34007

$6.50

O RING

09280-41005

$2.51

SHEET, MOVABLE DRIVEN This part replaces 21471-03A03.

21471-03A11

$7.48

SPRING

09440-46005

$13.02

HOUSING,CLUTCH

21220-29A01

$106.07

CLUTCH ASSY

21501-03A21

$147.27

NUT

09152-28001

$8.50

HUB, LIMITER CLUTCH

21411-29A01

$58.62

STOPPER, LIMITER CLUTCH

21412-29A00

$12.25

PLATE, FRICTION

21441-29A01

Unavailable

PLATE, PRESSURE

21461-29A01

$8.27

SPRING

09164-30003

$14.90

NUT

09140-10035

$4.12

GEAR, FINAL DRIVE (NT:27/14)

24271-40B01

$200.50

THRUST WASHER (15X28X1)

09181-15223

$2.64

BEARING, CNTR SHAFT,R | 15X22X15

09263-15009

$12.48

BEARING, FINAL DRIVE,R | 15X20X18

09263-15035

$19.10

BEARING, FINAL DRIVE,L | 15X20X13

09263-15038

$20.25

BEARING, CNTR SHAFT,L | 15X42X13

09262-15027

$22.16

OIL SEAL, CNTR, L OIL | 15X25X5

09283-15003

$4.89

BEARING, FINAL DRIVE,R | 15X28X2

09263-15003

$7.70

SHAFT, DRIVE (NT:19)

24141-40B00

$227.23

GEAR, IDLER DRIVE NO.2 | MODEL T/V/W/X/Y NT:33/14 This part replaces 24290-29A00.

24290-29A01

$200.50

GEAR, IDLER DRIVE NO.2 | MODEL K1,NT:33/14

24290-29A01

$200.50

BUSH

09301-15002

$26.30

OIL SEAL

24142-40B00

$11.62

OIL SEAL (20X47X12)

09283-20047

$12.42

BEARING (20X47X14) | MODEL T/V/W

09262-20069

$21.64

BEARING, DRIVE SHAFT LH | MODEL X/Y/K1 This part replaces 09262-20019.

09262-20069

$21.64

RETAINER

24751-40B00

Unavailable

BOLT This part replaces 01500-06163.

01500-0616A

$1.82

SPROCKET, ENGINE (NT:10)

27511-40B10

$18.72

CHAIN ASSY (RK 520SMX36LE)

27600-34A40-036

$51.21

CIRCLIP

09380-20009

$2.06
