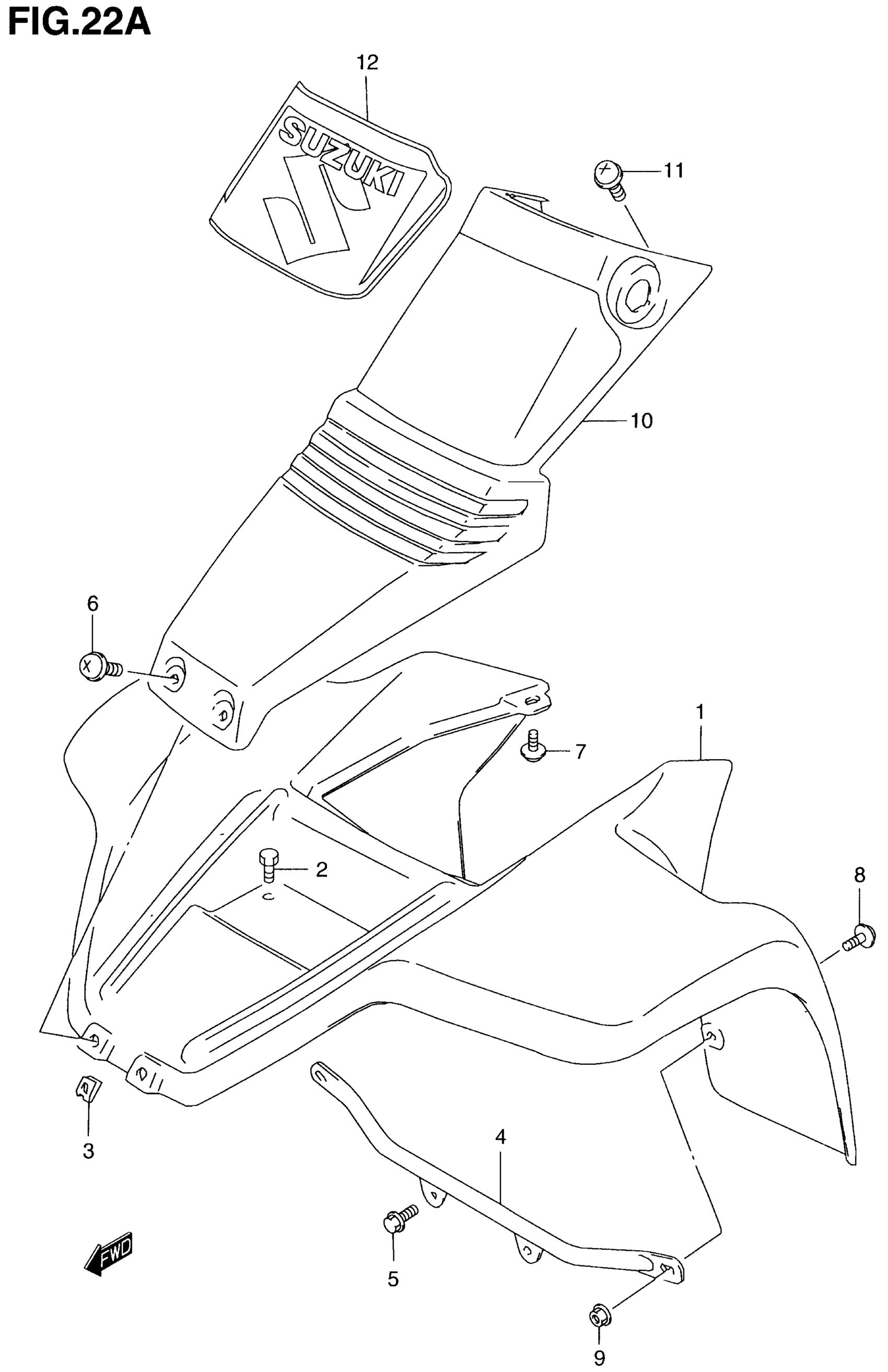

Suzuki LT80 (2001) FRONT FENDER (MODEL K1) Diagram

#

Description

Price

1

FENDER, FRONT (YELLOW)

53111-40B01-25Y

$445.10

1

FENDER, FRONT (YELLOW) | P28

53111-40B11-25Y

Unavailable

2

BOLT, FENDER FRONT

09116-08111

$4.12

3

NUT, FENDER FRONT

53141-19A00

$4.15

4

BRACE, FRONT FENDER (BLACK)

53210-40B10-019

$55.07

5

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$2.01

6

SCREW This part replaces 09136-06062.

09136-06017

$2.39

7

SCREW, FRONT FENDER REAR

09136-06004

$2.13

8

SCREW, FENDER & BRACE

09136-06022

$2.19

9

NUT, FENDER & BRACE

08319-31067

$2.09

10

COVER, FENDER CENTER (BLACK)

53118-40B00-291

$90.82

11

SCREW, CENTER COVER

09136-06004

$2.13

12

TAPE, FRONT FENDER

68155-40BB0-DH5

Unavailable
