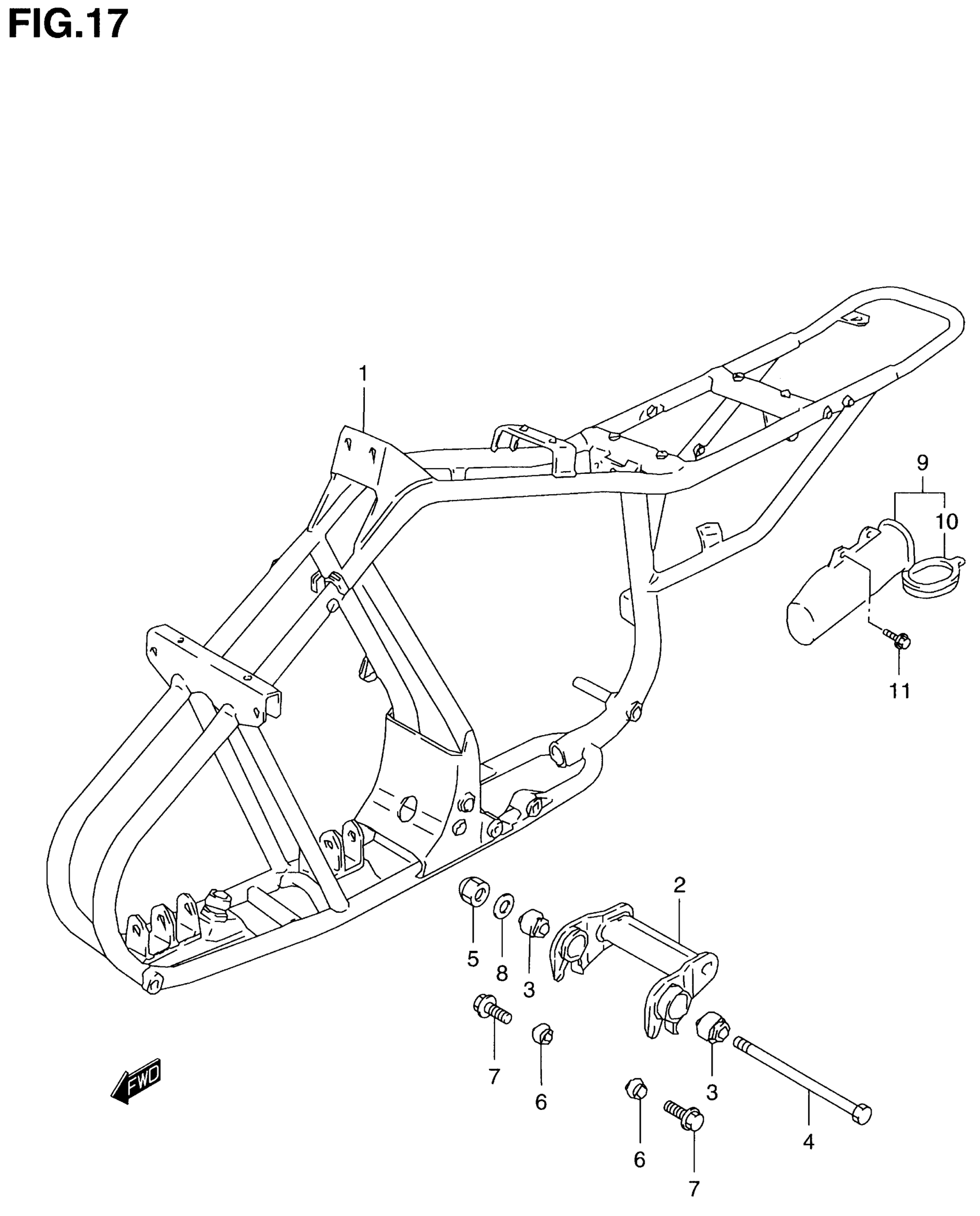

Suzuki LT80 (2001) FRAME Diagram

#

Description
Price

1

FRAME (BLACK) | MODEL T/V/W/X This part replaces 41100-40B10-019.

41100-40B12-019

Unavailable

1

FRAME (BLACK) | MODEL Y/K1

41100-40B12-019

Unavailable

1

FRAME (BLACK) | MODEL T/V/W/X P28

41100-40B20-019

Unavailable

1

FRAME (BLACK) | MODEL Y/K1 P28

41100-40B22-019

Unavailable

2

BRACKET, CRANKCASE (BLACK)

41180-40B10-019

$122.07

3

BUSHING This part replaces 09319-14006.

09319-14008

$21.66

4

BOLT, ENGINE MOUNTING (L:212) This part replaces 61211-40B01.

09103-14021

$31.52

5

NUT This part replaces 08319-21148.

08319-2114A

$3.75

6

CUSHION This part replaces 09320-10023.

09320-10074

$4.21

7

BOLT This part replaces 01550-10303.

01550-1030A

$3.37

8

WASHER

09160-14027

$2.62

9

HOLDER,TOOL | MODEL X/Y/K1; Includes Item(s) 10

41550-32E00

$82.18

10

CAP | MODEL X/Y/K1

41552-37210

$9.61

11

BOLT | MODEL X/Y/K1

09116-06006

$1.95
