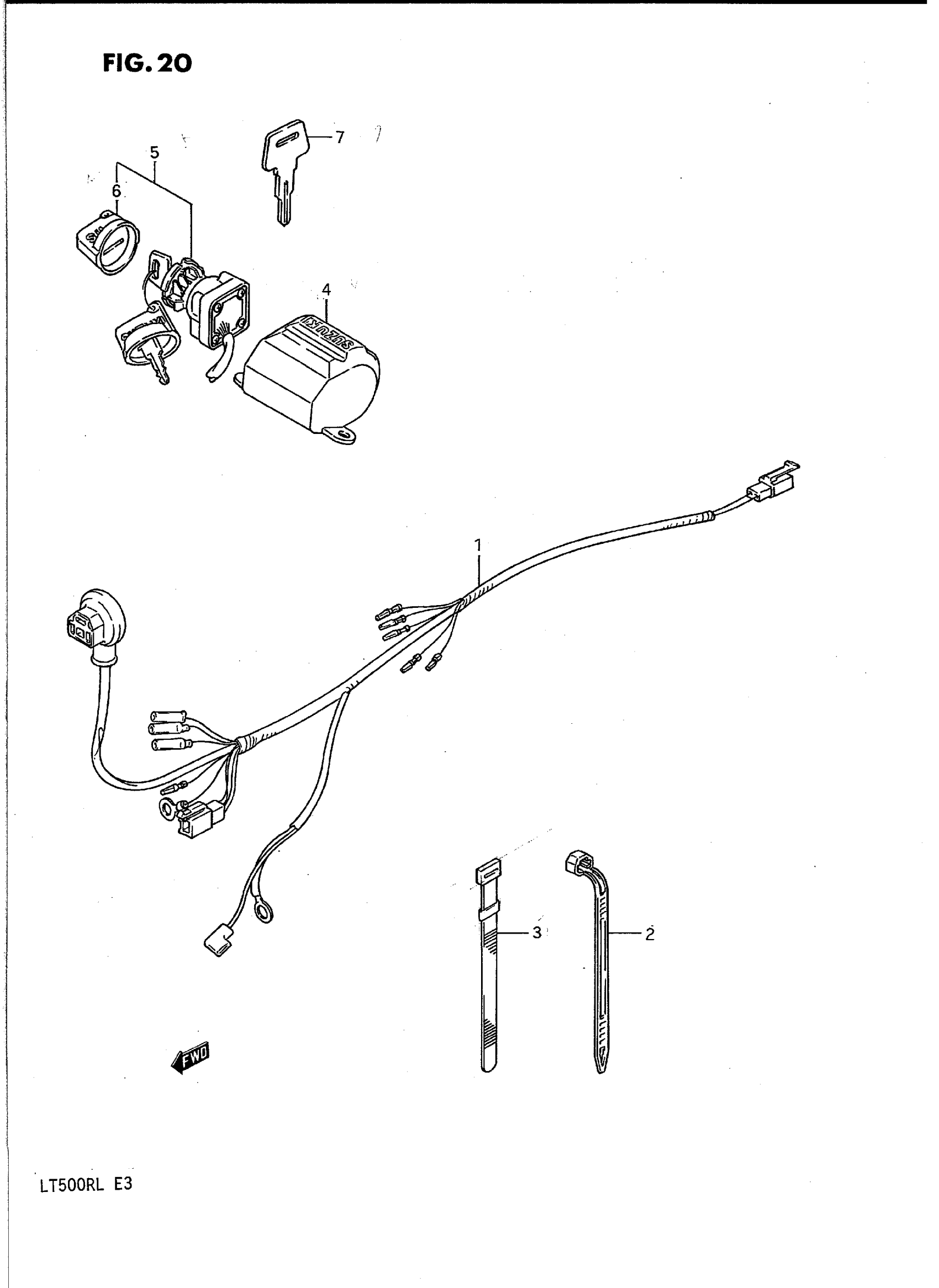

Suzuki LT500RL (1990) WIRING HARNESS Diagram

#

Description

Price

1

WIRING HARNESS

36610-43B00

Unavailable

2

CLAMP (L:125) | MODEL HMODEL J/K/L

09407-14403

$2.24

2

CLAMP (L:165) | MODEL HMODEL J/K/L

09407-18402

$2.21

2

CLAMP (L:235)

09407-30401

$6.22

3

CLAMP (L:120)

09407-12402

$2.80

4

NO DESCRIPTION AVAILABLE This part replaces 36380-19A00.

36380-19A0V

Unavailable

5

SWITCH ASSY,IGN | Includes Item(s) 6 This part replaces 37110-24201.

37110-24202

Unavailable

6

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.56

7

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$7.38

7

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$7.38
