1990 Suzuki LT500RL Cylinder Diagram

← All diagrams

Find the part on the Cylinder diagram for your 1990 Suzuki LT500RL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

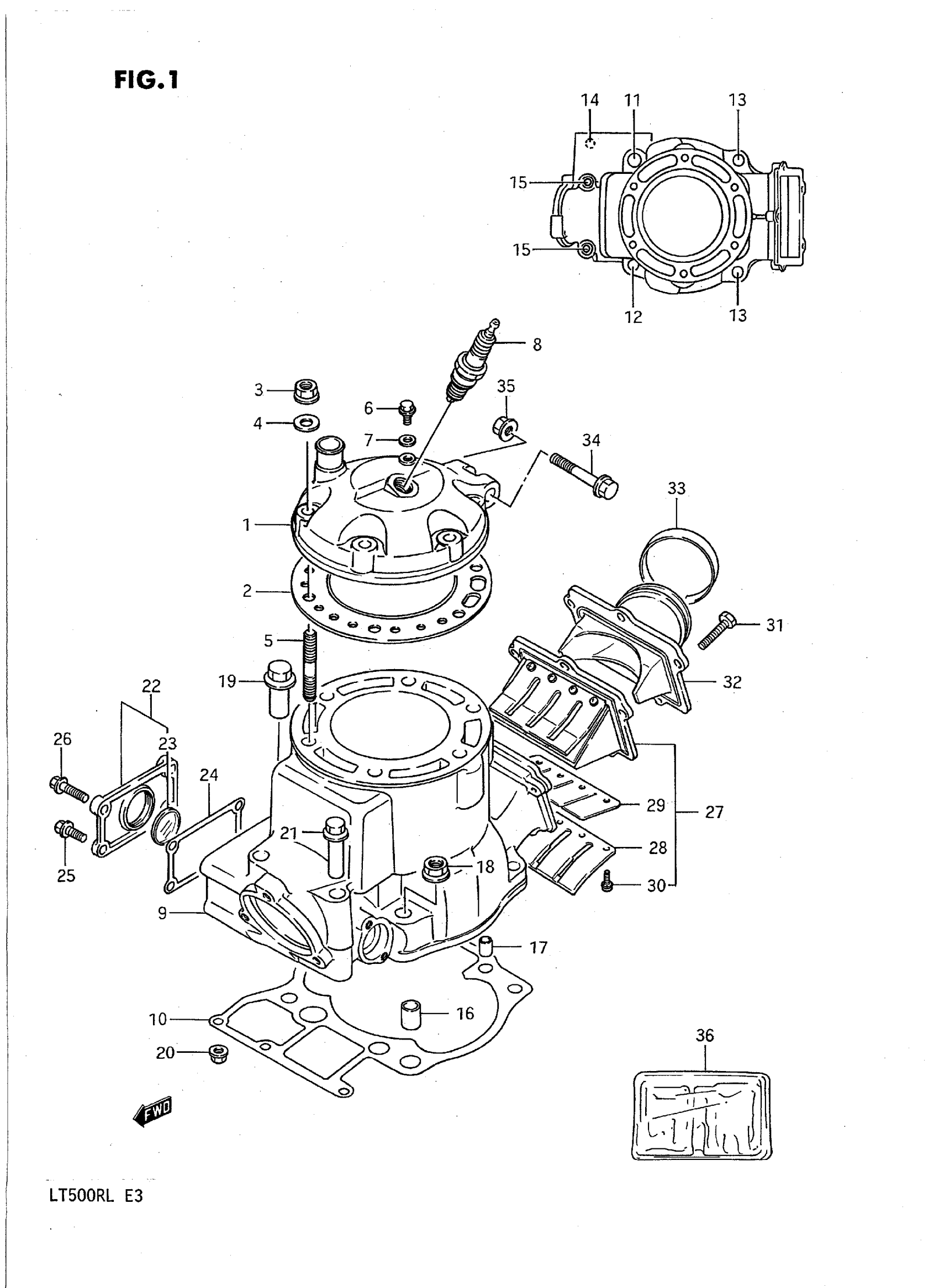

1990 Suzuki LT500RL Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, CYLINDER

11111-43B01

1
Out of stock

2

GASKET,CYL HEAD This part replaces 11141-43B01.

11141-43B20

1
Out of stock

3

NUT (CHROME) This part replaces 08316-16088.

08316-10087

6
Out of stock

4

WASHER

09164-08020

6
Out of stock

5

STUD BOLT (L:35)

09108-08143

6
Out of stock

6

BOLT, AIR DUCT

09360-06007

1
Out of stock

7

GASKET

09168-06004

1
Out of stock

8

SPARK PLUG (NGK,B8EGV)

09482-00208

1
Out of stock

9

CYLINDER

11210-43B00

1
Out of stock

10

GASKET,CYLINDER This part replaces 11241-43B00.

11241-43B10

1
Out of stock

11

NO DESCRIPTION AVAILABLE This part replaces 09108-10066.

09108-10066-XC0

1
Out of stock

12

BOLT,STUD This part replaces 09108-10091.

01421-1060A

1
Out of stock

13

STUD BOLT (10X30)

09108-10092

2
Out of stock

14

STUD BOLT This part replaces 01421-06208.

01421-0620A

1
Out of stock

15

BOLT,STUD This part replaces 01421-06458.

01421-0645A

2
Out of stock

16

PIN This part replaces 09206-13001.

04211-13189

1
Out of stock

17

PIN

04211-09129

1
Out of stock

18

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

3
Out of stock

19

NUT

09159-10065

1
Out of stock

20

NUT This part replaces 09159-06017.

08319-31067

1
Out of stock

21

NUT

09159-06042

2
Out of stock

22

COVER, CYLINDER | Includes Item(s) 23

11230-00B01

1
Out of stock

23

LENS

11232-01B00

1
Out of stock

24

GASKET, CYLINDER COVER (NA) This part replaces 11233-00B00.

11233-01C00

1
Out of stock

25

BOLT

01547-06167

1
Out of stock

26

BOLT

01547-06207

3
Out of stock

27

VALVE ASSY, REED | Includes Item(s) 28 - 30

13150-43B00

1
Out of stock

28

STOPPER

13152-43B00

2
Out of stock

29

VALVE, REED

13153-14200

2
Out of stock

30

SCREW This part replaces 02112-03087.

02112-0308A

8
Out of stock

31

BOLT This part replaces 01107-06207.

01500-06207

5
Out of stock

32

PIPE, INTAKE

13110-43B00

1
Out of stock

33

CLAMP This part replaces 09402-56208.

09402-56901

1
Out of stock

34

BOLT This part replaces 01517-08608.

01550-08607

1
Out of stock

35

NUT

08319-31087

1
Out of stock

36

NO DESCRIPTION AVAILABLE | OPT This part replaces 11400-43840.

11400-43845

1
Out of stock
