1987 Suzuki LT500R Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 1987 Suzuki LT500R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

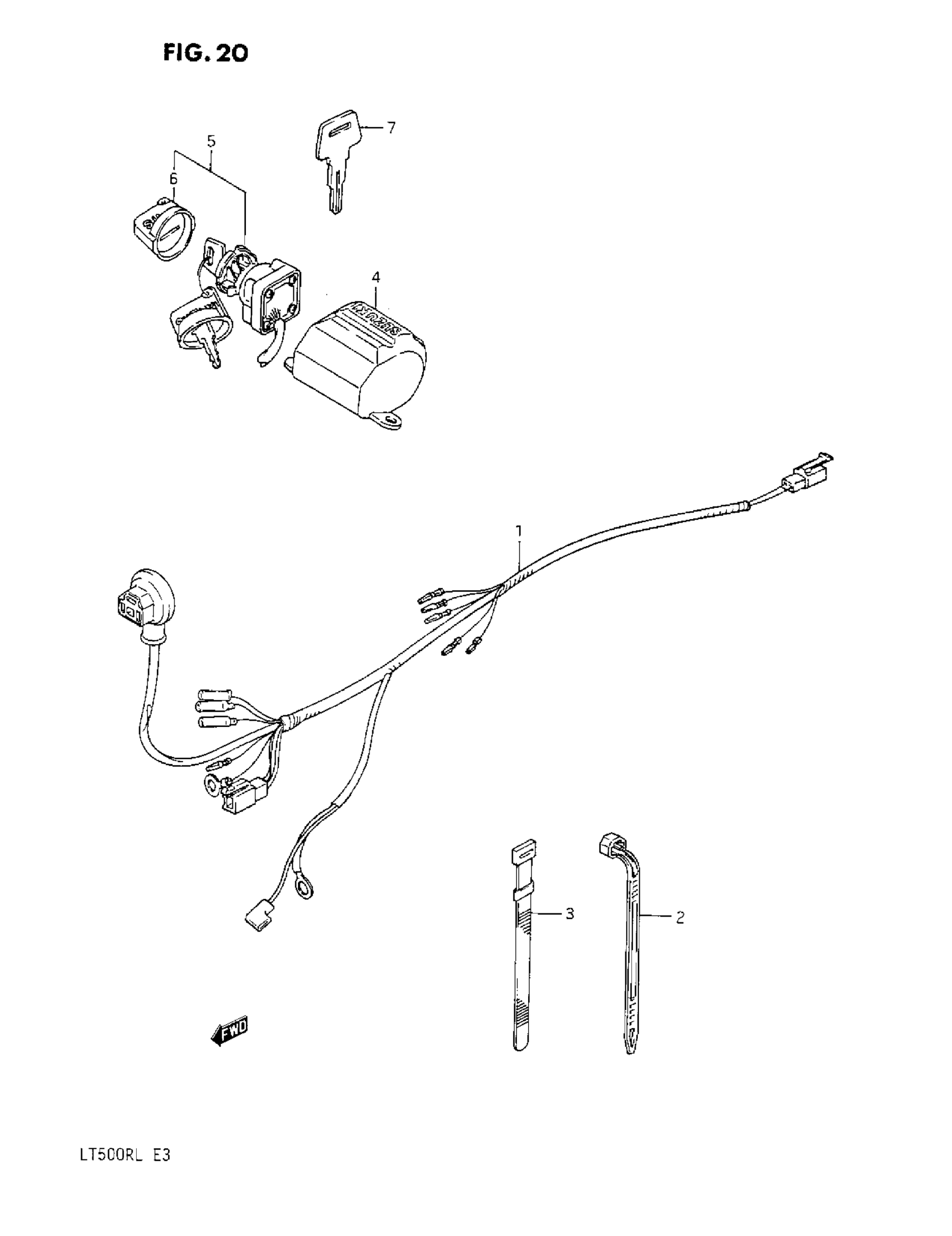

1987 Suzuki LT500R Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRING HARNESS

36610-43B00

1
Out of stock

2

CLAMP (L:125) | MODEL H

09407-14403

6
Out of stock

2

CLAMP (L:125) | MODEL J/K/L

09407-14403

4
Out of stock

2

CLAMP (L:165) | MODEL H

09407-18402

1
Out of stock

2

CLAMP (L:165) | MODEL J/K/L

09407-18402

2
Out of stock

2

CLAMP (L:235)

09407-30401

2
Out of stock

3

CLAMP (L:120)

09407-12402

1
Out of stock

4

NO DESCRIPTION AVAILABLE This part replaces 36380-19A00.

36380-19A0V

1
Out of stock

5

SWITCH ASSY,IGN This part replaces 37110-24201.

37110-24202

1
Out of stock

6

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

1
Out of stock

7

KEY,BLANK (TYPE:C) | OPT

37146-19B00

1
Out of stock

7

KEY,BLANK (TYPE:D) | OPT

37146-19B10

1
Out of stock
