1987 Suzuki LT500R Rear Wheel Diagram

← All diagrams

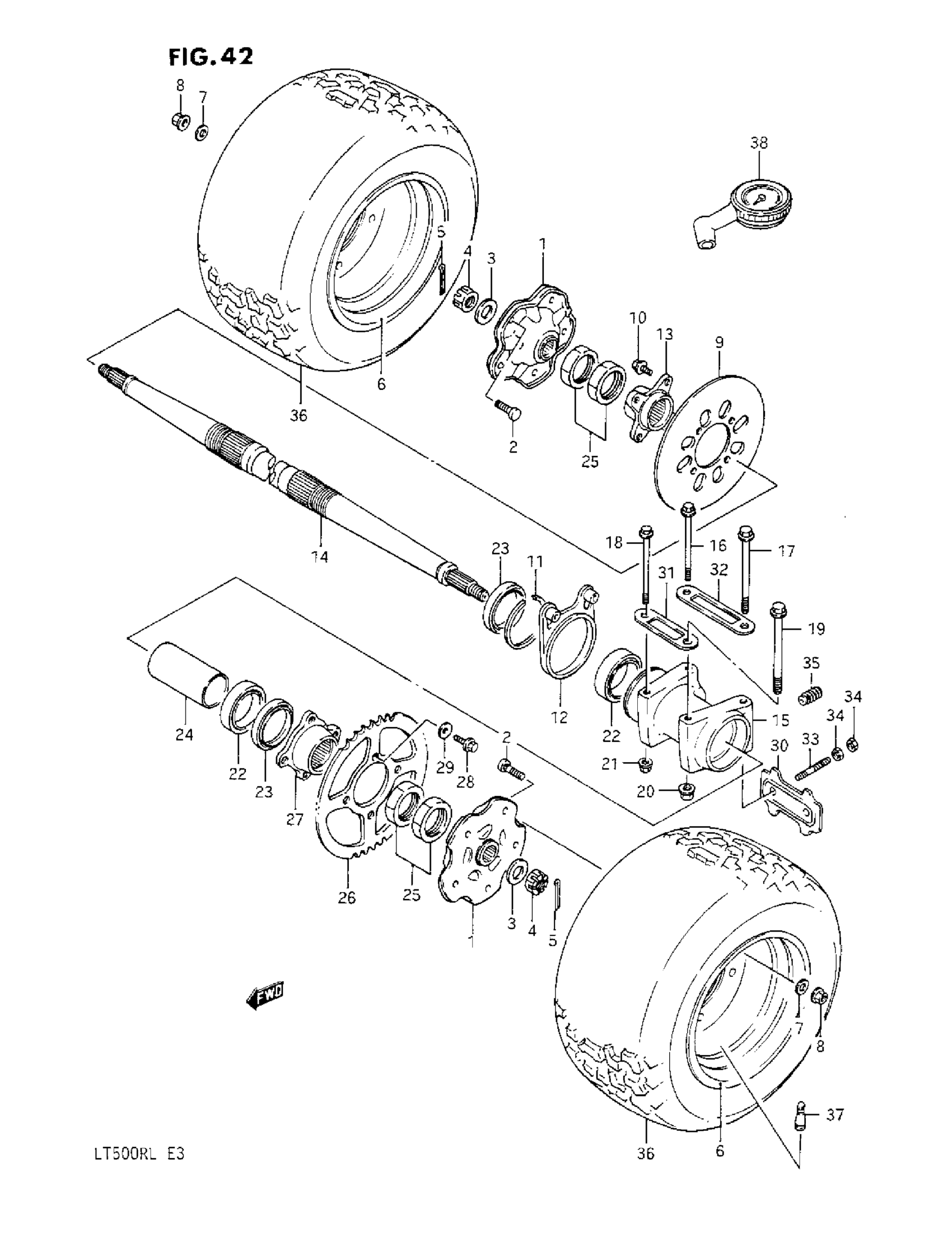

Find the part on the Rear Wheel diagram for your 1987 Suzuki LT500R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki LT500R Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR (BLUE)

64110-43B00-19F

2
Out of stock

2

10

$2.23

In stock

3

WASHER

09164-20002

2
Out of stock

4

NUT, HUB This part replaces 09141-20003.

09141-20002

2
Out of stock

5

PIN, COTTER This part replaces 04111-40408.

04111-4040A

2
Out of stock

6

RIM, REAR WHEEL

65310-43B00

2
Out of stock

7

WASHER This part replaces 08322-21108.

08322-01107

10
Out of stock

8

NUT, REAR SWGARM BRACKET This part replaces 09159-10066.

09159-10115

10
Out of stock

9

DISC, REAR BRAKE

69211-43B00

1
Out of stock

10

BOLT

09103-08147

4

$4.03

In stock

11

CIRCLIP

69729-43B00

1
Out of stock

12

BRACKET, CALIPER

69720-43B00

1
Out of stock

13

FLANGE, DISC

64212-43B00

1
Out of stock

14

AXLE, REAR

64710-43B00

1
Out of stock

15

NO DESCRIPTION AVAILABLE This part replaces 64715-43B00.

64715-43B0V

1
Out of stock

16

BOLT, REAR RH

09103-10076

1
Out of stock

17

BOLT, REAR LH

09103-12026

1
Out of stock

18

BOLT, FRONT RH

09103-10122

1
Out of stock

19

BOLT, FRONT LH

09103-12025

1
Out of stock

20

NUT This part replaces 08319-31128.

08319-3112A

2
Out of stock

21

NUT, RH

08319-31107

2
Out of stock

22

BEARING

08123-60107

2

$95.90

In stock

23

DUST SEAL

09283-60007

2
Out of stock

24

SPACER

64731-43B00

1
Out of stock

25

NUT, AXLE

64870-43B00

2
Out of stock

26

SPROCKET, REAR (NT:42) | MODEL H

64511-43B00

1
Out of stock

26

SPROCKET, REAR (NT:40) | MODEL H, OPT

64511-24520

1
Out of stock

26

SPROCKET, REAR (NT:41) | MODEL H, OPT

64511-24510

1
Out of stock

26

SPROCKET, REAR (NT:43) | MODEL H, OPT

64511-43B10

1
Out of stock

26

SPROCKET, REAR (NT:40) | MODEL J/K/L

64511-24520

1
Out of stock

26

SPROCKET, REAR (NT:38) | MODEL J/K/L, OPT

64511-24501

1
Out of stock

26

SPROCKET, REAR (NT:39) | MODEL J/K/L, OPT

64511-43B30

1
Out of stock

26

SPROCKET, REAR (NT:41) | MODEL J/K/L, OPT

64511-24510

1
Out of stock

26

SPROCKET, REAR (NT:42) | MODEL J/K/L, OPT

64511-43B00

1
Out of stock

26

SPROCKET, REAR (NT:43) | MODEL J/K/L, OPT

64511-43B10

1
Out of stock

27

FLANGE

64611-43B00

1
Out of stock

28

BOLT This part replaces 09103-10171.

09103-10354

4
Out of stock

29

WASHER

09164-10008

4
Out of stock

30

PLATE, CHAIN ADJUSTER

61421-01C01

1
Out of stock

31

WASHER, FRONT

64718-43B00

1
Out of stock

32

WASHER, REAR

64719-43B00

1
Out of stock

33

BOLT,STUD This part replaces 09108-08209.

09108-08209-XC0

2
Out of stock

34

4

$1.93

In stock

35

BOOT

61425-43B00

2
Out of stock

36

TIRE, T/L REAR (AT20X11-10) | BS, MODEL H This part replaces 65100-43B30.

65100-43B71

2
Out of stock

36

TIRE, T/L REAR (AT20X11-10) | DUNLOP, MODEL H This part replaces 65100-43B50.

65100-43B80

2
Out of stock

36

TIRE, T/L REAR (AT20X11-10) | BS, MODEL J/K This part replaces 65100-43B70.

65100-43B71

2
Out of stock

36

TIRE, T/L REAR (AT20X11-10) | DUNLOP, MODEL J

65100-43B80

2
Out of stock

36

TIRE, T/L REAR (AT20X11-10) | BS, MODEL L

65100-43B71

2
Out of stock

37

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

2
Out of stock

38

GAUGE ASS'Y, AIR PRESSURE

96200-18900

1
Out of stock
