1987 Suzuki LT500R Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 1987 Suzuki LT500R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

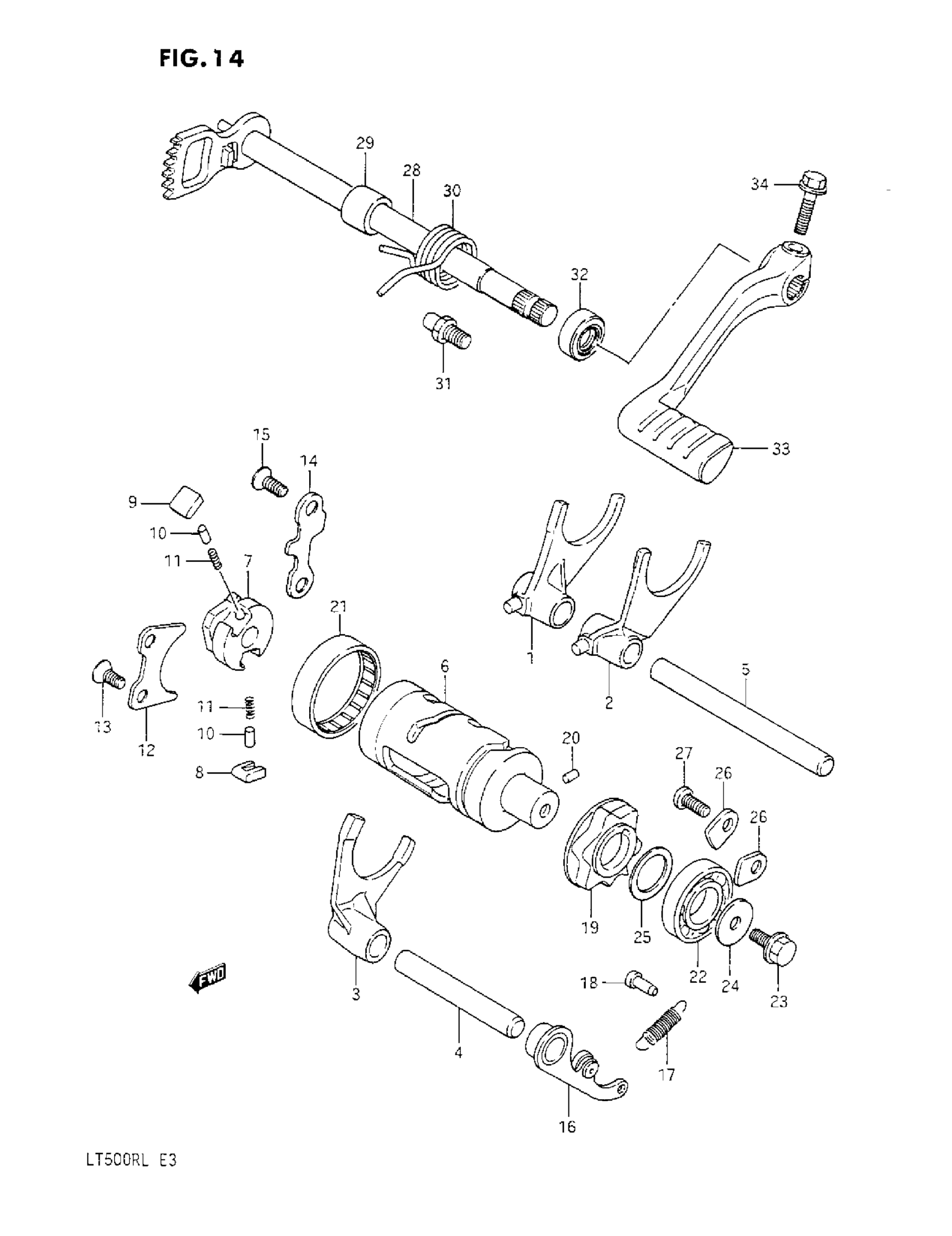

1987 Suzuki LT500R Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, NO.1

25211-43B00

1
Out of stock

2

FORK, NO.2

25221-43B00

1
Out of stock

3

FORK, NO.3

25231-43B00

1
Out of stock

4

SHAFT, FORK NO.2 | L:75 This part replaces 25421-14A00.

25421-14A02

1
Out of stock

5

SHAFT, GEAR SHIFT FORK (L:109 | L:109

25411-16701

1
Out of stock

6

CAM, GEAR SHIFTING

25310-43B00

1
Out of stock

7

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

1
Out of stock

8

PAWL, GEAR SHIFT NO.1

25323-34201

1
Out of stock

9

PAWL, GEAR SHIFT NO.2

25324-34201

1
Out of stock

10

ROLLER

09261-05003

2
Out of stock

11

SPRING

09440-04003

2
Out of stock

12

LIFTER,GEAR SHIFT POLE

25331-14A00

1
Out of stock

13

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

14

STOPPER

25341-43B00

1
Out of stock

15

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

16

STOPPER, CAM

25350-43B00

1
Out of stock

17

SPRING

09443-09040

1
Out of stock

18

HOOK

09223-04001

1
Out of stock

19

PLATE

25381-14310

1
Out of stock

20

PIN This part replaces 06211-04063.

04221-04069

1
Out of stock

21

BEARING, RH

09263-41002

1
Out of stock

22

BEARING, LH

09262-17019

1
Out of stock

23

BOLT This part replaces 01517-06128.

01550-06127

1
Out of stock

24

WASHER

08211-06223

1
Out of stock

25

WASHER

08211-17243

1
Out of stock

26

RETAINER This part replaces 24741-20A10.

24741-21A00

2
Out of stock

27

SCREW This part replaces 02112-06128.

02112-06127

2
Out of stock

28

SHAFT, GEAR SHIFTING

25510-43B00

1
Out of stock

29

SPACER

09180-12083

1
Out of stock

30

SPRING

09444-26013

1
Out of stock

31

STOPPER, ARM This part replaces 25671-01000.

25671-01011

1
Out of stock

32

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

33

LEVER ASS'Y

25611-19A01

1
Out of stock

34

BOLT This part replaces 01517-06257.

01550-06257

1
Out of stock
