1987 Suzuki LT500R AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1987 Suzuki LT500R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

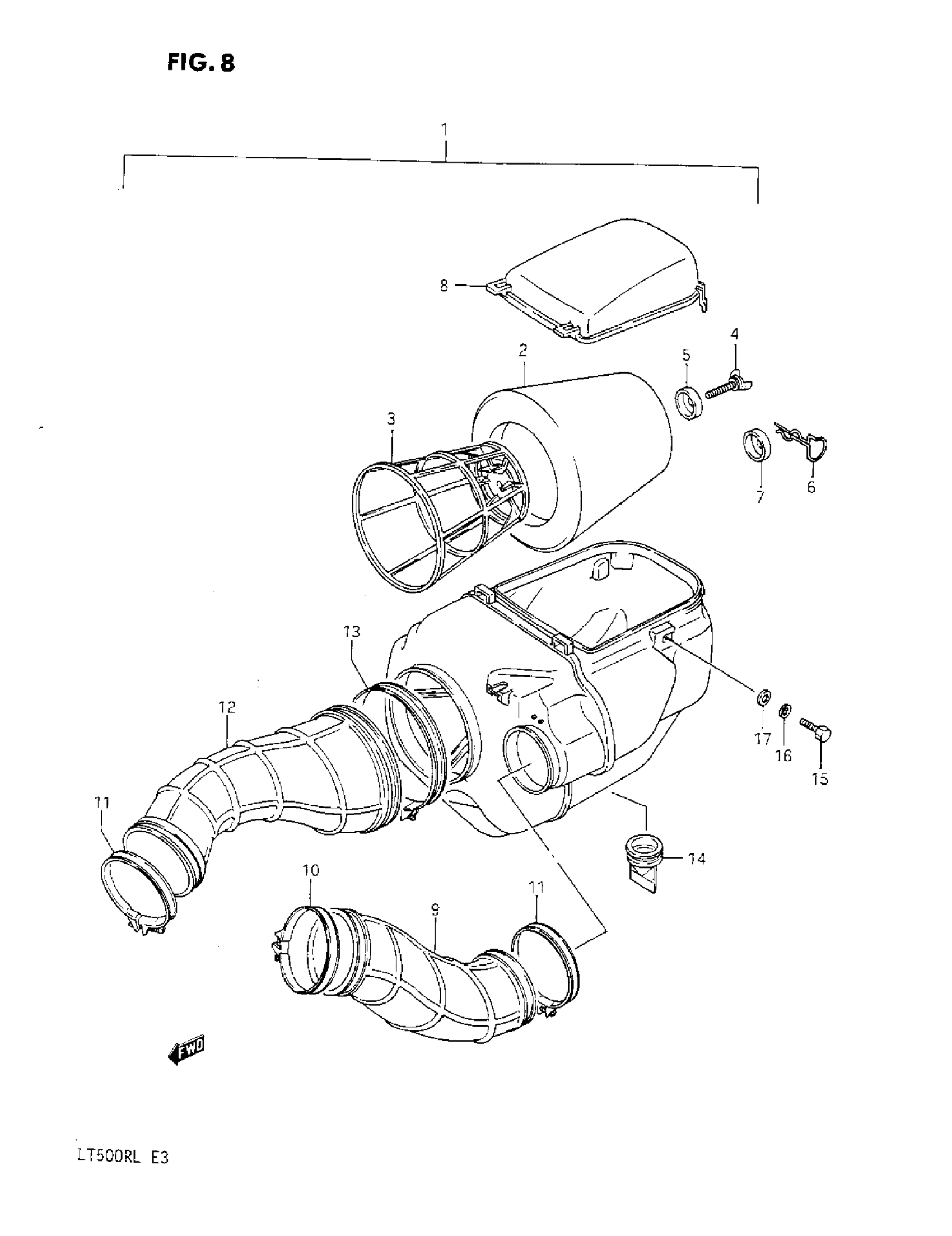

1987 Suzuki LT500R AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | MODEL H This part replaces 13700-43B00.

13700-43B01

1
Out of stock

1

CLEANER ASS'Y, AIR | MODEL J/K/L

13700-43B01

1
Out of stock

2

FILTER

13780-43B00

1
Out of stock

3

HOLDER, FILTER | MODEL H

13791-43B00

1
Out of stock

3

HOLDER, FILTER | MODEL J/K/L

13791-43B01

1
Out of stock

4

BOLT, WING | MODEL H

13837-43B00

1
Out of stock

5

WASHER | MODEL H This part replaces 13792-40400.

13792-13A01

1
Out of stock

6

PIN, SNAP | MODEL J/K/L

13823-43B00

1
Out of stock

7

WASHER | MODEL J/K/L

13796-20400

1
Out of stock

8

CAP

13740-43B00

1
Out of stock

9

TUBE, INLET

13891-43B00

1
Out of stock

10

CLAMP

09402-66208

1
Out of stock

11

CLAMP This part replaces 09402-70207.

09402-70902

2
Out of stock

12

TUBE OUTLET This part replaces 13881-43B00.

13881-43B01

1
Out of stock

13

CLAMP

13826-43B00

1
Out of stock

14

TUBE, DRAIN

13873-18900

1
Out of stock

15

4

$2.10

In stock

16

4

$2.28

In stock

17

WASHER This part replaces 08322-21067.

08322-01067

4
Out of stock
