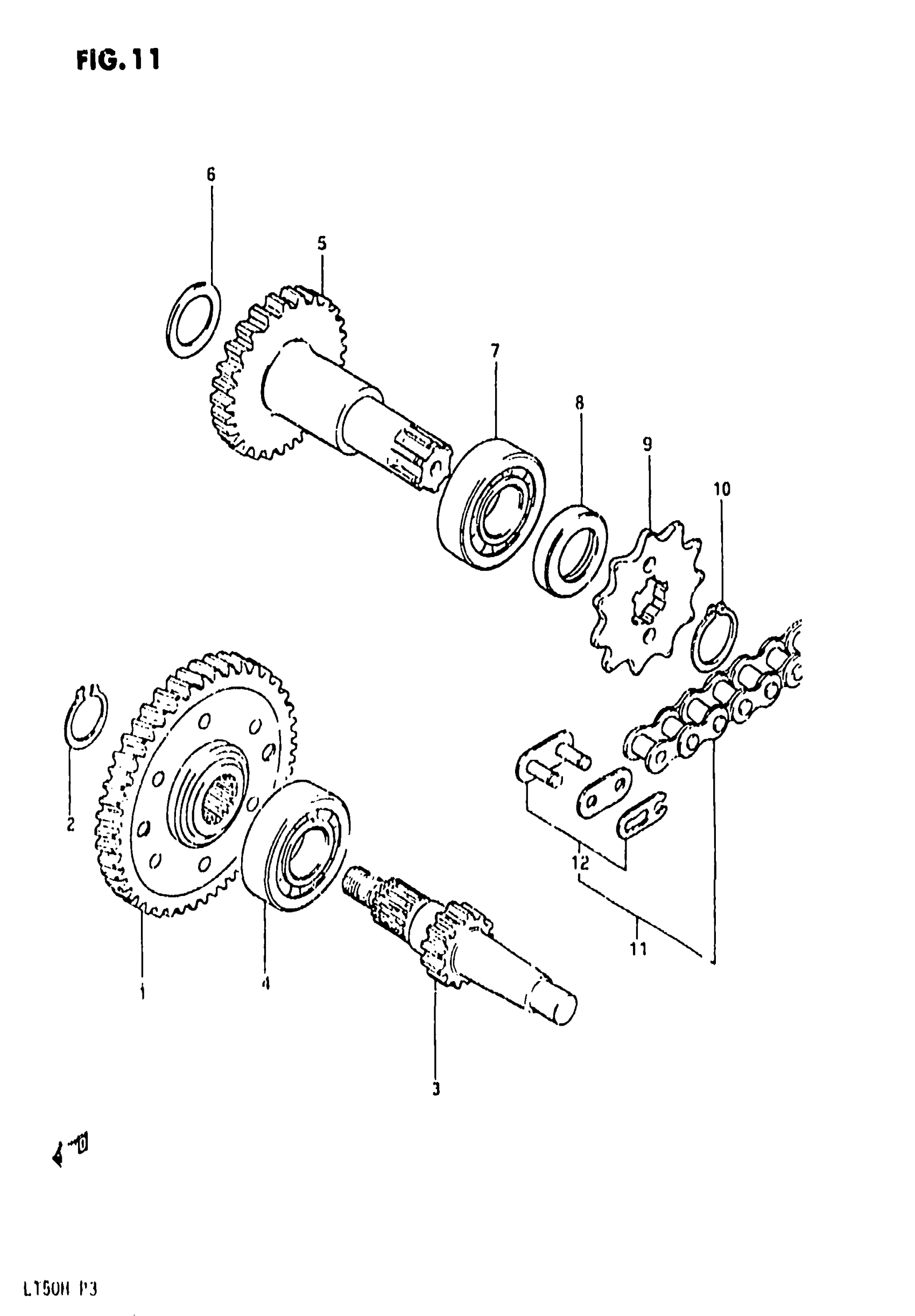

Suzuki LT50 (1987) TRANSMISSION Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | MODEL E/F This part replaces 21200-04001.

21200-04501

Unavailable

1

GEAR ASSY, PRIMARY DRIVEN | MODEL G/H This part replaces 21200-04500.

21200-04501

Unavailable

2

CIRCLIP

09380-17003

$2.67

3

COUNTER SHAFT

24121-04400

Unavailable

4

BEARING

09262-17023

$15.57

5

DRIVE SHAFT

24130-04400

Unavailable

6

WASHER, 2ND DRIVE GEAR This part replaces 08211-17301.

09181-17223

$2.81

7

BEARING

09262-17023

$15.57

8

OIL SEAL

09283-17001

$3.59

9

SPROCKET, ENGIN This part replaces 27511-22700.

27511-01701

$20.55

10

CIRCLIP

08331-31169

$1.86

11

CHAIN ASSY,DRIV | Includes Item(s) 12 This part replaces 27600-04440.

27600-01012-078

$19.52

12

JOINT (RK)

27620-01023

Unavailable

12

JOINT (DID)

27620-01012

$7.75
