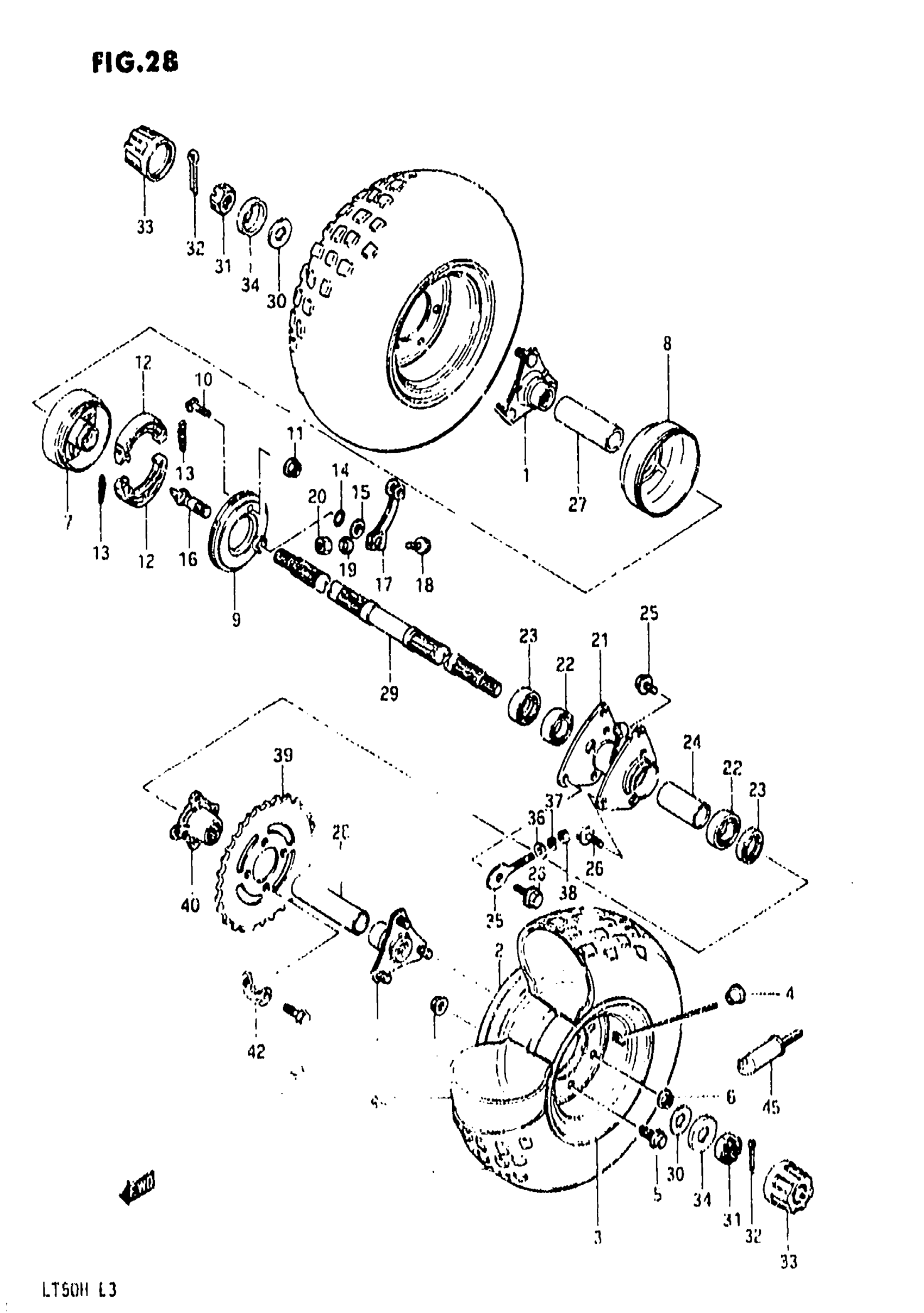

Suzuki LT50 (1987) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR This part replaces 64110-04610.

64110-04611

Unavailable

2

RIM, WHEEL, INNAR (4.500x6) | MODEL E This part replaces 65312-04600-13T.

65312-04600-13L

$70.25

2

RIM, WHEEL, INNAR (4.500x6) | MODEL F/G This part replaces 65312-04600-19T.

65312-04600-13L

$70.25

2

WHEEL, INNER (SILVER) | MODEL H

65312-04600-13L

$70.25

3

RIM, WHEEL, OUTER (4.500x6) | MODEL E This part replaces 65313-04600-13T.

65313-04600-13L

$70.25

3

RIM, WHEEL, OUTER (4.500x6) | MODEL F/G This part replaces 65313-04600-19T.

65313-04600-13L

$70.25

3

WHEEL, OUTER (SILVER) | MODEL H

65313-04600-13L

$70.25

4

BUSH This part replaces 09305-08006.

09320-08065

$2.55

5

BOLT (8X12) | MODEL E/F/G This part replaces 01517-08126.

01550-0812A

$2.38

5

BOLT | MODEL H This part replaces 01517-08128.

01550-08127

$2.15

6

NUT (CHROME) | MODEL E/F/G This part replaces 08316-16086.

08316-10087

$2.31

6

NUT (CHROME) | MODEL H This part replaces 08316-16088.

08316-10087

$2.31

7

DRUM, REAR BRAKE

64121-04600

Unavailable

8

COVER, REAR BRAKE

64123-04600

$38.32

9

PANEL, REAR HUB

64210-04601

Unavailable

10

BOLT This part replaces 64251-04600.

09119-08091

Unavailable

11

NUT This part replaces 08316-26088.

08316-20087

$3.00

12

SHOE SET, BRAKE This part replaces 64410-04601.

64400-04811

$25.14

13

SPRING This part replaces 09443-07001.

09443-07025

$1.68

14

O RING (D:2.4,ID:9.6) This part replaces 09280-10006.

09280-10013

$3.45

15

WASHER This part replaces 09160-10026.

09160-10121

$2.13

16

CAM, BRAKE

64441-04600

Unavailable

17

LEVER, BRAKE CAM

64451-04600

Unavailable

18

BOLT, BRAKE CAM LEVER This part replaces 09103-05005.

01550-0525A

$2.58

19

WASHER This part replaces 08322-21058.

08322-01057

$1.93

20

NUT This part replaces 08310-11058.

08310-00057

$1.89

21

HOUSING, AXLE BEARING

64720-04600

Unavailable

22

BEARING

08113-69057

$41.35

23

OIL, SEAL

64729-04601

$8.30

24

SPACER, AXLE BEARING

64731-04600

Unavailable

25

BOLT M8X16 This part replaces 01517-08167.

01550-08167

$2.80

26

BOLT, REAR LH This part replaces 01517-08208.

01550-08207

$2.80

27

SPACER, AXLE RH

64741-04600

$14.07

28

SPACER, AXLE LH

64751-04600

$20.33

29

AXLE, REAR This part replaces 64711-04610.

64711-04611

Unavailable

30

WASHER,REAR AXLE This part replaces 64723-02400.

64723-02410

$5.10

31

NUT This part replaces 08314-31168.

08314-3116A

$4.20

32

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.41

33

CAP

54725-04200

Unavailable

34

HOLDER

64726-04200

$4.93

35

ADJUSTER, CHAIN

61411-04600

$4.85

36

WASHER This part replaces 08322-21067.

08322-01067

$1.93

37

LOCK WASHER This part replaces 08321-21067.

08321-01067

$1.89

38

.NUT This part replaces 08310-11067.

08310-00067

$1.91

39

SPROCKET,REAR,N This part replaces 64511-01739.

64511-01800

$59.13

40

FLANGE, MOUNTING

64611-04600

Unavailable

41

BOLT This part replaces 64541-04600.

09100-08298

$7.70

42

WASHER

09169-08011

$2.25

43

TIRE (145/70-6) | GOLDEN BOY

55100-04605

Unavailable

44

TUBE

55200-04605

$58.32

45

GAUGE ASSY,AIR PRESSUR | MODEL H This part replaces 96200-18A00.

96200-18A02

$66.48
