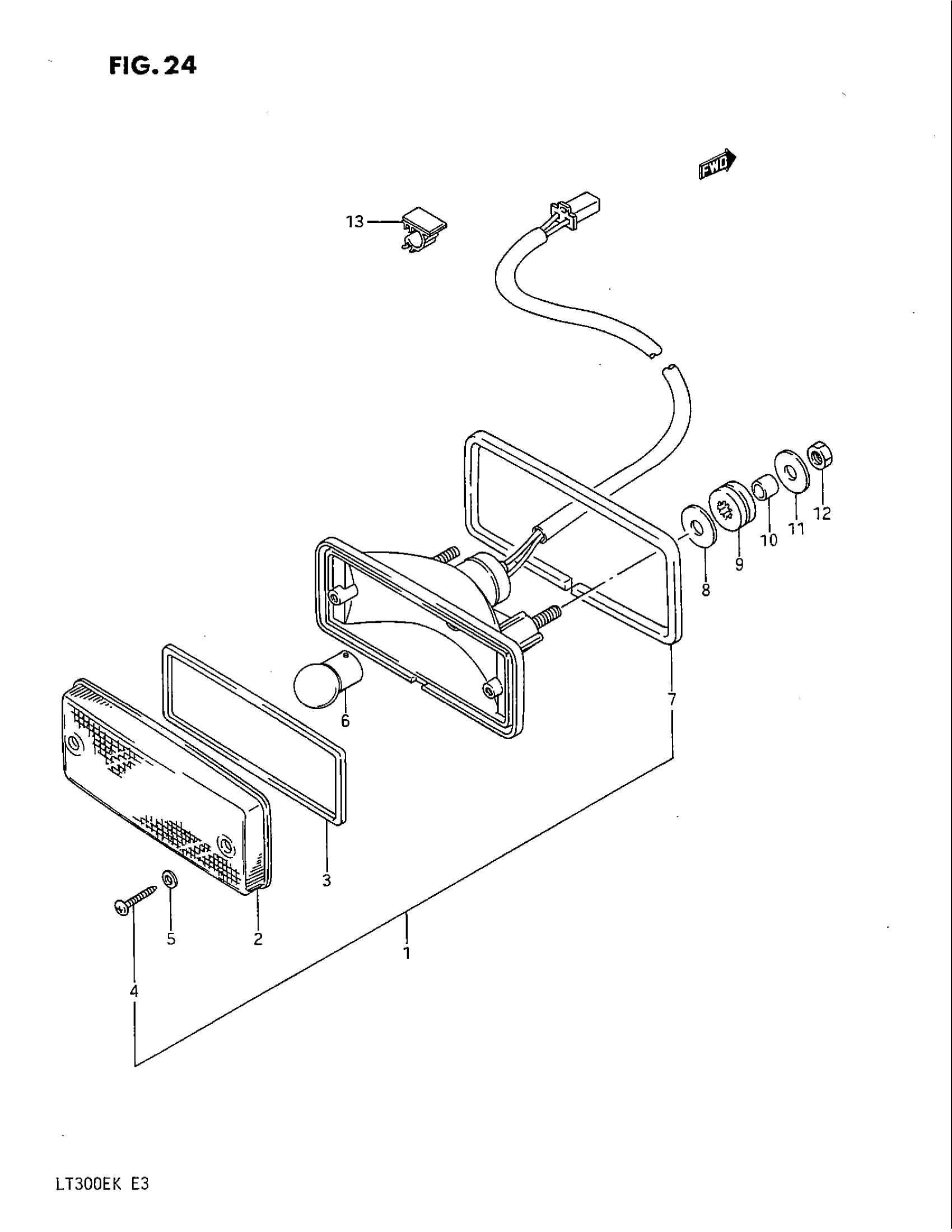

Suzuki LT300E (1989) TAIL LAMP Diagram

#

Description
Price

1

LAMP ASSY, TAIL | Includes Item(s) 2 - 7 This part replaces 35710-41B01.

35710-41B02

Unavailable

2

LENS This part replaces 35712-18A31.

35712-18A32

$51.14

3

GASKET

35713-18A30

$10.92

4

SCREW

03212-04169

$1.36

5

GASKET

35627-43010

$2.29

6

BULB (12V,5W)

09471-12058

$2.19

7

CUSHION

35733-41B00

Unavailable

8

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.89

9

CUSHION

35765-35300

$4.92

10

SPACER

35766-26470

$2.67

11

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

$1.89

12

NUT This part replaces 08310-11066.

08310-0006A

$1.83

13

CLAMP This part replaces 09403-07315.

09403-04310

$5.82
