1989 Suzuki LT300E Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 1989 Suzuki LT300E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

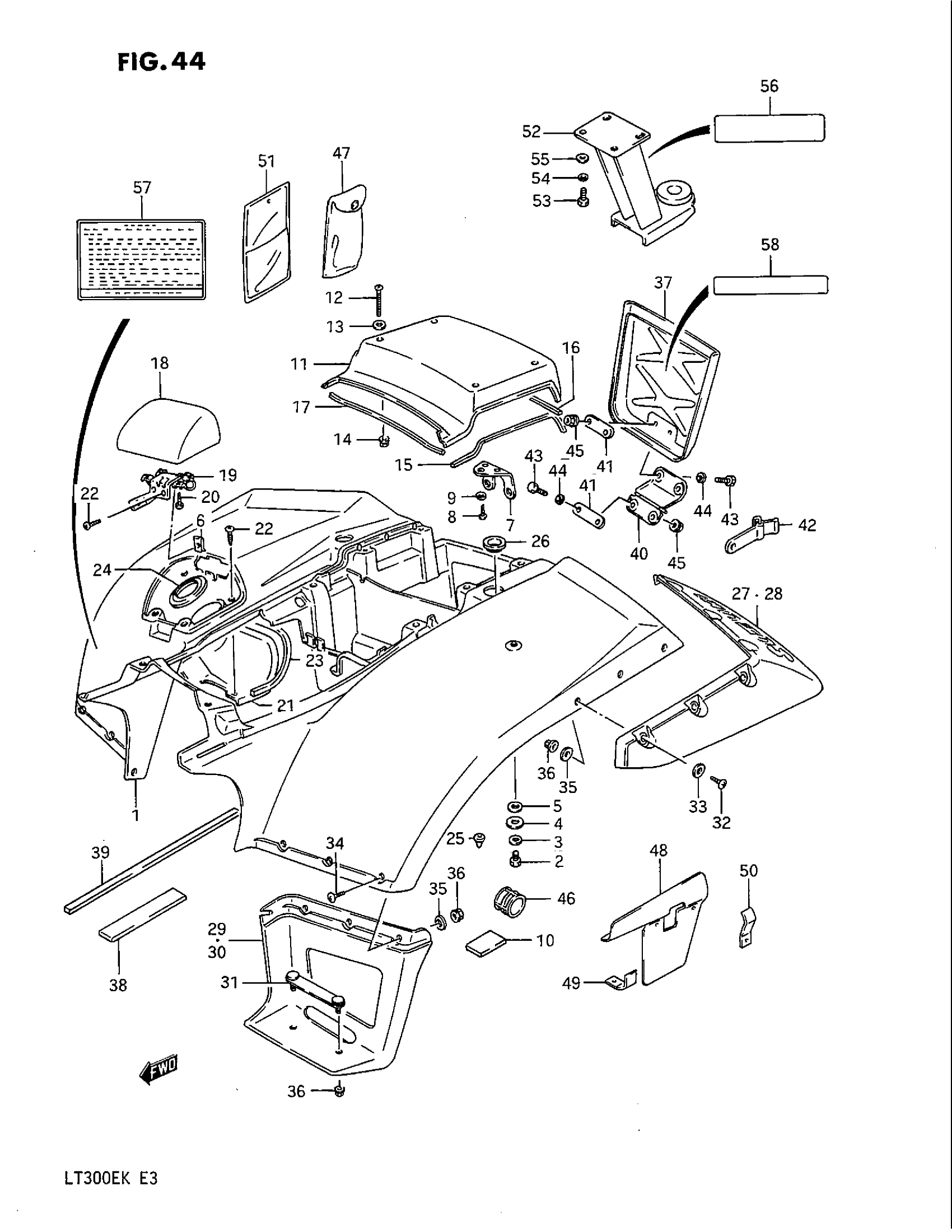

1989 Suzuki LT300E Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, REAR (ORANGE)

63111-41B00-25G

1
Out of stock

2

2

$1.90

In stock

3

2

$1.97

In stock

4

2

$2.05

In stock

5

WASHER (6.5X20X1.2) This part replaces 09160-06038.

09160-06077

2
Out of stock

6

NUT

53141-41B00

2
Out of stock

7

PLATE, TAIL LAMP

63155-41B01

1
Out of stock

8

3

$2.17

In stock

9

3

$1.97

In stock

10

CUSHION, BRACKET

63191-41B00

2
Out of stock

11

COVER, UPPER | TO 63171-41B01WITH 02112-05455,08322-21055 This part replaces 63171-41B00.

63171-41B01

1
Out of stock

11

COVER, UPPER

63171-41B01

1
Out of stock

12

4

$2.42

In stock

13

4

$1.97

In stock

14

NUT This part replaces 08319-31056.

08319-3105B

4
Out of stock

15

MOLDING (L:370)

63175-41B00

2
Out of stock

16

MOLDING (L:370) This part replaces 63176-41B00.

63175-41B00

1
Out of stock

17

MOLDING (L:300)

63177-41B00

1
Out of stock

18

LID, FUEL (ORANGE)

63195-41B01-25G

1
Out of stock

19

HINGE, LID

93140-41B00

1
Out of stock

20

2

$0.49

In stock

21

GUARD, LID

63250-41B00

1
Out of stock

22

4

$1.47

In stock

23

CUSHION, LID

47169-34A00

2
Out of stock

24

JOINT, FUEL INLET

44261-41B00

1
Out of stock

25

PLUG

09250-11002

1

$2.58

In stock

26

2

$3.83

In stock

27

MUD GUARD, RH

63331-18A00

1
Out of stock

28

MUD GUARD, LH

63341-18A00

1
Out of stock

29

MUD GUARD, FRONT RH

63351-41B00

1
Out of stock

30

MUD GUARD, FRONT LH

63361-41B00

1
Out of stock

31

PLATE, FRONT This part replaces 63340-19B01.

63341-19B10

2
Out of stock

32

12

$2.48

In stock

33

12

$1.24

In stock

34

SCREW

09139-05038

8

$2.48

In stock

35

WASHER (5.5X20X1.4) This part replaces 09160-05039.

09160-05046

20
Out of stock

36

NUT This part replaces 08319-31056.

08319-3105B

24
Out of stock

37

LID, BOX

93121-41B00

1
Out of stock

38

MOLDING (L:230)

93125-41B00

1
Out of stock

39

MOLDING (L:520)

93126-41B00

1
Out of stock

40

HINGE, LID

93130-41B00

1
Out of stock

41

PLATE, HINGE

93141-41B00

2
Out of stock

42

BAND, LID

93190-41B00

2
Out of stock

43

4

$1.90

In stock

44

4

$1.97

In stock

45

.NUT This part replaces 08319-21065.

08319-2106B

4
Out of stock

46

CUSHION | MODEL H/J

44542-49200

2
Out of stock

46

CUSHION | MODEL K This part replaces 44542-41B00.

44542-49200

2
Out of stock

47

TOOL ASSY This part replaces 09800-20001.

09800-21075

1
Out of stock

48

SHIELD, HEAT (ASB) | MODEL H

63263-41B00

1
Out of stock

48

SHIELD, HEAT | MODEL J/K

63263-41B10

1
Out of stock

49

CLAMP

63198-41B00

1
Out of stock

50

CLAMP

63199-41B00

2
Out of stock

51

BAG, OWNERS MANUAL

94980-18B00

1
Out of stock

52

TOW SET, TRAILER | OPT; Includes Item(s) 53 - 56

95200-41810

1
Out of stock

53

BOLT, REAR | OPT This part replaces 01107-08207.

01500-08207

4
Out of stock

54

4

$2.28

In stock

55

WASHER | OPT This part replaces 08322-11088.

08322-01087

4
Out of stock

56

LABEL, WARNING | OPT

68617-19B00

1
Out of stock

56

LABEL, WARNING (FRENCH) | OPT

68617-19B10

1
Out of stock

57

LABEL, WARNING

68366-18950-7ZS

1
Out of stock

58

LABEL This part replaces 68614-18900.

68391-14D00

1
Out of stock
