1989 Suzuki LT300E Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 1989 Suzuki LT300E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

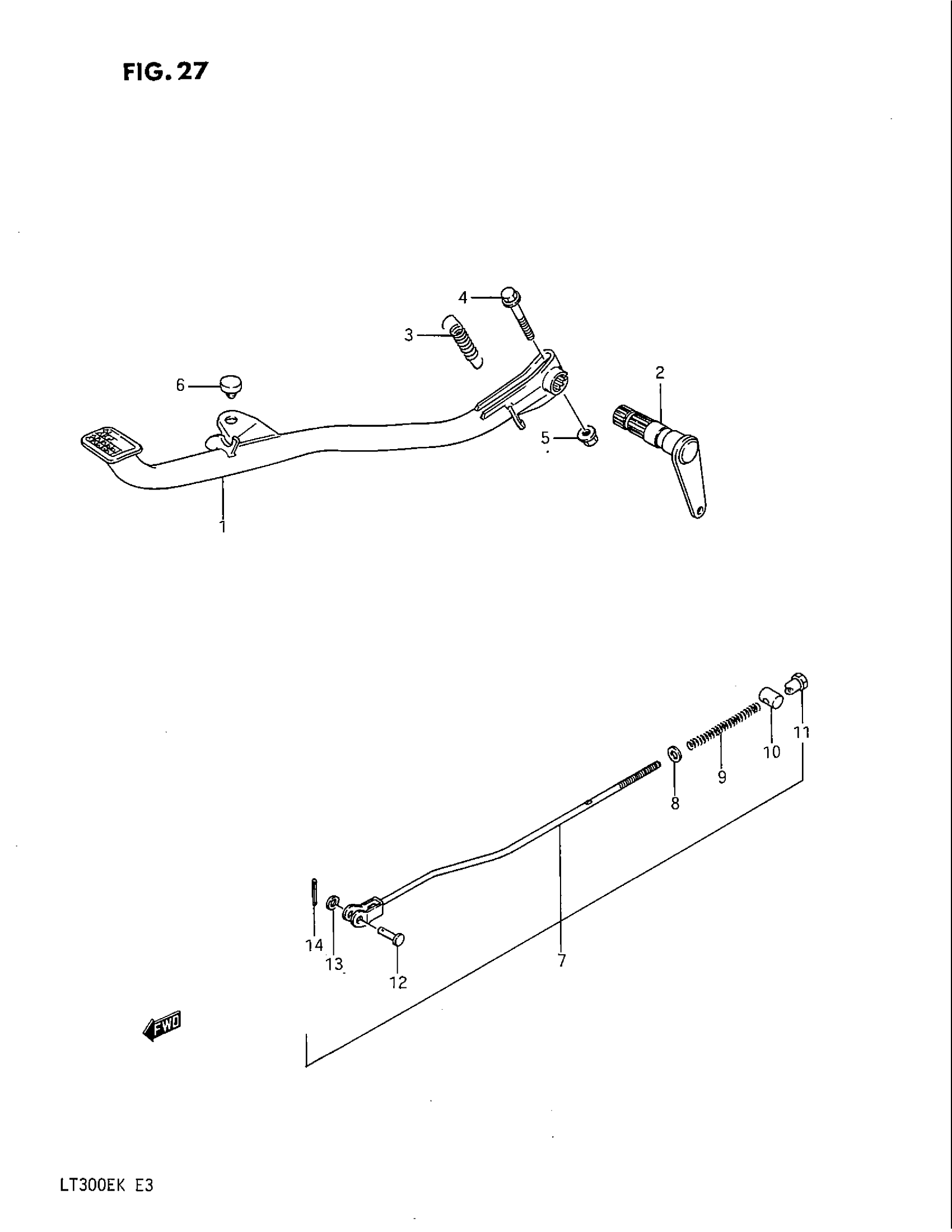

1989 Suzuki LT300E Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL H/J This part replaces 43110-41B00.

43110-41B01

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 43110-41B10.

43110-41B01

1
Out of stock

2

ARM, BRAKE PEDAL ROD

43120-41B00

1
Out of stock

3

SPRING

09443-15017

1
Out of stock

4

BOLT, LH This part replaces 01517-08508.

01550-08507

1
Out of stock

5

NUT

08319-31087

1
Out of stock

6

CUSHION

09321-10012

1
Out of stock

7

NO DESCRIPTION AVAILABLE | MODEL H/J This part replaces 43300-41B01.

43300-41X50

1
Out of stock

7

NO DESCRIPTION AVAILABLE | MODEL K; Includes Item(s) 8 - 14 This part replaces 43300-41B10.

43300-41X51

1
Out of stock

8

WASHER | MODEL H/J This part replaces 08322-21067.

08322-01067

1
Out of stock

8

.WASHER | MODEL K This part replaces 08322-21066.

08322-0106B

1
Out of stock

9

SPRING

09440-09004

1
Out of stock

10

PIN, REAR

09209-13006

1
Out of stock

11

.NUT This part replaces 09150-06009.

09150-06010

1
Out of stock

12

PIN, FRONT

09200-06013

1
Out of stock

13

WASHER | MODEL H/J This part replaces 08322-21067.

08322-01067

1
Out of stock

13

.WASHER | MODEL K This part replaces 08322-21066.

08322-0106B

1
Out of stock

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock
