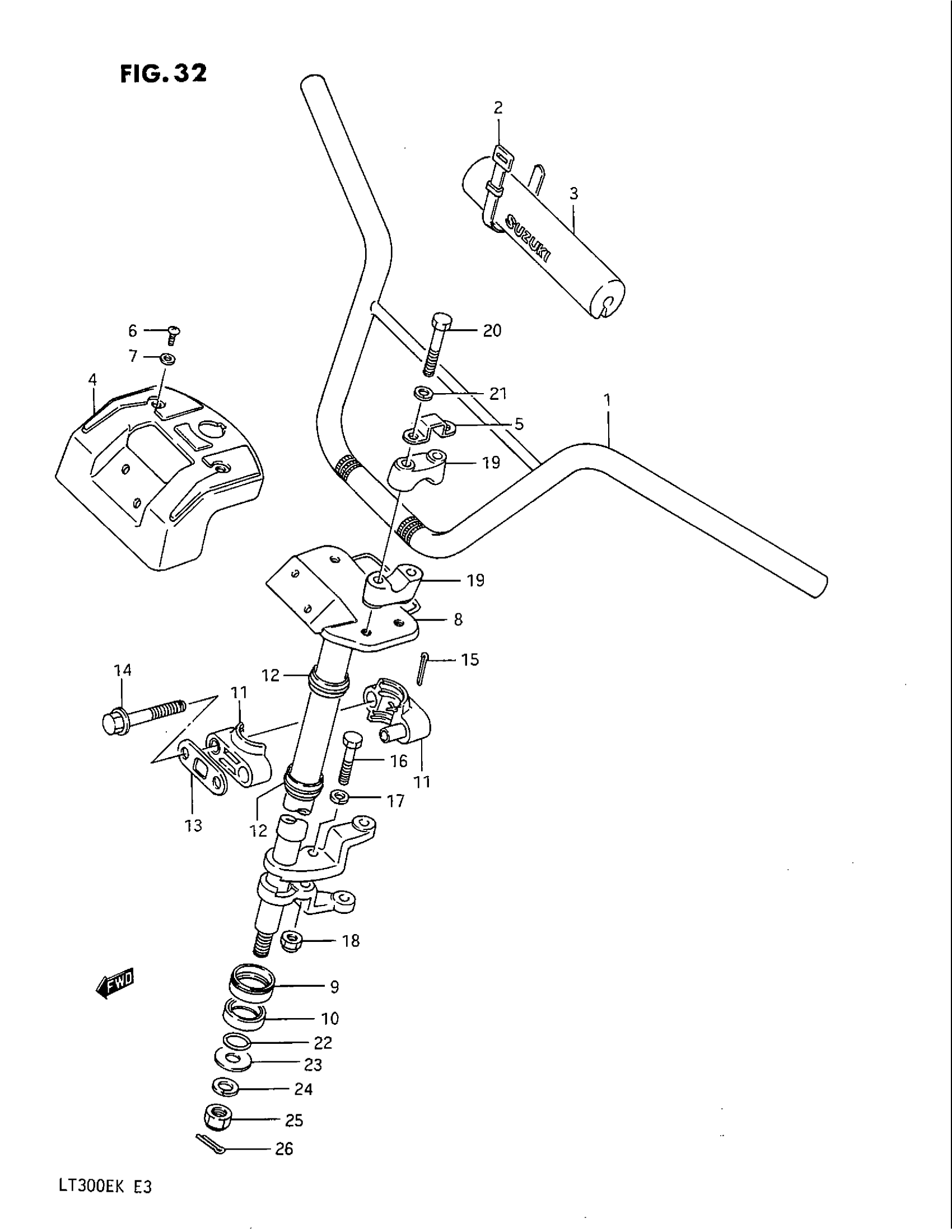

Suzuki LT300E (1989) HANDLEBAR - STEERING Diagram

#

Description
Price

1

HANDLEBAR (BLACK) | MODEL H/J This part replaces 56110-41B00-291.

56110-41B01-291

Unavailable

1

HANDLEBAR (BLACK) | MODEL K

56110-41B01-291

Unavailable

2

BAND | MODEL H/JMODEL K

09407-14407

$2.80

3

PAD, CROSS | MODEL H/J

56172-41B00

Unavailable

3

PAD, CROSS | MODEL K This part replaces 56172-46501.

56172-41B00

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 56171-41B00.

56171-41B01

Unavailable

5

PLATE, STEERING COVER

56190-41B00

Unavailable

6

SCREW This part replaces 02112-05125.

02112-0512A

$1.45

7

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.83

8

SHAFT, STEERING

51650-41B01

Unavailable

9

SEAL,DUST This part replaces 51662-19A01.

51662-05G01

$5.87

10

SEAL,DUST This part replaces 51663-24500.

51663-05G01

$6.53

11

HOLDER,STEERING SHAFT

51670-24500

$21.72

12

DUST SEAL, STEERING

51678-24500

$6.25

13

REINFORCEMENT

51681-24500

Unavailable

14

BOLT

09103-08116

Unavailable

15

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

16

BOLT, STEERING ARM

09103-08142

Unavailable

17

WASHER,8.5X16X2 This part replaces 09160-08050.

09160-08144

$2.97

18

NUT This part replaces 08319-21088.

08319-2108A

$2.13

19

CLAMP, HANDLEBAR (BLACK)

56211-27200-291

$20.22

20

BOLT This part replaces 01107-08555.

01500-0855B

$3.19

21

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.83

22

O RING

09280-17003

$1.64

23

WASHER (12.5X32X4.5) This part replaces 09160-12043.

09160-12094

$4.03

24

WASHER,LOCK This part replaces 08321-21125.

08321-0112A

$2.08

25

NUT This part replaces 08319-21125.

08319-2112B

$5.63

26

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22
