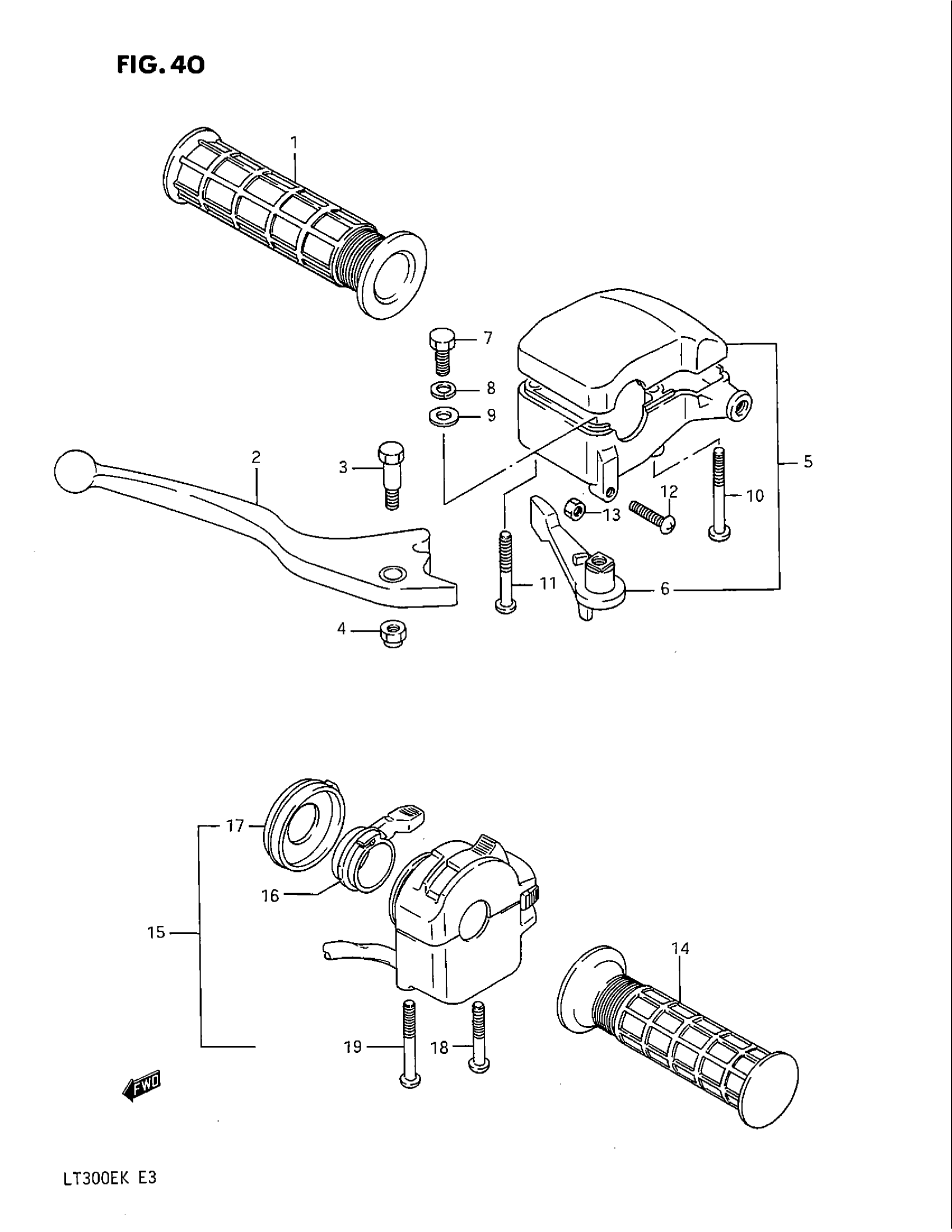

Suzuki LT300E (1989) HANDLE SWITCH Diagram

#

Description
Price

1

GRIP This part replaces 57211-19A03-291.

57211-19A04-291

$10.75

2

LEVER, BRAKE This part replaces 57420-05A00.

57420-49101

$31.26

3

BOLT

57431-05A00

$8.17

4

.NUT This part replaces 08319-21065.

08319-2106B

$2.31

5

CASE ASSY, THROTTLE | Includes Item(s) 6 - 13

57100-41B00

Unavailable

6

LEVER

57151-24301

$12.19

7

BOLT This part replaces 01107-06166.

01500-0616A

$1.77

8

LOCK WASHER This part replaces 08321-31066.

08321-0106A

$1.83

9

WASHER

09160-06019

$1.38

10

SCREW

02112-05357

$1.49

11

SCREW This part replaces 02112-05408.

02112-05407

$2.04

12

.SCREW This part replaces 02112-05305.

02112-0530B

$1.45

13

.NUT This part replaces 08310-21055.

09140-05006

$2.77

14

GRIP This part replaces 57211-19A03-291.

57211-19A04-291

$10.75

15

NO DESCRIPTION AVAILABLE | MODEL H/J This part replaces 37400-19B01.

37400-19B05

Unavailable

15

NO DESCRIPTION AVAILABLE | MODEL K; Includes Item(s) 16 - 19 This part replaces 37400-19B03.

37400-19B05

Unavailable

16

LEVER, CHOKE | MODEL H/JTO 37571-19B01W/37576-19B01 This part replaces 37571-19B00.

37571-19B01

$11.12

16

LEVER, CHOKE | MODEL K

37571-19B01

$11.12

17

COVER, CHOKE | MODEL H/J This part replaces 37576-19B00.

37576-19B01

$6.21

17

COVER, CHOKE | MODEL K

37576-19B01

$6.21

18

SCREW This part replaces 02112-05405.

02112-0540B

$2.88

19

.SCREW This part replaces 02112-05455.

02112-0545B

$2.24
