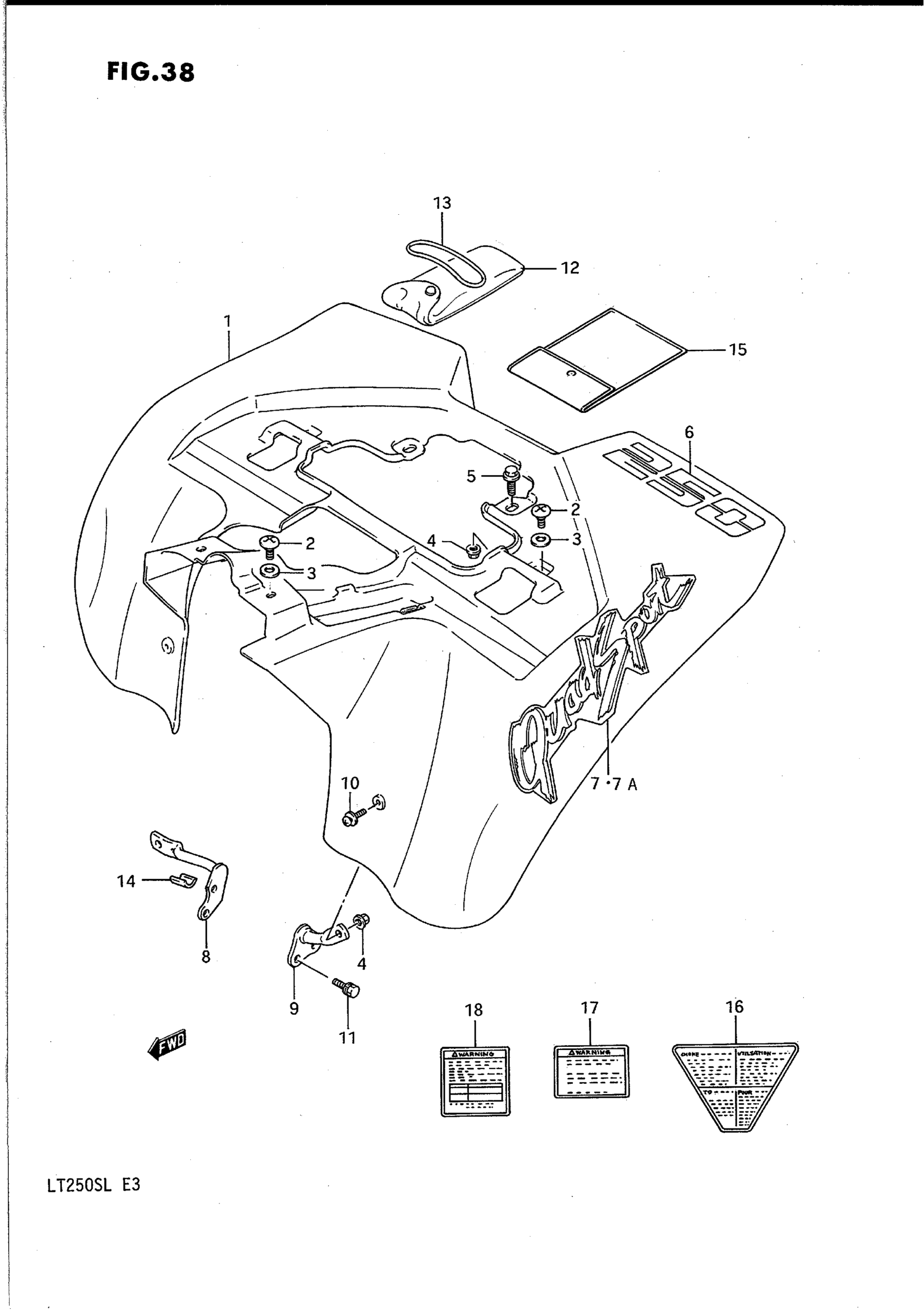

Find the part on the Rear Fender diagram for your 1990 Suzuki LT250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Suzuki LT250S Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, REAR (WHITE)

63111-25C00-14L

1
Out of stock

2

4

$3.42

In stock

3

WASHER

09160-08043

4
Out of stock

4

NUT

08319-31067

4

$2.18

In stock

5

2

$2.42

In stock

6

EMBLEM "250" | MODEL K

68171-25C00-96L

2
Out of stock

7

EMBLEM | MODEL K

68177-25C00-96L

2
Out of stock

7A

EMBLEM, "Q.S" | MODEL L

68177-25C10-3MD

2
Out of stock

8

REINFORCEMENT, FRONT RH

63140-25C00

1
Out of stock

9

REINFORCEMENT, FRONT LH

63150-25C00

1
Out of stock

10

SCREW

09136-06081

2

$2.47

In stock

11

2

$3.30

In stock

12

TOOL ASSY This part replaces 09800-20018.

09800-21075

1
Out of stock

13

1

$2.68

In stock

14

CUSHION, REAR FENDER

63191-25C00

1

$3.13

In stock

15

1

$6.05

In stock

17

LABEL, WARNING

68367-04620

1
Out of stock

18

LABEL, TIRE AIR PRESSURE

68332-25C30

1
Out of stock
