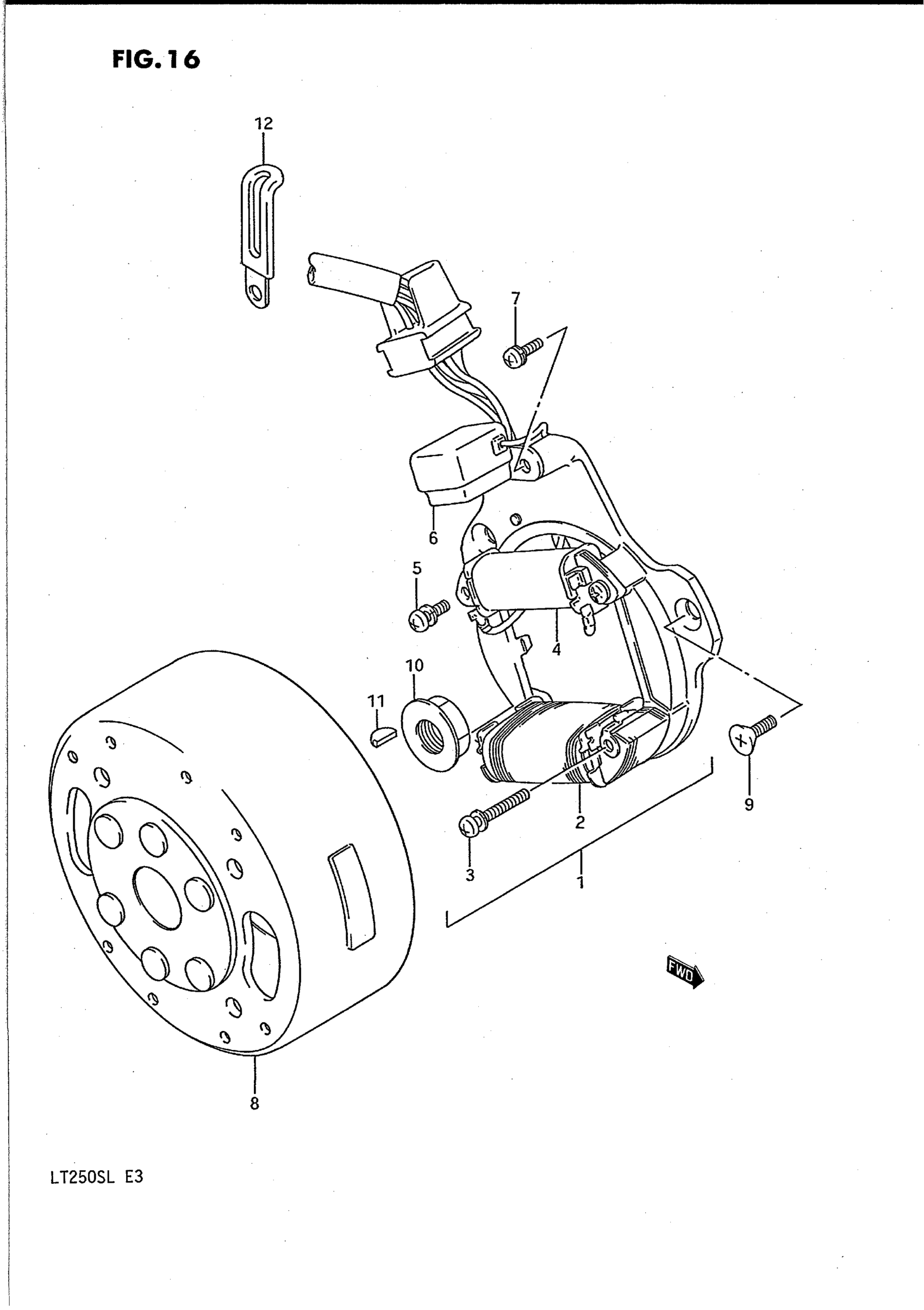

Suzuki LT250S (1990) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY | Includes Item(s) 2 - 7

32101-22A01

Unavailable

2

COIL, LIGHTING

32120-22A10

Unavailable

3

SCREW,4X35 This part replaces 32351-39210.

09125-04018-XC0

$2.35

4

COIL, PRIMARY

32140-22A00

Unavailable

5

SCREW This part replaces 32351-22A00.

09125-04011

Unavailable

6

COIL, PICKUP

32150-22A01

$106.12

7

SCREW This part replaces 02112-34108.

02112-3410A

$2.04

8

ROTOR, FLYWHEEL

32102-25C00

Unavailable

9

SCREW

09126-05005

Unavailable

10

NUT This part replaces 09159-10014.

09159-10046-XC0

$2.20

11

KEY

08341-31039

$1.89

12

CLAMP This part replaces 09404-06402.

09404-06039

$1.73
