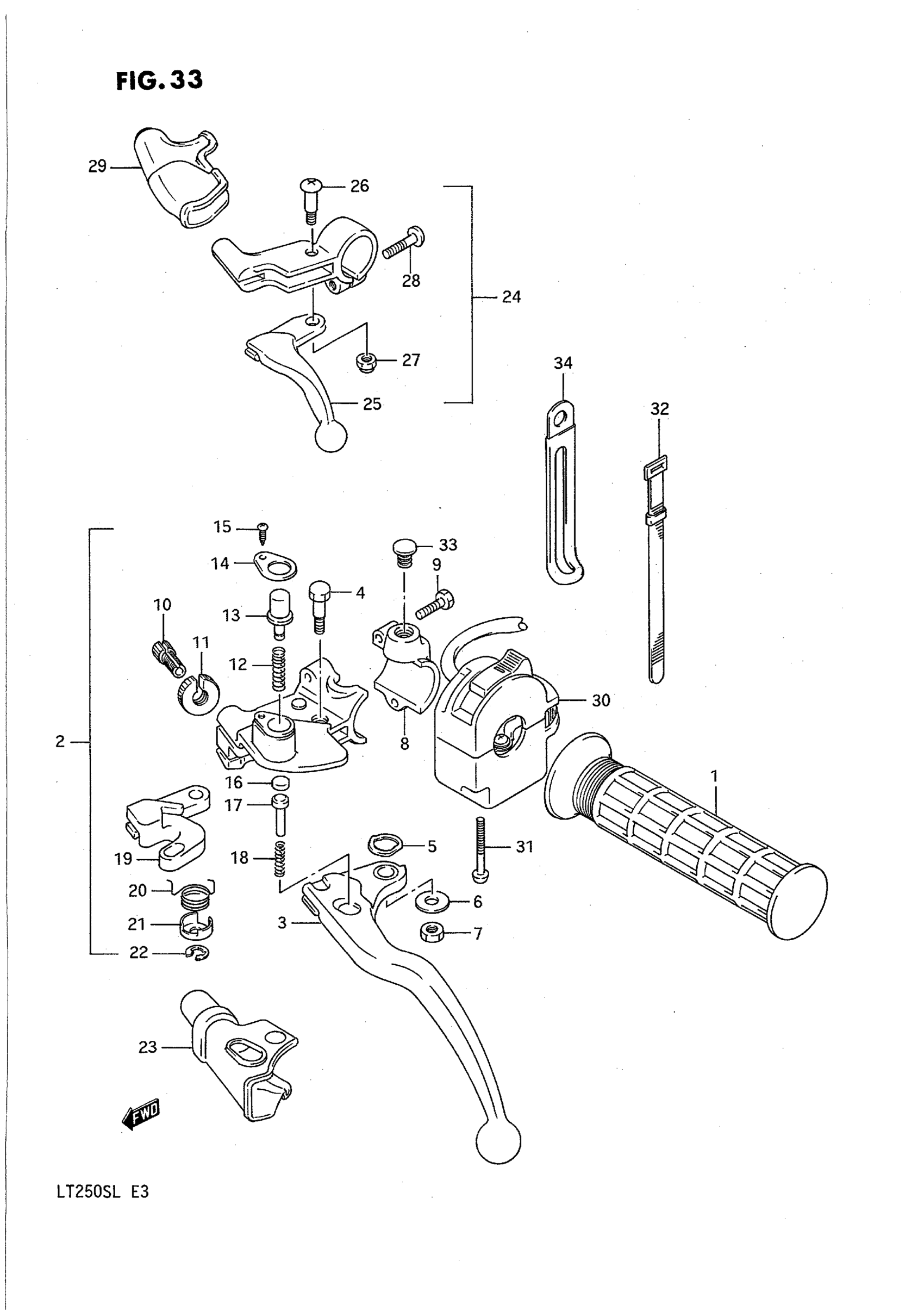

Suzuki LT250S (1990) LEFT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP (BLACK) This part replaces 57211-22A01.

57211-22A01-291

$10.74

2

LEVER ASSY, CLUTCH & PARKING | Includes Item(s) 3 - 22

57800-19A01

Unavailable

3

LEVER

57620-19A00

Unavailable

4

BOLT This part replaces 57431-33450.

57531-14A00

$7.03

5

WASHER

08221-08144

$2.43

6

WASHER (6.5X15X1.6) This part replaces 57912-19A00.

09160-06128

$2.00

7

.NUT This part replaces 08319-21065.

08319-2106B

$2.31

8

BRACKET

57512-44500

Unavailable

9

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

$1.77

10

.ADJUSTER, BRAKE CABLE This part replaces 57441-13A00.

57441-26010

$4.22

11

NUT This part replaces 57442-44400.

57442-11010

$2.80

12

SPRING

57817-19A00

Unavailable

13

BUTTON

57811-19A00

Unavailable

14

COVER

57815-19A00

Unavailable

15

SCREW

57619-19A00

$4.28

16

PIECE

57814-19A00

Unavailable

17

PIN

57813-19A00

$6.72

18

SPRING

57818-19A00

$4.12

19

LEVER, PARKING

57812-19A00

Unavailable

20

SPRING, RETURN

57911-19A00

Unavailable

21

COVER, SPRING

57819-19A00

Unavailable

22

E RING This part replaces 08332-11045.

08332-1104A

$1.37

23

COVER, CLUTCH

57541-19A00

Unavailable

24

LEVER ASSY,DECO | Includes Item(s) 25 - 28 This part replaces 58700-38200.

58700-38210

$170.18

25

LEVER

58731-38200

$55.78

26

SCREW This part replaces 57431-01011.

57431-01012

$4.93

27

NUT

57633-38200

Unavailable

28

SCREW This part replaces 02112-06205.

02112-0620A

$1.45

29

COVER, DECOMP

57342-37101

Unavailable

30

SWITCH ASSY, LH | Includes Item(s) 31

37400-25C00

Unavailable

31

SCREW

02112-05357

$1.49

32

BAND

09407-12402

$2.80

33

CAP This part replaces 09250-09001.

09250-09008

$1.56

34

CLAMP This part replaces 09404-08402.

09404-08420

$2.90
