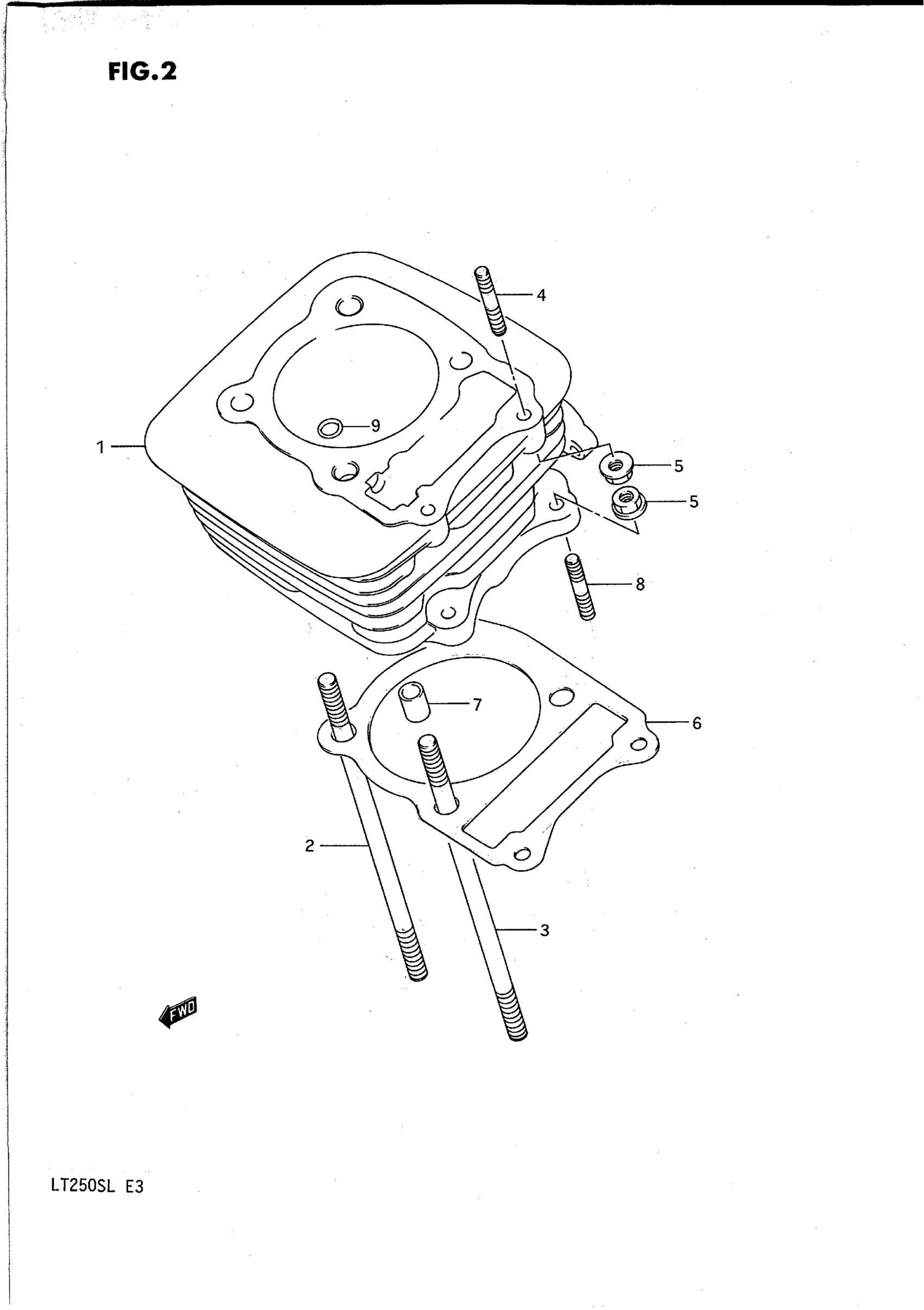

Suzuki LT250S (1990) CYLINDER Diagram

#

Description

Price

1

CYLINDER | MODEL K This part replaces 11210-25C01-0F0.

11210-25C03-0F0

Unavailable

1

CYLINDER | MODEL L

11210-25C03-0F0

Unavailable

2

STUD BOLT (L:167)

09108-08184

$5.65

3

STUD BOLT (L:160)

09108-08195

$5.27

4

STUD BOLT This part replaces 01421-06255.

01421-0625A

$2.07

5

NUT This part replaces 08316-16064.

08316-1006B

$2.57

6

GASKET,CYLINDER This part replaces 11241-25C01.

11241-25C10

Unavailable

7

PIN

04211-11149

$1.82

8

STUD BOLT (L:22)

09108-06090

Unavailable

9

O RING (D:2.8,ID:4.8) | MODEL L This part replaces 09280-05006.

09280-05008

$2.57
