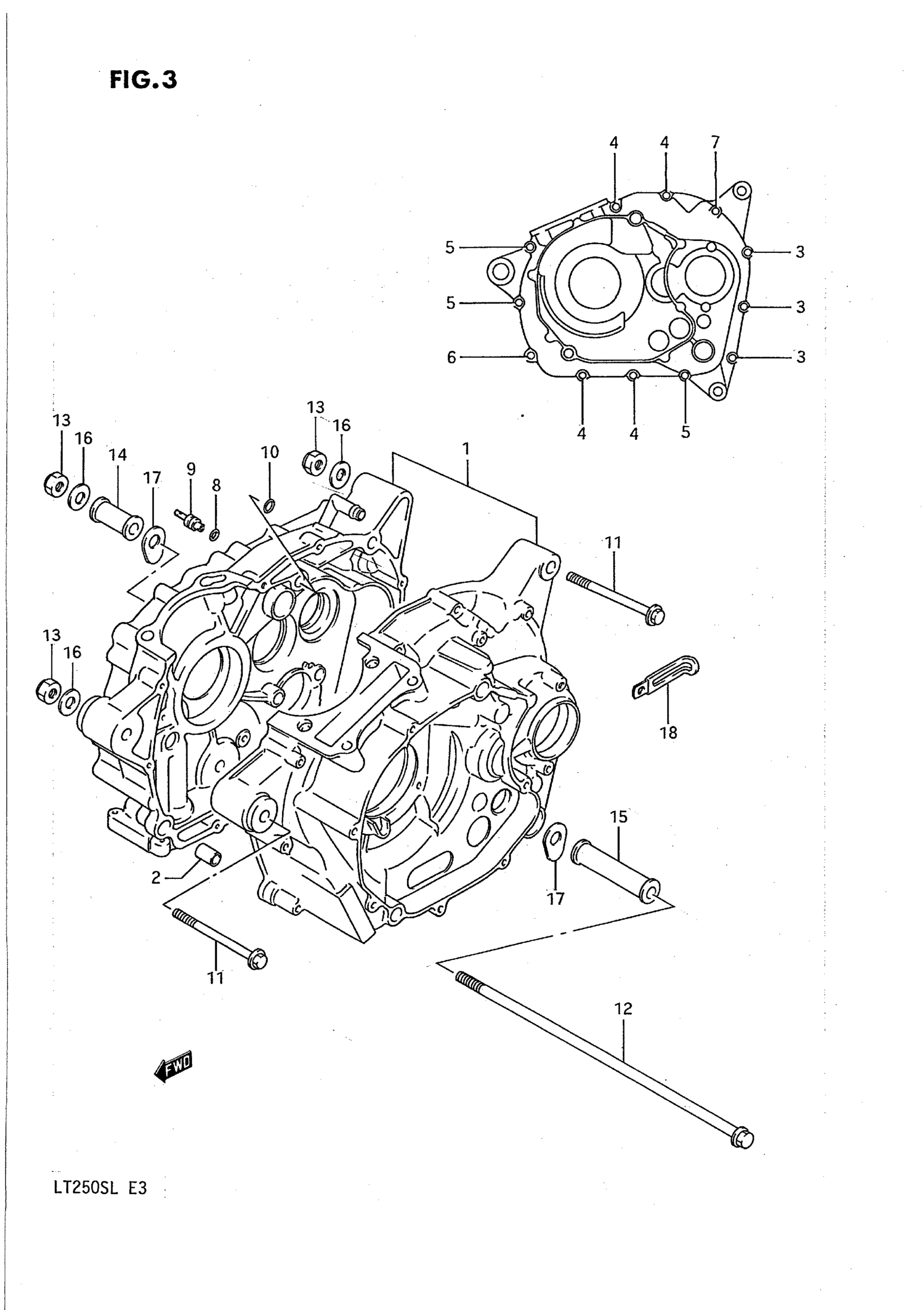

Suzuki LT250S (1990) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 10

11300-25890

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.25

3

BOLT This part replaces 01547-06304.

01547-06307

$2.13

4

BOLT This part replaces 01547-06404.

01547-0640B

$2.80

5

BOLT This part replaces 01547-06505.

01547-0650B

$2.80

6

BOLT This part replaces 01547-06605.

01547-0660B

$2.95

7

BOLT This part replaces 01547-06705.

01547-0670B

$3.12

8

O RING, OIL GALLERY JET

09280-04004

$1.76

9

JET, OIL GALLERY

09493-32006

$18.33

10

O RING (D:1.9,ID:9.8) This part replaces 09280-10010.

09280-10016

$3.13

11

BOLT, LH OUTER (10X100) This part replaces 09103-10016.

09103-10110

$9.15

12

BOLT (10X315)

09103-10177

Unavailable

13

NUT

09159-10067

$7.80

14

SPACER (L:40)

11610-20A00

Unavailable

15

SPACER (L:80)

11610-22A00

Unavailable

16

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.19

17

SHIM (T:0.3)

09181-10012

Unavailable

17

SHIM (T:0.5)

09181-10013

Unavailable

18

CLAMP This part replaces 09404-06402.

09404-06039

$1.79
