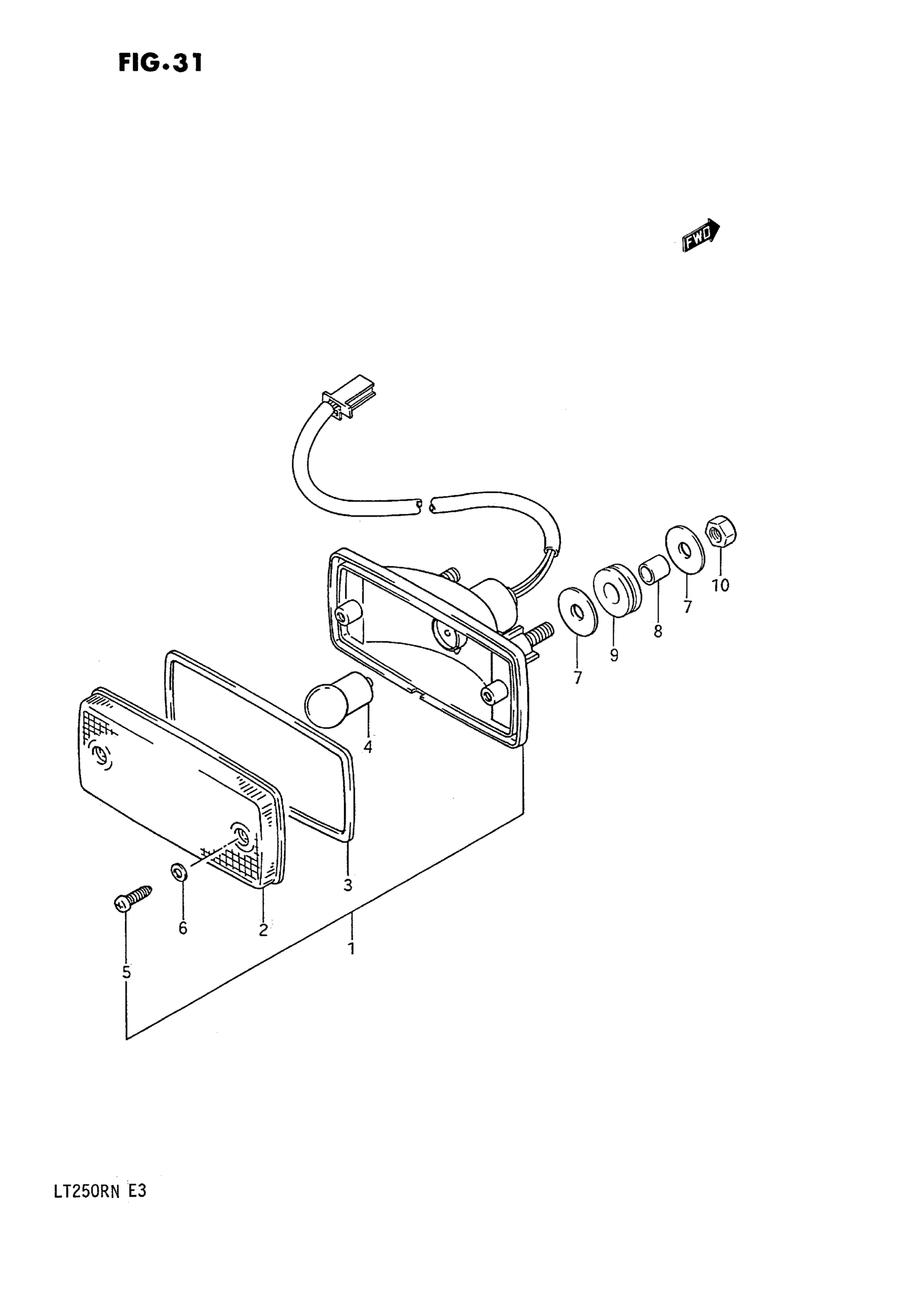

Suzuki LT250R (1992) TAIL LAMP Diagram

#

Description
Price

1

LAMP ASSY, TAIL | MODEL F/G/H/J/K This part replaces 35710-18A32.

35710-41B02

Unavailable

1

LAMP ASSY, TAIL | MODEL L/M/N; Includes Item(s) 2 - 6 This part replaces 35710-18A33.

35710-41B02

Unavailable

2

LENS | MODEL F/G/H/J/K This part replaces 35712-18A31.

35712-18A32

$51.14

2

LENS | MODEL L/M/N

35712-18A32

$51.14

3

GASKET

35713-18A30

$10.92

4

BULB (12V,5W) | MODEL F/G/H/J/K

09471-12058

$2.19

4

BULB (12V5W) | MODEL L/M/N This part replaces 09471-12139.

09471-12058

$2.19

5

SCREW

03212-04169

$1.36

6

GASKET

35627-43010

$2.29

7

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.89

8

SPACER

35766-26470

$2.67

9

CUSHION

35765-35300

$4.92

10

NUT This part replaces 08310-12066.

08310-0006A

$1.83
