1992 Suzuki LT250R Fuel Tank Diagram

← All diagrams

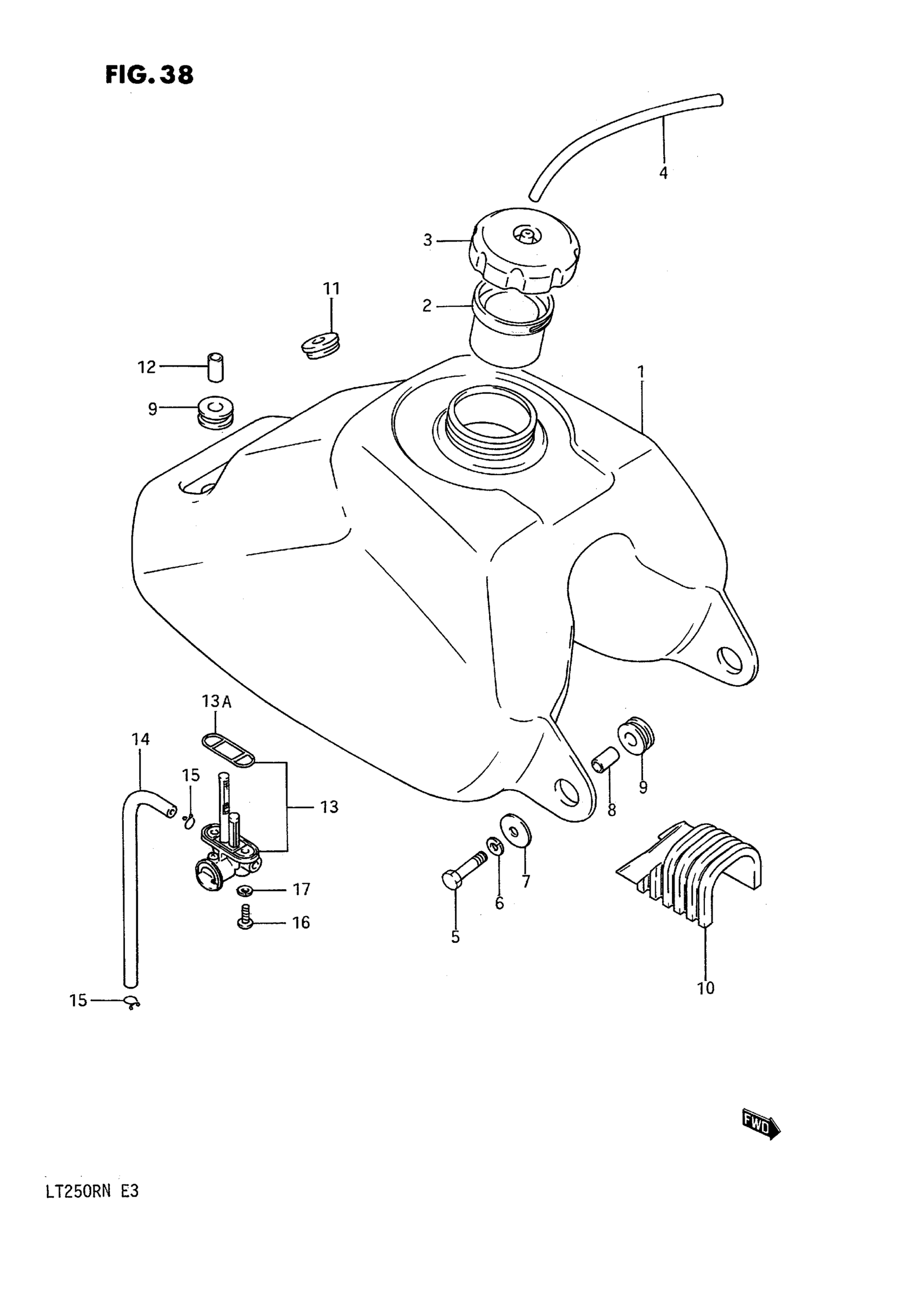

Find the part on the Fuel Tank diagram for your 1992 Suzuki LT250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Suzuki LT250R Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL | MODEL F/G This part replaces 44110-19A00.

44110-19A01

1
Out of stock

1

TANK, FUEL | MODEL H/J/K/L/M/N

44110-19A01

1
Out of stock

2

TUBE, FILLER INLET

44199-19A00

1

$6.44

In stock

3

1

$48.05

In stock

4

1

$9.88

In stock

5

BOLT This part replaces 01107-08358.

01500-0835B

2
Out of stock

6

2

$2.28

In stock

7

WASHER, MUFFLER SUPPORT This part replaces 09160-08001.

09160-08503

2
Out of stock

8

2

$3.00

In stock

9

CUSHION

09320-12016

4

$2.57

In stock

10

CUSHION, UPPER

44541-19A00

1
Out of stock

11

CUSHION, FENDER & SEAT

09320-20004

2
Out of stock

12

SPACER, REAR

09180-08067

2

$2.58

In stock

13

COCK ASSY, FUEL | MODEL F/G/H/J This part replaces 44300-19A00.

44300-19A01

1
Out of stock

13

COCK ASSY, FUEL | MODEL K/L/M/N; Includes Item(s) 13A

44300-19A01

1
Out of stock

13A

GASKET

44351-19A00

1
Out of stock

14

1

$9.88

In stock

15

CLIP

09401-08401

2

$1.76

In stock

16

2

$1.52

In stock

16

2

$2.54

In stock
