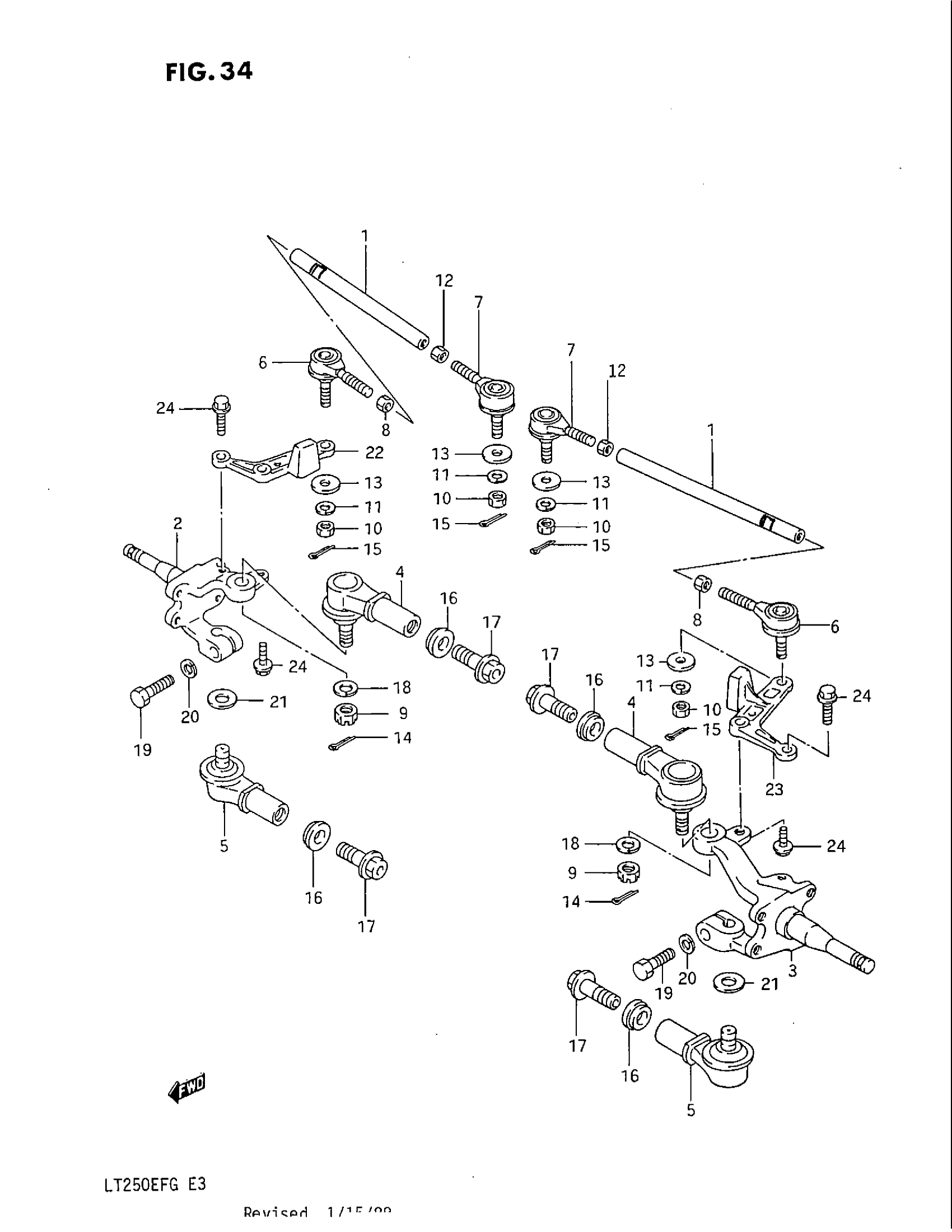

Suzuki LT250EF (1986) TIE ROD Diagram

#

Description
Price

1

TIE ROD, STEERING

51281-24501

Unavailable

2

KNOCKLE, STEERING, RH

51231-24502

Unavailable

3

KNOCKLE, STEERING, LH

51241-24502

Unavailable

4

END, KNUCKLE STEERING UPPER This part replaces 51210-24501.

51210-19A01

Unavailable

5

END,KNUCKLE STE This part replaces 51220-24501.

51220-19A03

$119.75

6

ROD, END RH This part replaces 51260-24400.

51260-38F10

$91.23

7

ROD, END LH This part replaces 51270-24400.

51270-38F10

$91.67

8

NUT This part replaces 08310-22105.

09140-10043

$2.92

9

NUT This part replaces 08314-41125.

08314-4012A

$2.53

10

NUT This part replaces 09159-10036.

09159-10027

$2.84

11

LOCK WASHER This part replaces 08321-21104.

08321-0110A

$1.86

12

NUT, TIE ROD, LH

09140-10027

$1.54

13

WASHER This part replaces 09160-10068.

09160-10128-XC0

$2.64

14

PIN This part replaces 04111-30306.

04111-3030A

$1.37

15

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

16

STOPPER, KNUCKLE END BOLT

52418-24500

$9.97

17

BOLT. KNUCKLE END UPPER (14X38) This part replaces 09103-14006.

09103-14009

$16.02

18

WASHER,LOCK This part replaces 08321-21125.

08321-0112A

$2.08

19

BOLT, KNUCKLE, LOWER

09100-10225

$3.69

20

LOCK WASHER This part replaces 08321-21104.

08321-0110A

$1.86

21

WASHER, KNUCKLE END This part replaces 09160-14034.

09160-14060

$2.74

22

ARM, KNUCKLE STEERING, RH

51232-24501

Unavailable

23

ARM, KNUCKLE STEERING, LH

51242-24501

Unavailable

24

BOLT (8X20) This part replaces 09103-08102.

09103-08505

$3.90
