1986 Suzuki LT250EF Front Fender Diagram

← All diagrams

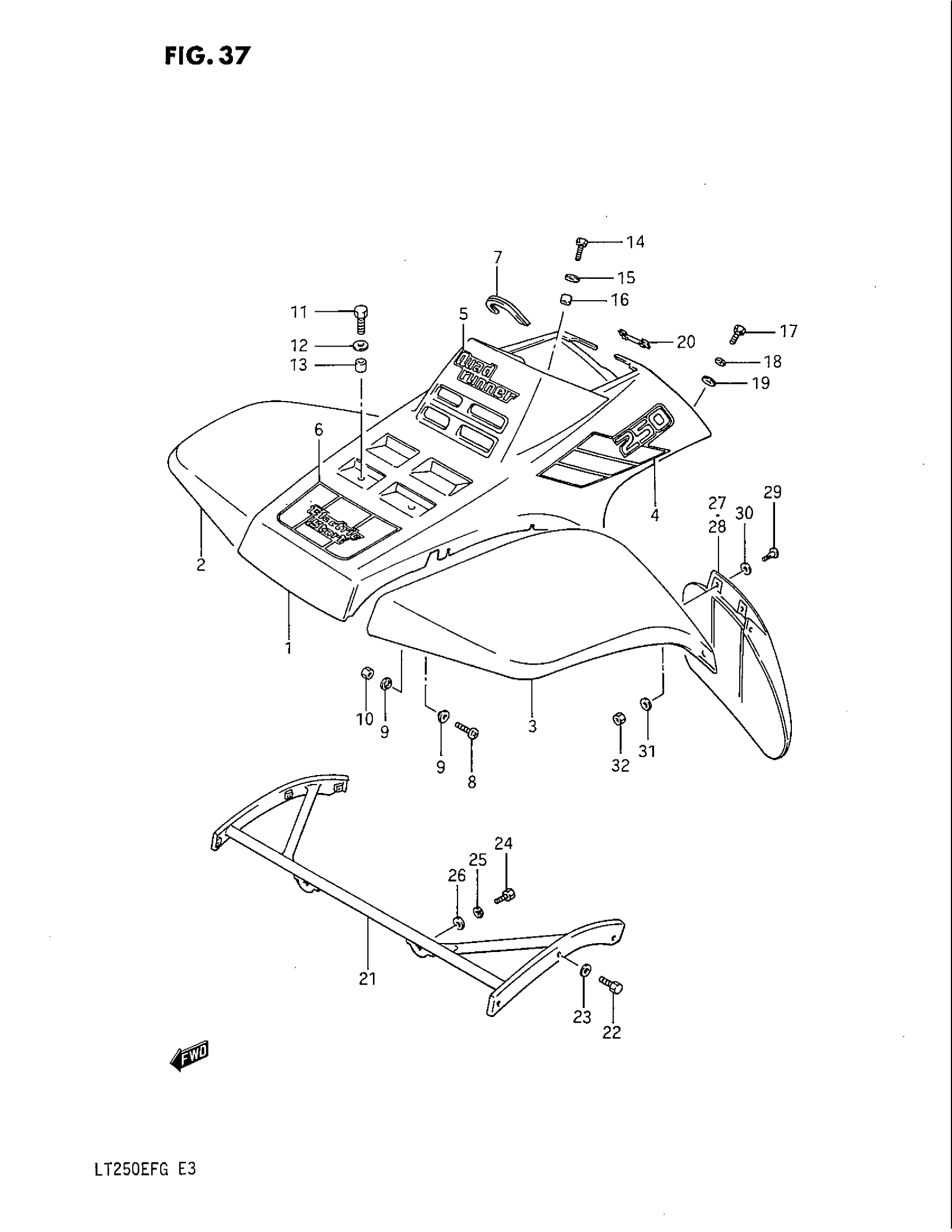

Find the part on the Front Fender diagram for your 1986 Suzuki LT250EF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Suzuki LT250EF Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 53111-24502-25G.

53111-24502-00N

1
Out of stock

2

FENDER, FRONT RH (ORANGE)

53118-24502-25G

1
Out of stock

3

FENDER, FRONT LH (ORANGE)

53119-24502-25G

1
Out of stock

4

TAPE SET

68150-24520-7ZG

1
Out of stock

5

EMBLEM, FENDER NAME

68233-18930-73J

1
Out of stock

6

EMBLEM, ELECTRIC START

68151-24500-7ZH

1
Out of stock

7

PROTECTOR, CABLE

58627-24500

1
Out of stock

8

SCREW This part replaces 02112-06164.

02112-0616A

10
Out of stock

9

WASHER This part replaces 09169-06034.

09169-06071

20
Out of stock

10

.NUT This part replaces 08319-21065.

08319-2106B

10
Out of stock

11

BOLT This part replaces 01107-08255.

01500-0825A

2
Out of stock

12

WASHER (8.5X20X1.6) This part replaces 09160-08089.

09160-08054

2
Out of stock

13

SPACER, REAR This part replaces 09180-08110.

09180-08184

2
Out of stock

14

SCREW This part replaces 02142-06205.

02142-0620A

2
Out of stock

15

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

2
Out of stock

16

SPACER

09180-06038

2
Out of stock

17

BOLT This part replaces 01107-06126.

01500-0612A

2
Out of stock

18

2

$1.97

In stock

19

WASHER

09169-06033

2

$1.81

In stock

20

PLATE, BRACE

53280-18900

1
Out of stock

21

BRACE, FRONT FENDER

53240-24500

1
Out of stock

22

BOLT This part replaces 01107-06125.

01500-0612A

6
Out of stock

23

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

6
Out of stock

24

BOLT This part replaces 01107-06165.

01500-0616A

2
Out of stock

25

2

$1.97

In stock

26

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

2
Out of stock

27

MUD FLAP, RH

53311-24501

1
Out of stock

28

MUD FLAP, LH

53312-24501

1
Out of stock

29

SCREW

09139-05037

8

$2.23

In stock

30

WASHER (6.5X18X1.6) This part replaces 09160-07011.

09160-06109

8
Out of stock

31

WASHER (5.5X20X1.4) This part replaces 09160-05039.

09160-05046

8
Out of stock

32

NUT This part replaces 08319-31056.

08319-3105B

8
Out of stock
