1988 Suzuki LT230S Headlamp Diagram

← All diagrams

Find the part on the Headlamp diagram for your 1988 Suzuki LT230S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

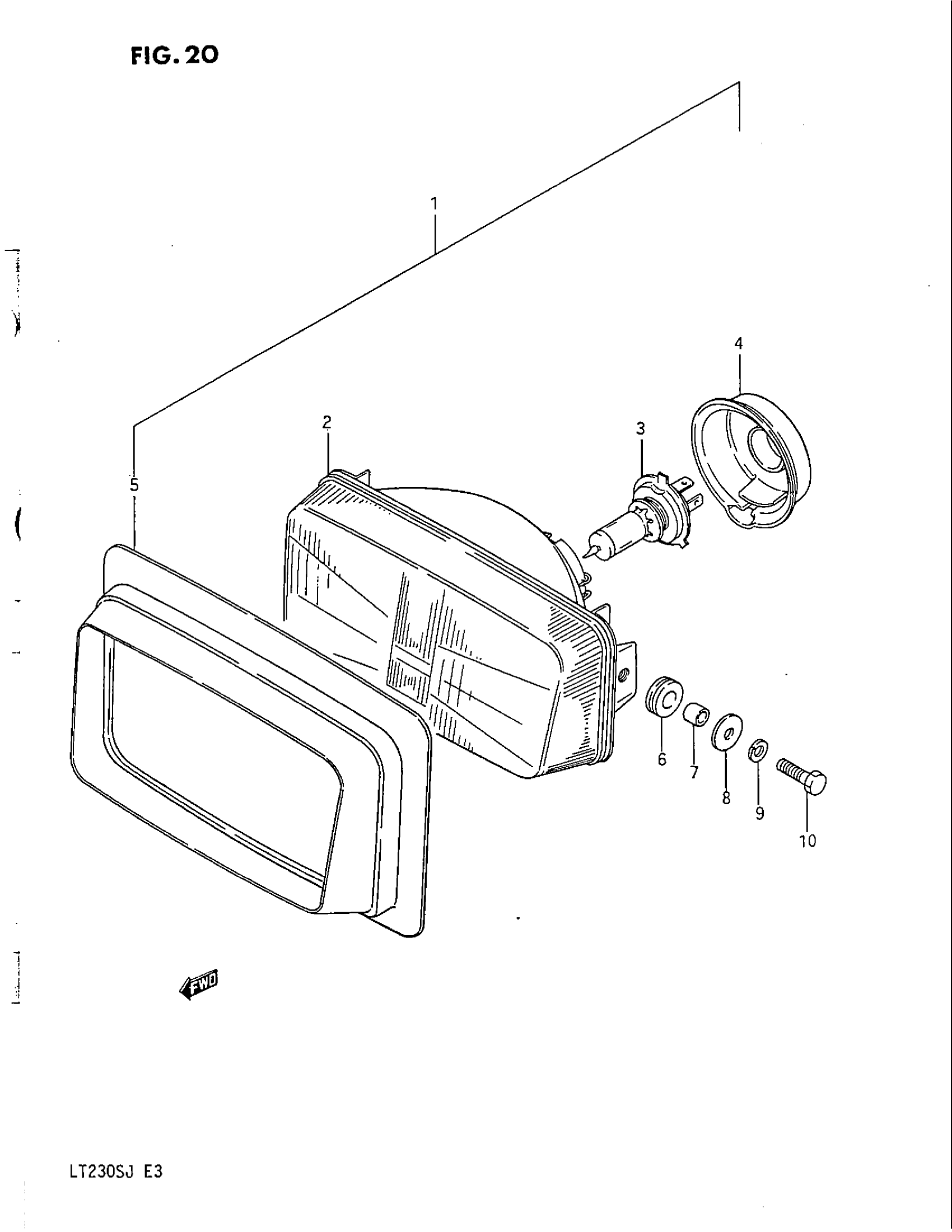

1988 Suzuki LT230S Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY | Includes Item(s) 2 - 5

35100-22A00

1
Out of stock

2

UNIT, LAMP

35121-22A00

1
Out of stock

3

BULB (12V,45/45W)

09471-12102

1
Out of stock

4

COVER, SOCKET This part replaces 35173-49200.

35173-38A00

1
Out of stock

5

SHADE

35129-19A20

1
Out of stock

6

CUSHION

09320-09002

2
Out of stock

7

SPACER (6.8X10X6.6)

09180-06083

2
Out of stock

8

WASHER, 6.5X24X1.6 This part replaces 09160-06074.

09160-06501

2
Out of stock

9

LOCK WASHER This part replaces 08321-21064.

08321-0106A

2
Out of stock

10

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

2
Out of stock
