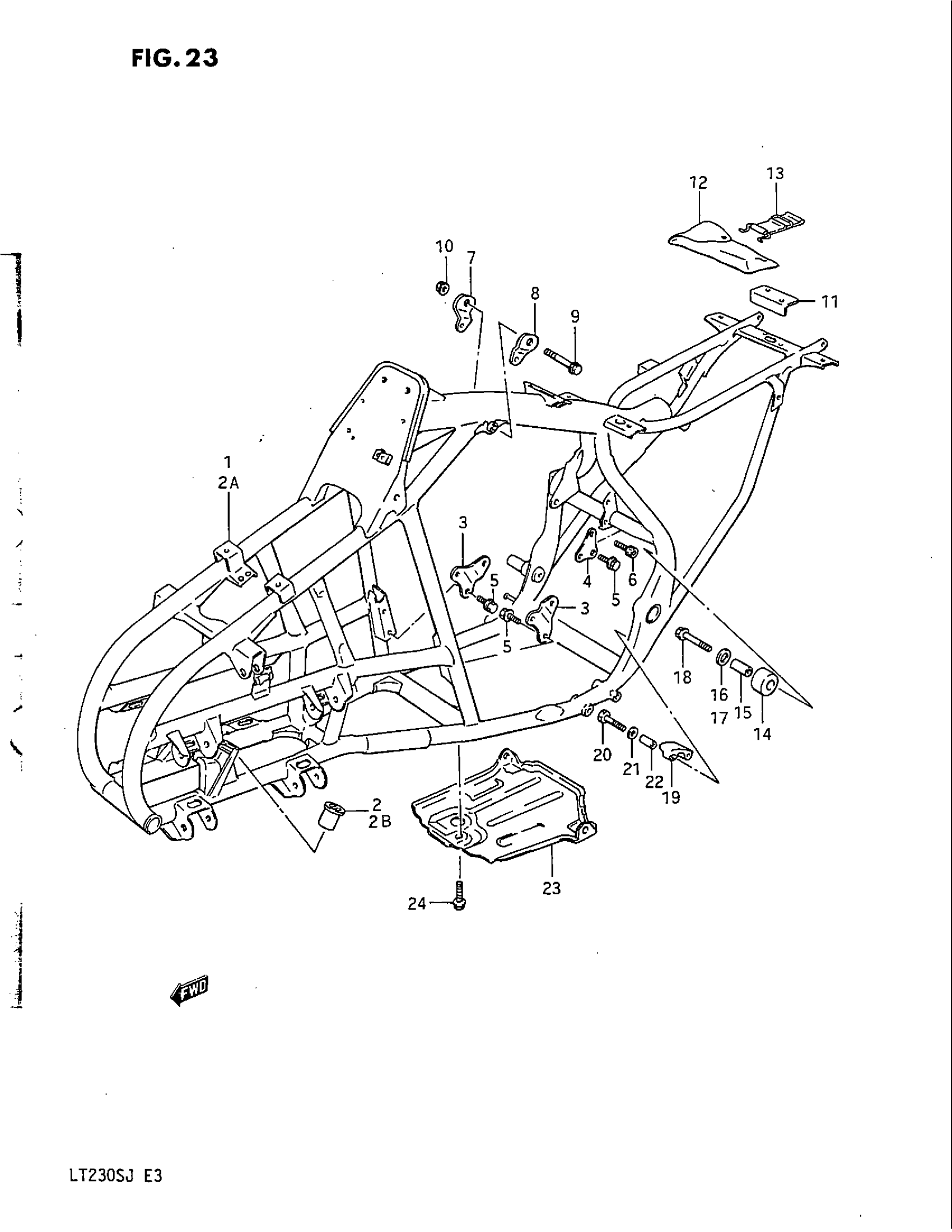

Suzuki LT230S (1988) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 41100-22A00-019.

41100-22A01-019

Unavailable

1

FRAME (BLUE) | MODEL G This part replaces 41100-22A10-019.

41100-22A12-19F

Unavailable

1

FRAME (BLUE) | MDOEL H; Includes Item(s) 2 This part replaces 41100-22A11-19F.

41100-22A12-19F

Unavailable

2

BUSH, STEERING SHAFT | MODEL F/G/H

51661-24500

Unavailable

2A

FRAME (BLUE) | MODEL J

41100-22A12-19F

Unavailable

2B

BUSH, STEERING SHAFT LOWER (17X26X36.9) | MODEL J This part replaces 51661-19B00.

51661-09F00

$27.50

3

PLATE, MOUNTING NO.1 (BLACK) | MODEL F/G

41991-22A00-019

Unavailable

3

PLATE, MOUNTING NO.1 (BLACK) | MODEL H/J This part replaces 41991-22A00-19F.

41991-22A00-019

Unavailable

4

PLATE, MOUNTING NO.3 (BLACK) | MODEL F/G

41996-22A00-019

Unavailable

4

PLATE, MOUNTING NO.3 (BLACK) | MODEL H/J This part replaces 41996-22A00-19F.

41996-22A00-019

Unavailable

5

BOLT (8X16) | MODEL F/G This part replaces 01517-08165.

01550-0816A

$2.31

5

BOLT M8X16 | MODEL H/J This part replaces 01517-08167.

01550-08167

$2.80

6

BOLT | MODEL H/J This part replaces 07120-08168.

07120-0816A

$2.80

7

PLATE, MOUNTING UPPER RH

41993-22A00

Unavailable

8

PLATE, MOUNTING UPPER LH

41994-22A00

Unavailable

9

BOLT,10X77 This part replaces 09103-10132.

09103-10247-XC0

$5.51

10

NUT This part replaces 08319-31105.

08319-3110A

$2.73

11

PLATE, MANUAL | MODEL H/J

47471-22A00

Unavailable

12

TOOL ASSY | MODEL F/G This part replaces 09800-00236.

09800-21075

$48.37

12

TOOL ASSY | MODEL H This part replaces 09800-00355.

09800-21075

$48.37

12

TOOL ASSY | MODEL J This part replaces 09800-20004.

09800-21075

$48.37

13

BAND, TOOL

09462-00084

Unavailable

14

ROLLER, CHAIN CONTROL | MODEL F/G

43910-22A10

Unavailable

14

ROLLER, CHAIN CONTROL | MODEL H/J

43911-35B00

$18.81

15

SPACER | MODEL F/G

43913-40400

Unavailable

15

SPACER | MODEL H/J This part replaces 09180-08119.

09180-08156

$6.14

16

WASHER | MODEL F/G This part replaces 09160-08035.

09160-08130

$2.01

17

WASHER | MODEL H/J

08211-08201

$2.06

18

BOLT

09103-08043

$2.87

19

BUFFER, CHAIN | MODEL F/G This part replaces 43911-19A00.

43911-35B10

Unavailable

19

BUFFER, CHAIN | MODEL H/J

43911-35B10

Unavailable

20

BOLT | MODEL F/G This part replaces 01107-06305.

01500-0630A

$2.21

20

BOLT, REAR | MODEL H/J This part replaces 01107-06307.

01500-06307

$3.17

21

WASHER This part replaces 09160-06031.

09160-06125

$1.89

22

SPACER This part replaces 09180-06072.

09180-06271

$2.17

23

PROTECTOR, ENGINE This part replaces 42510-22A00.

42510-25C01

Unavailable

24

BOLT (8X12) This part replaces 01517-08125.

01550-0812A

$2.31
