1988 Suzuki LT230S AIR Cleaner Diagram

← All diagrams

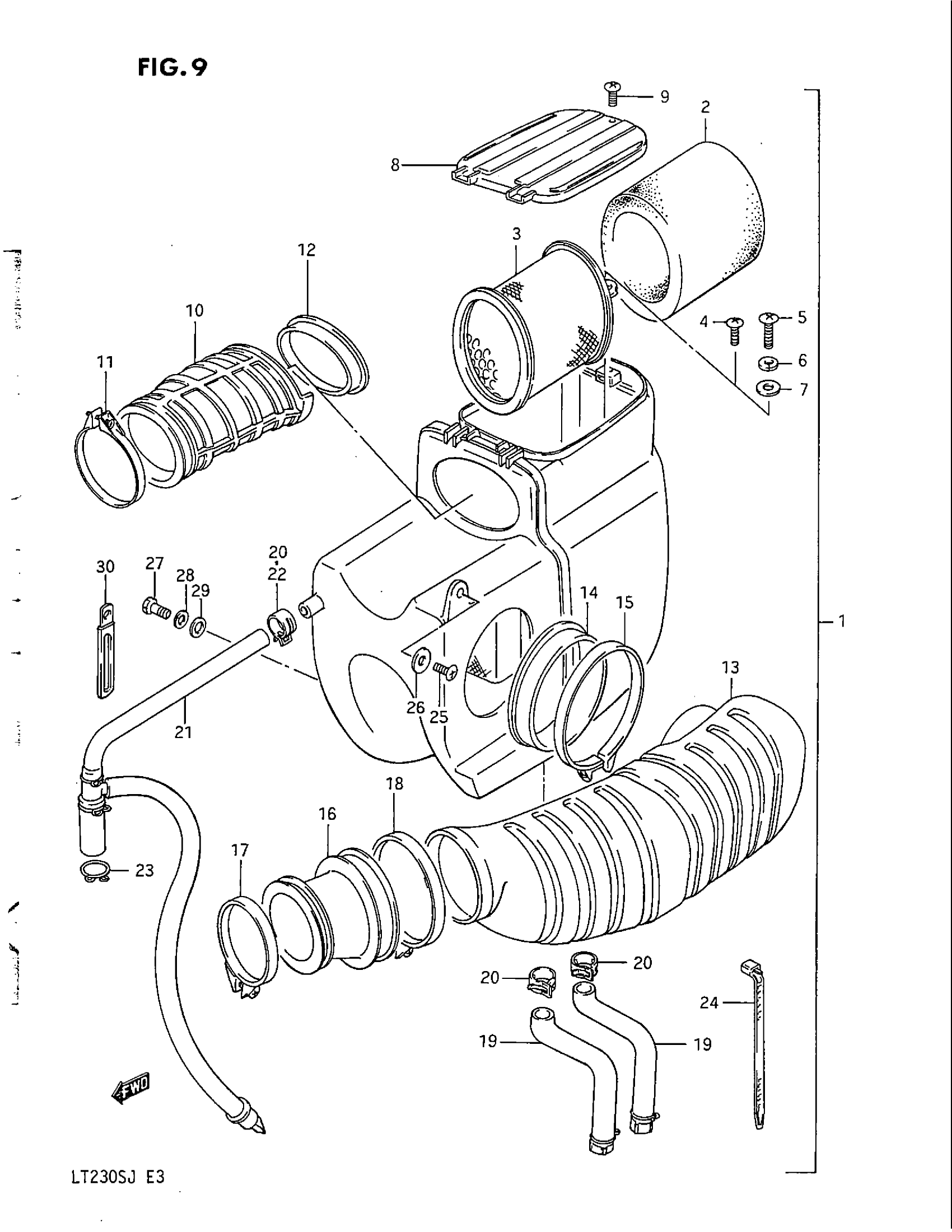

Find the part on the AIR Cleaner diagram for your 1988 Suzuki LT230S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki LT230S AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 13700-22A00.

13700-22A11

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 13700-22A02.

13700-22A11

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL H/J; Includes Item(s) 2 - 24 This part replaces 13700-22A10.

13700-22A11

1
Out of stock

2

FILTER This part replaces 13781-22A00.

13781-22A01

1
Out of stock

3

TRAP,FRAME This part replaces 13810-22A00.

13810-22A05

1
Out of stock

4

.SCREW | MODEL F This part replaces 02142-05125.

02142-0512A

1
Out of stock

5

SCREW | MODEL G/H/J

02112-06167

1
Out of stock

7

WASHER | MODEL G/H/J This part replaces 08322-21067.

08322-01067

1
Out of stock

8

CAP | MODEL F/G This part replaces 13750-18A00.

13750-18B00

1
Out of stock

8

CAP | MODEL H/J

13750-18B00

1
Out of stock

9

SCREW This part replaces 02142-05164.

02142-0516A

1
Out of stock

10

JOINT, INLET

13894-22A00

1
Out of stock

11

CLAMP This part replaces 09402-56207.

09402-56901

1
Out of stock

12

RING, INLET

13898-18A00

1
Out of stock

13

CASE, CHAMBER

13711-22A00

1
Out of stock

14

TUBE, JOINT

13739-00A00

1
Out of stock

15

CLAMP

09402-80207

1
Out of stock

16

PIPE, OUTLET

13881-22A00

1
Out of stock

17

CLAMP This part replaces 09402-52207.

09402-52208

1
Out of stock

18

CLAMP | MODEL F/G This part replaces 09402-68207.

09402-66208

1
Out of stock

18

CLAMP | MODEL H/J This part replaces 09402-66207.

09402-66208

1
Out of stock

19

TUBE, DRAIN

13870-22A00

2
Out of stock

20

CLIP | MODEL F/GMODEL H/J This part replaces 13824-43400.

09401-14404

2
Out of stock

21

TUBE, BREATHER | MODEL F/G This part replaces 13850-22A00.

13850-22A02

1
Out of stock

21

TUBE, BREATHER | MODEL H/J This part replaces 13850-22A01.

13850-22A02

1
Out of stock

22

CLAMP | MODEL F/G This part replaces 13825-43400.

09401-13417

1
Out of stock

23

CLIP

09401-14301

1
Out of stock

24

BAND

13826-01400

1
Out of stock

25

SCREW

02112-06167

1
Out of stock

26

WASHER This part replaces 09160-06007.

09160-06084

1
Out of stock

27

2

$2.10

In stock

28

2

$2.28

In stock

29

WASHER This part replaces 08322-21067.

08322-01067

2
Out of stock

30

CLAMP(L:80) This part replaces 09404-06418.

09404-06036

1
Out of stock
