1986 Suzuki LT230GE Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 1986 Suzuki LT230GE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

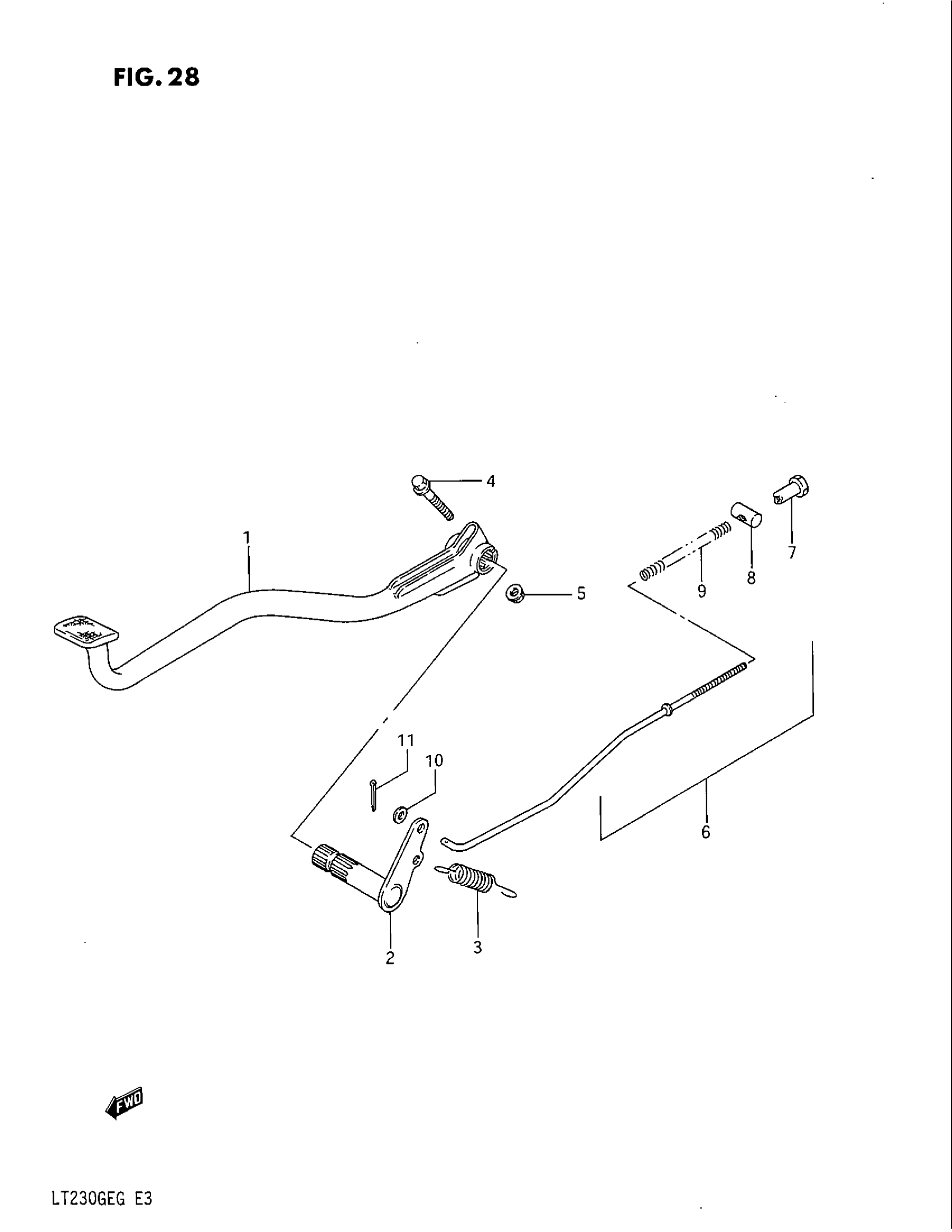

1986 Suzuki LT230GE Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 43110-18A00.

43110-18A01

1
Out of stock

2

ARM, BRAKE PEDAL

43120-18A00

1
Out of stock

3

SPRING

09443-15018

1
Out of stock

4

BOLT, LH This part replaces 01517-08508.

01550-08507

1
Out of stock

5

NUT This part replaces 08319-31088.

08319-3108A

1
Out of stock

6

ROD ASSY,RR BRA | Includes Item(s) 7 - 11 This part replaces 43300-18A00.

43300-18X50

1
Out of stock

7

NUT This part replaces 09150-06008.

09150-06012

1
Out of stock

8

PIN

09209-13006

1
Out of stock

9

.SPRING This part replaces 09440-09013.

09440-09004

1
Out of stock

10

1

$1.97

In stock

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock
