1986 Suzuki LT230GE Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1986 Suzuki LT230GE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

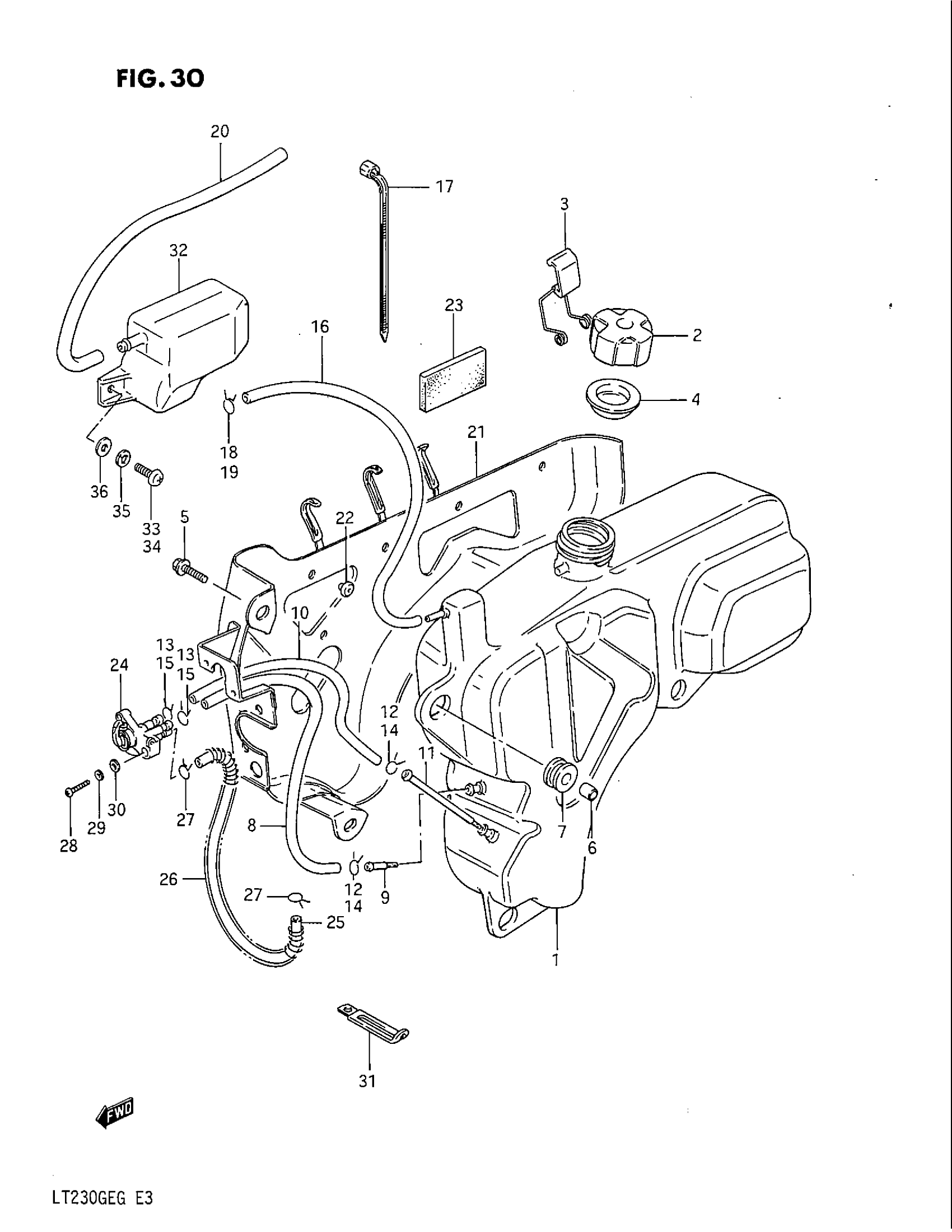

1986 Suzuki LT230GE Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL

44111-18A00

1
Out of stock

2

CAP, FUEL TANK

44211-24400

1
Out of stock

3

SPRING This part replaces 44240-24401.

44240-18B00

1
Out of stock

4

GASKET This part replaces 44248-40400.

44248-05211

1
Out of stock

5

BOLT This part replaces 01924-08306.

01500-0830B

3
Out of stock

6

SPACER This part replaces 09180-08120.

09180-08209

3
Out of stock

7

CUSHION

09320-12016

3
Out of stock

8

HOSE(5X8.2X600) | MODEL F This part replaces 09343-05096.

09359-50824-600

1
Out of stock

8

HOSE, CANISTER & PURGE | MODEL G This part replaces 09343-05367.

09359-54111-600

1
Out of stock

9

FILTER, FUEL, "ON"

44322-27001

1
Out of stock

10

HOSE(5X8.2X600) | MODEL F This part replaces 09343-05096.

09359-50824-600

1
Out of stock

10

HOSE, CANISTER & PURGE | MODEL G This part replaces 09343-05368.

09359-54111-600

1
Out of stock

11

FILTER, FUEL, "RES"

44323-24400

1
Out of stock

12

CLIP | MODEL F

09401-10402

2
Out of stock

13

CLIP | MODEL F

09401-08402

2
Out of stock

14

CLIP (ID:10.5,H:8) | MODEL G

09401-10409

2
Out of stock

15

CLIP, FUEL HOSE | MODEL G

09401-12404

2
Out of stock

16

HOSE, BREATHER NO.1

09343-05336

1
Out of stock

17

CLAMP | MODEL F

09407-14403

1
Out of stock

18

CLIP

09401-08402

1
Out of stock

19

CLIP | MODEL G

09401-10301

2
Out of stock

20

HOSE(7X11X2000) | MODEL F This part replaces 09343-07093.

09352-70119-00B

1
Out of stock

20

HOSE(7X11X2000) | MODEL G This part replaces 09343-07089.

09352-70119-00B

1
Out of stock

21

GUARD, FUEL TANK This part replaces 44570-18A00.

44570-18A01

1
Out of stock

22

CUSHION

09321-06016

7
Out of stock

23

CUSHION

44518-09300

1
Out of stock

24

COCK ASSY,FUEL This part replaces 44300-24471.

44300-17271

1
Out of stock

25

HOSE This part replaces 09343-05271.

09352-50005-00B

1
Out of stock

26

SPRING

09440-10012

1
Out of stock

27

CLIP

09401-08402

2
Out of stock

28

SCREW This part replaces 02112-05208.

02112-05207

2
Out of stock

29

LOCK WASHER This part replaces 08321-21057.

08321-0105A

2
Out of stock

30

WASHER This part replaces 08322-21058.

08322-01057

2
Out of stock

31

CLAMP This part replaces 09404-06413.

09404-06039

1
Out of stock

32

SEPARATOR, FUEL

89411-81100

1
Out of stock

33

SCREW | MODEL F This part replaces 02112-06126.

02112-0612A

2
Out of stock

34

BOLT | MODEL G This part replaces 01107-06166.

01500-0616A

2
Out of stock

35

2

$1.97

In stock

36

.WASHER This part replaces 08322-21066.

08322-0106B

2
Out of stock
