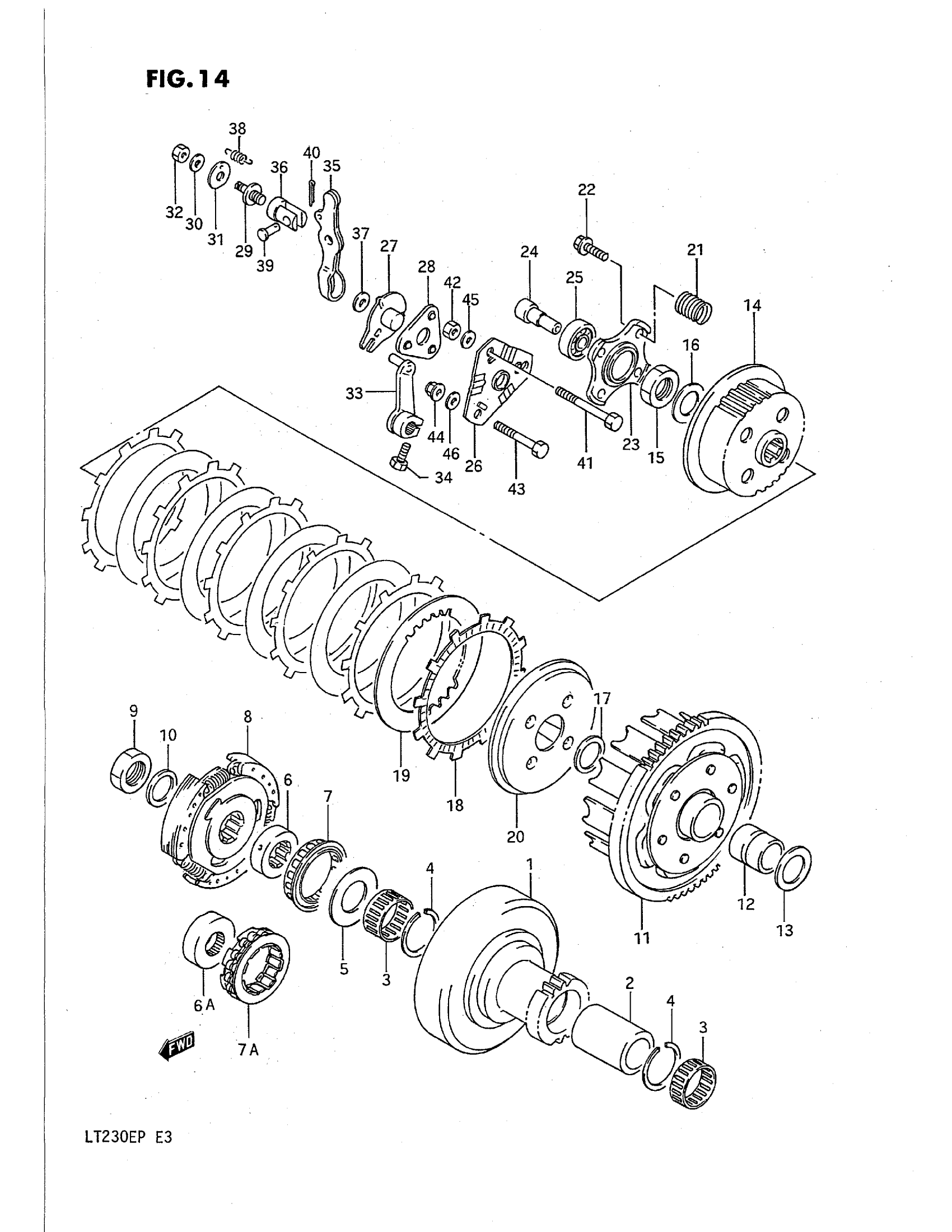

Suzuki LT230E (1993) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE (NT:22) | MODEL H/J

21110-18A01

Unavailable

1

GEAR, PRIMARY DRIVE (NT:22) | MODEL K/L/M/N/P

21110-35B00

Unavailable

2

SPACER | MODEL H/J

09180-22034

Unavailable

3

BEARING (28X32X16.8) | MODEL H/J

09263-28023

Unavailable

4

CIRCLIP | MODEL H/J

09381-33002

Unavailable

5

WASHER (22X48X2.5) | MODEL H/J

09160-22036

Unavailable

6

RACE, INNER | MODEL H/J

21631-18A00

Unavailable

6A

RACE, INNER | MODEL K/L/M/N/P This part replaces 21631-19B10.

21631-19B11

$40.83

7

CLUTCH, ONE WAY | MODEL H/J

21273-01401

Unavailable

7A

CLUTCH, ONE WAY | MODEL K/L/M/N/P

21273-19B10

$181.53

8

SHOE CLUTCH ASS | MODEL H/J This part replaces 21500-18A02.

21500-19B01

Unavailable

8

CLUTCH ASSY,SHO | MODEL K/L/M/N/P This part replaces 21500-35B01.

21500-19B22

$249.00

9

NUT | MODEL H/J

09140-20013

$3.90

9

NUT | MODEL K/L/M/N/P

09140-18012

$7.55

10

LOCK WASHER

09164-20007

$5.00

11

GEAR ASSY, PRIMARY DRIVEN | MODEL H/J/K/L/M NT:69 This part replaces 21200-18A01.

21200-18A02

Unavailable

11

GEAR ASSY, PRIMARY DRIVEN | MODEL N/P,NT:69

21200-18A02

Unavailable

12

SPACER

09180-22035

$23.07

13

WASHER (22X36X1.0) This part replaces 08211-22361.

09181-22251

$4.12

14

HUB, CLUTCH

21410-18A00

Unavailable

15

NUT This part replaces 09140-20002.

09140-20001

$3.04

16

WASHER (ID:20.1) | MODEL H/J

09164-20007

$5.00

16

WASHER (ID:18.3) | MODEL K/L/M/N/P

09164-18001

$2.97

17

WASHER

08211-20323

$3.30

18

PLATE, DRIVE | MODEL H/J/K/L/M This part replaces 21441-41B01.

21441-22A01

$13.87

18

PLATE, DRIVE | MODEL N/P This part replaces 21441-41B02.

21441-22A01

$13.87

19

PLATE, DRIVEN This part replaces 21451-11900.

21451-01B40

$7.69

20

DISK, PRESSURE

21462-24501

$60.83

21

SPRING

09440-19017

$4.72

22

BOLT This part replaces 01517-06207.

01550-06207

$2.31

23

PLATE, RELEASE

21465-24500

$21.62

24

PIECE, PUSH

23121-18A03

Unavailable

25

BEARING (12X28X8) This part replaces 08110-60010.

09262-12001

$16.90

26

BALL GUIDE, OUTER

23231-18A00

Unavailable

27

BALL GUIDE, INNER

23211-18A02

Unavailable

28

BALL, RELEASE

23250-24500

Unavailable

29

BOLT, ADJUSTER

23223-18A00

Unavailable

30

WASHER (6.5X14X2.3) This part replaces 09160-06017.

09160-06127

$2.50

31

WASHER

09169-06046

$1.17

32

.NUT This part replaces 08310-22067.

08310-00067

$1.83

33

ARM, RELEASE

23220-18A00

Unavailable

34

BOLT | ?09100-06091 This part replaces 01107-06207.

01500-06207

$1.99

35

ARM, RELEASE NO.2 | MODEL J/K/L/M/N This part replaces 23225-18A00.

23225-18A01

Unavailable

35

ARM, RELEASE NO.2 | MODEL P

23225-18A01

Unavailable

36

BOSS, RELEASE NO.2

23224-18A00

Unavailable

37

WASHER, CLUTCH RELEASE This part replaces 08211-10201.

09181-10195

$2.00

38

SPRING

09443-06053

$1.53

39

PIN

09200-07005

Unavailable

40

PIN This part replaces 04111-16158.

04111-1620A

$0.96

41

BOLT

09119-06064

Unavailable

42

.NUT This part replaces 08310-11067.

08310-00067

$1.83

43

BOLT

09119-06063

Unavailable

44

NUT This part replaces 08313-21064.

08313-2006A

$1.97

45

WASHER

08212-06121

Unavailable

46

SEAL, BOLT

09168-06023

$2.01
