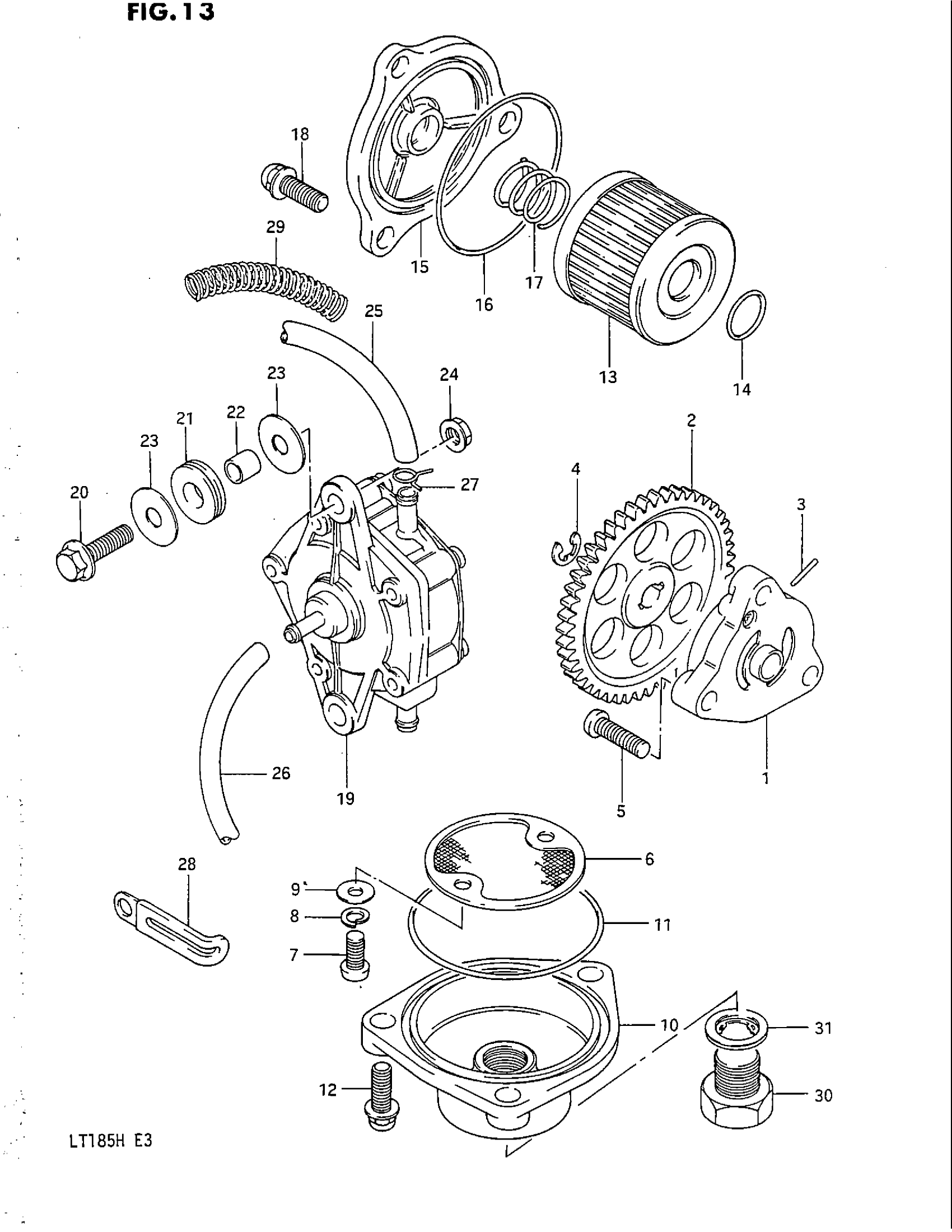

Suzuki LT185 (1987) OIL PUMP - FUEL PUMP Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 16400-18900.

16400-18901

Unavailable

2

GEAR, DRIVEN (NT:30)

16331-18900

Unavailable

3

PIN

09261-02008

$1.48

4

CIRCLIP This part replaces 08332-11068.

08332-1106A

$1.46

5

SCREW This part replaces 02112-06208.

02112-06207

$1.83

6

STRAINER, ENGINE OIL

16520-05202

$5.71

7

SCREW This part replaces 02112-05126.

02112-0512A

$1.49

8

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.89

9

WASHER, FRONT This part replaces 08322-21056.

08322-0105A

$1.89

10

CAP, OIL STRAINER This part replaces 16523-24400.

16523-18A00

Unavailable

11

.O RING (D:2.4,ID:60.5)

09280-60005

$2.95

12

BOLT

01547-06207

$2.09

13

FILTER, ENGINE OIL

16510-05240

$5.55

14

O RING (D:1.9,ID:13)

09280-13004

$2.25

15

CAP | MODEL E/F/G

16512-18900

Unavailable

15

CAP | MODEL H This part replaces 16512-18910.

16512-18900

Unavailable

16

O RING (D:2.4,ID:52.6)

09280-54001

$3.49

17

SPRING

09440-18002

$1.13

18

BOLT This part replaces 01547-06165.

01547-0616B

$2.50

19

PUMP ASSY,FUEL This part replaces 15100-18900.

15100-19B11

$84.65

20

BOLT This part replaces 01517-06258.

01550-06257

$2.38

21

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.74

22

SPACER (6.1X9X7.5)

09180-06038

$1.86

23

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.97

24

NUT This part replaces 09159-06017.

08319-31067

$2.09

25

HOSE(6X10X600) This part replaces 09343-06024.

09352-60104-600

$8.52

26

HOSE This part replaces 09343-05165.

09352-50005-00B

$12.95

27

CLIP

09401-10401

$1.49

28

CLAMP(L:80) This part replaces 09404-06418.

09404-06036

$1.81

29

SPRING This part replaces 09440-13018.

09440-13043

$7.72

30

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$4.86

31

GASKET

09168-14004

$1.69
