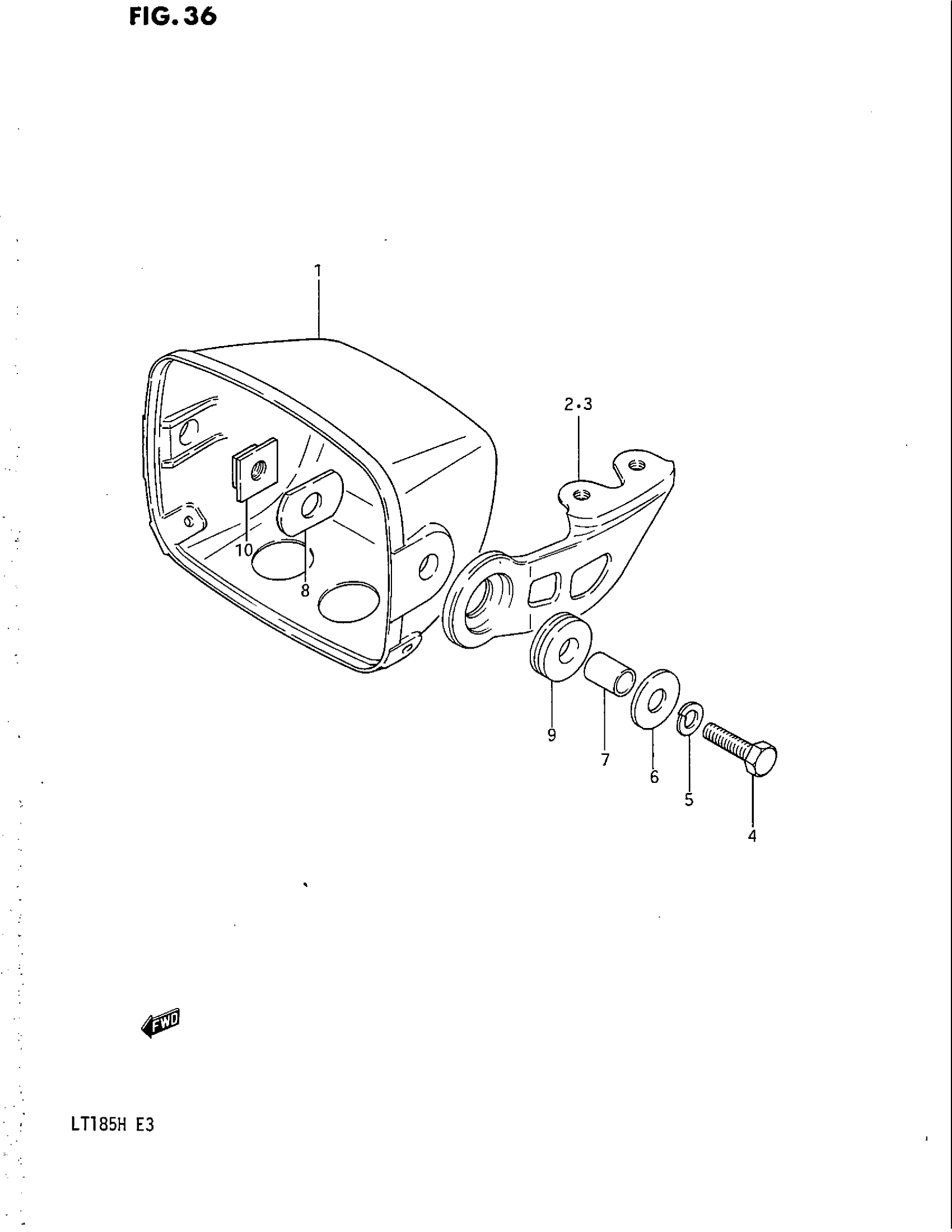

Suzuki LT185 (1987) HEADLAMP HOUSING (MODEL E) Diagram

#

Description

Price

1

HOUSING, HEADLAMP | BLACK

51811-24400-291

Unavailable

2

NO DESCRIPTION AVAILABLE | BLACK This part replaces 51530-24410-291.

51500-24810-291

Unavailable

3

BRACKET, HEAD LAMP, LH | BLACK

51540-24410-291

Unavailable

4

BOLT This part replaces 01107-08308.

01500-08307

$2.80

5

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

6

WASHER 6.5x26x1.2 This part replaces 09160-08068.

09160-08032

$2.28

7

SPACER This part replaces 09180-08120.

09180-08209

$2.80

8

CUSHION This part replaces 09329-12002.

09329-12005

$2.52

9

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.89

10

PLATE

51860-24400

Unavailable
