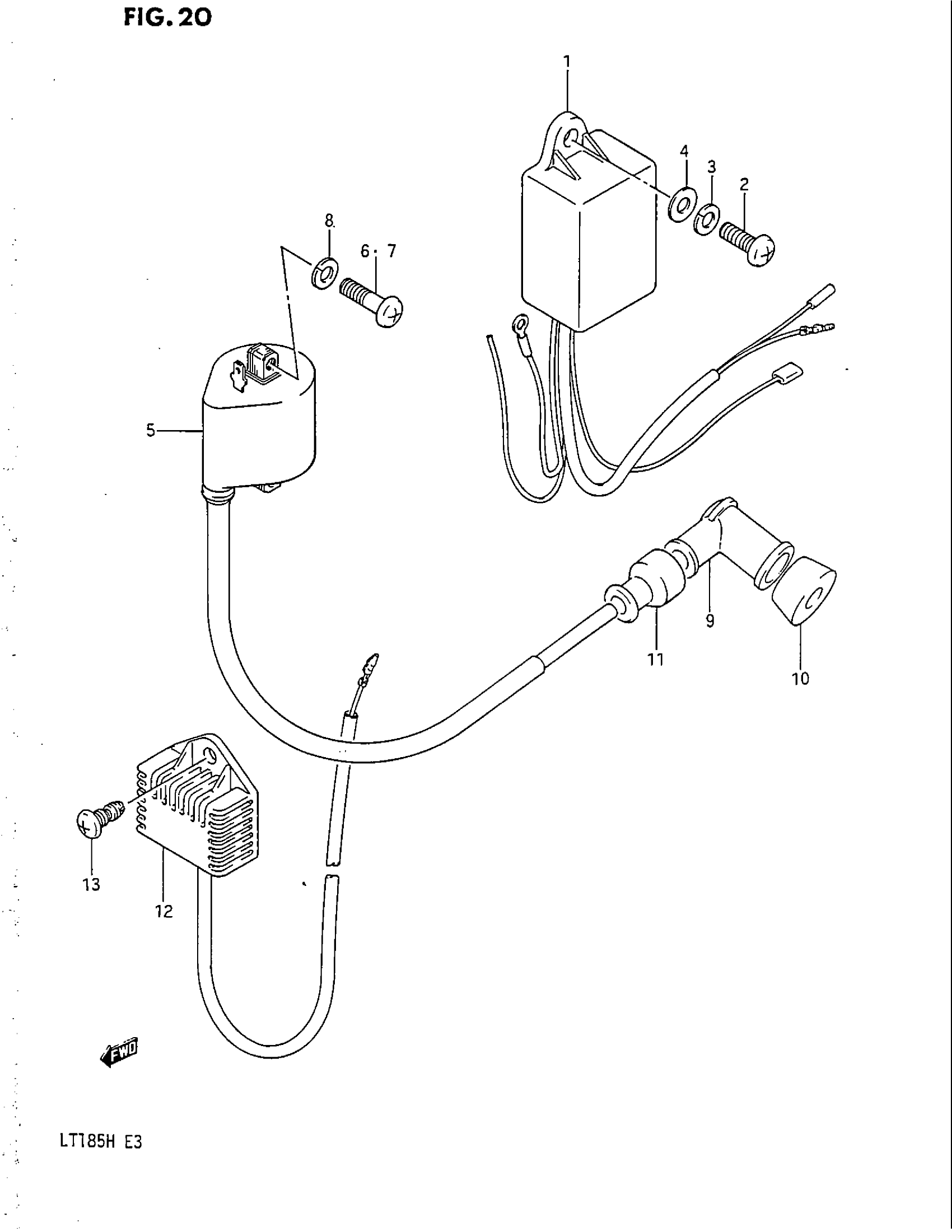

Suzuki LT185 (1987) ELECTRICAL Diagram

#

Description
Price

1

C.D.I UNIT

32900-24401

Unavailable

2

SCREW

02112-06167

$1.46

3

LOCK WASHER This part replaces 08321-21067.

08321-01067

$1.89

4

WASHER This part replaces 08322-21067.

08322-01067

$1.94

5

COIL ASSY,IGNIT This part replaces 33410-24310.

33410-09412

Unavailable

6

SCREW This part replaces 02112-06208.

02112-06207

$1.83

7

SCREW

02112-06167

$1.46

8

LOCK WASHER This part replaces 08321-21067.

08321-01067

$1.89

9

CAP, SPARK PLUG This part replaces 33510-22010.

33510-97313

$14.10

10

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.50

11

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.15

12

REGULATOR ASSY, VOLTAGE This part replaces 32500-24400.

32500-19A00

Unavailable

13

SCREW

09129-06004

Unavailable
